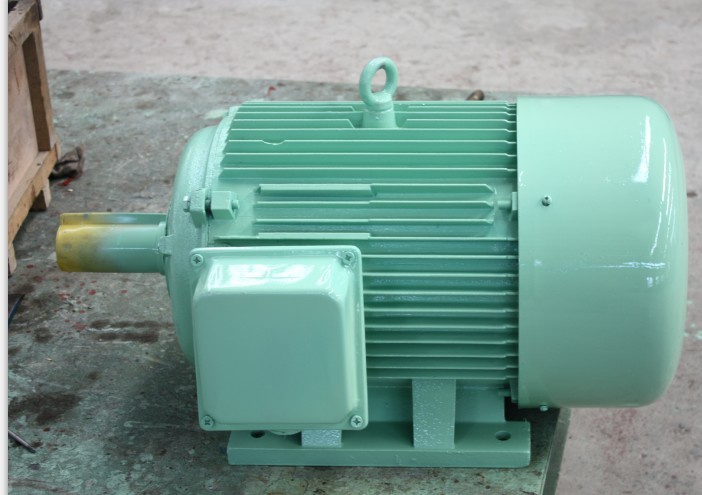

20kw 273rpm 50Hz Horizontal Permanent Magnet Generator

Name: 20kw 273rpm 50Hz Horizontal Permanent Magnet Generator
Brand: all-electronics-online.com
SKU: 728090845
Availability: InStock
Rating: 4.5 (24 reviews)

Price:	US $ 500-50000/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	XD-PMG
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Voltage:	Customize
Shaft:	Customize
Bearing:	Customize
Application:	Industrial
Operating Speed:	Constant Speed
Ventilation:	Protection Type

Product Description

We offer various kinds of permanent magnetic generator from 0.1KW-1500KW(vertical and horizontal), speed from 30rpm-6000rpm, output voltage and speed can customize according your request

Features of permanent magnet generator
*Low start up speed, Gearless, low RPM generator
*High standard components for use in hard and extreme
Environments for wind turbine
*High efficiency low mechanical resistance energy loss
*Design for reliable long operational lifetime

Power(KW)	AC voltage(V)	speed(RPM)	poles	frequency	Rated torque(NM)	Start torque(NM)	current(A)	efficiency	weight
8	220	125	28	29	611.2	12.2	22.6	93.80%	300
4	48	60	28	14	636.7	12.7	51.7	93.80%	260
20	400	273	22	50	699.6	14.0	31.0	93.80%	260

Xinda Green Energy Co., Limited established in 2008, and have over 10years experience in new energy market, our company located in Nanjing China, we specialized in handling the business of green energy as below

1) Horizontal wind turbine generator from 300W to 200kw, vertical wind turbine from 300W-20kw, both on grid and off grid and also wind solar hybrid system. Both with CE certificate.

2) various kind of permanent magnet generator(0.05-3000kw), speed from 20rpm-20000rpm, which is widely used for wind turbine, hydro turbine, tidal turbine, ocean turbine, free energy and so on, high speed motor from 6000rpm to 15000rpm we can custom generator according customer request about speed, voltage, frequency, shaft size, cooling method and so on

3)both vertical and horizontal, small hydro turbine system(low head and higher head), such as franics turbine, kaplan turbine, tubular turbine and so on, all hydro turbine system design according water head and flow, power from 300W to 10MW.

We have over 10years in the market, know well about new energy market and products. Low speed generator, small hydro turbine are popular used in Europe, America, South Africa and so on area

Our partner manufacturers are committed to continuously improving our operations and meeting the needs of our customers through innovation and new product development. We work closely with them to optimize the performance and cost-effectiveness of their processes.

Any question, welcome to contact us. We will answer your questions at any time!
