20V 9A Power Adapter for Liteon

Name: 20V 9A Power Adapter for Liteon
Brand: all-electronics-online.com
SKU: 838608515
Availability: InStock
Rating: 5 (61 reviews)

Price:	US $ 22.5-25/Piece
Min Order:	100/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PC-200090
Input Voltage:	100-240V
Output:	20V 9A 180W
Efficiency:	88% Min
Pfc:	>0.99
Material:	100% PC
Warranty:	One Year
AC Plug:	EU,UK,US,AU Plug or Your Demand
DC Power Cord:	0.9m,1.2m or Your Demand
Delivery Time:	7-9 Working Days
Usage:	Game Player

Product Description

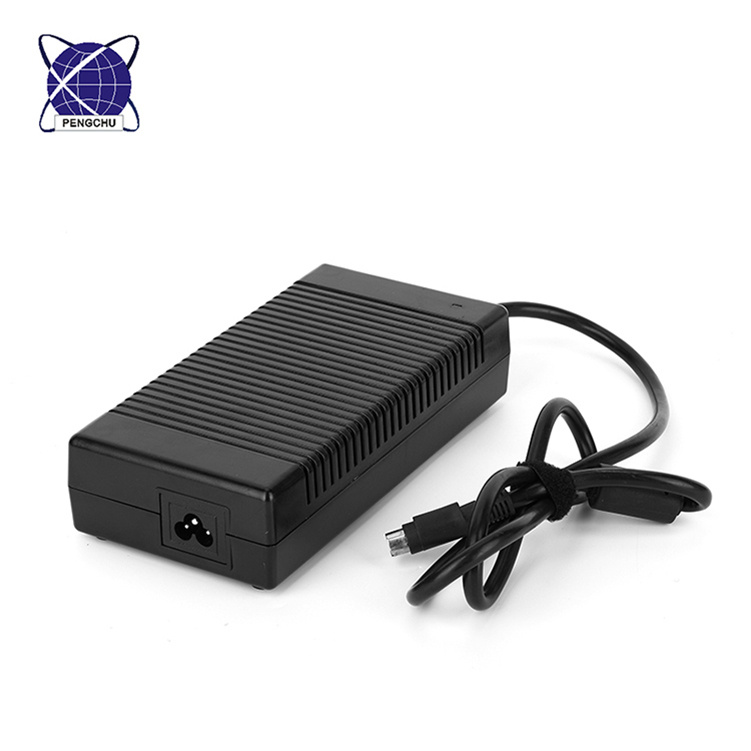

20v 9a power adapter for Liteon

Features:

(1)High efficiency, High reliability, Long life time

(2)Efficiency: 88% min
(3)PFC:>0.99

(4)Approved UL,CE RHOS FCC certification

(5)Warranty: 1 year

(6)Protection: Over current protection, Over voltage protection, Short circuit protection; Over temperature protection.

(7) Real power, high reliablity, long life
IEC320-C14, IEC320-C6 AC inlet optional
OEM/ODM welcome (special voltage & dc connector & logo & package).

(8)Suit for: Laptop adapter, LED, LCD, CCTV camera, Motor, Computer, etc.

Part. No.	PC-200090

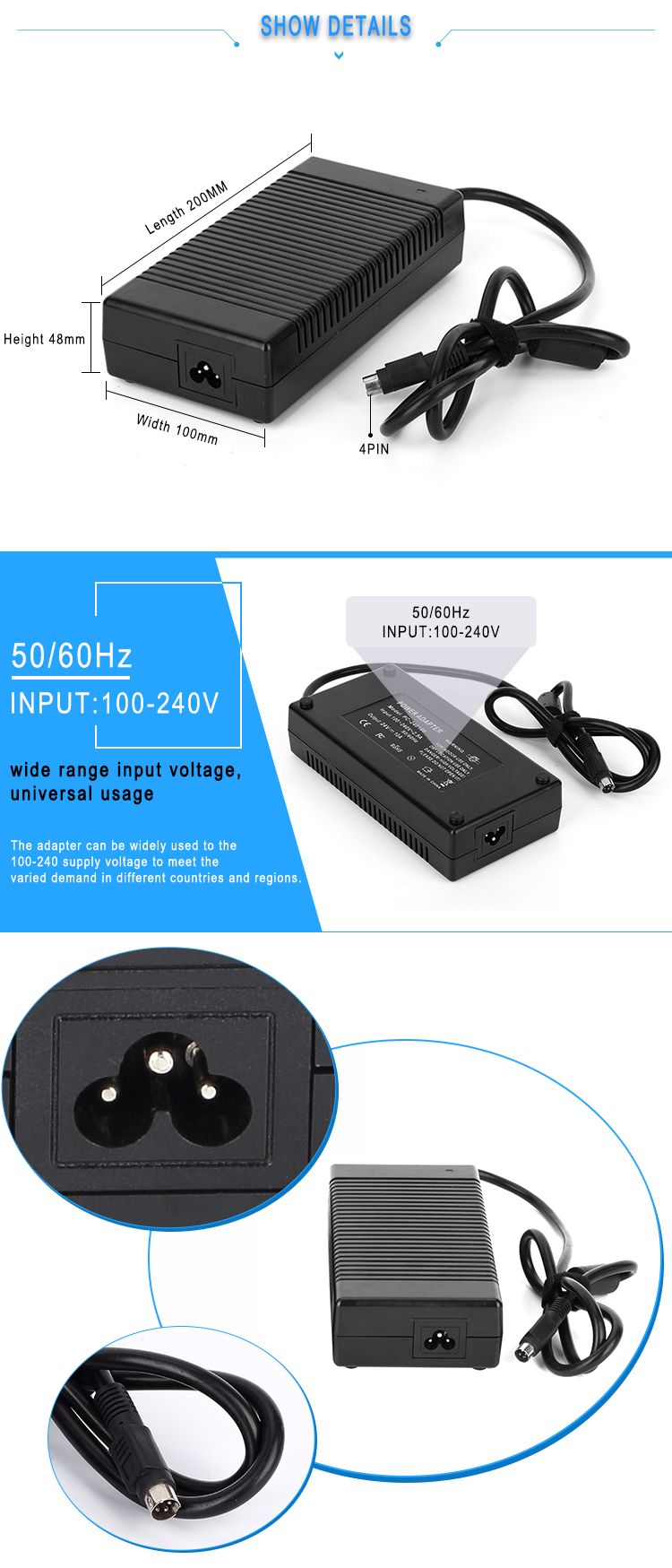

Product size	20010045 mm
AC Input	100~240V AC 50/60Hz Max:90~264V AC 47/63Hz
DC Voltage	20V
Rate Current	9A
Current Range	0~9A
Rate Power	180W
Material	100% PC
Certification	Approved CE ROHS FCC C-TICK certification
Rippe & Noise	<200MVP-P
Voltage Tolerance	±5%
Line Regulation	±1%
Load Regulation	±5%
Efficiency	>88%
Standard	UL, VI standard
Short Circuit Protection	Shall be protected when any output operation in circuit short condition, and shall be auto restart when the fault condition is removed.
Over Current Protection	130%~150%
Over Voltage Protection	115%~135%
Operating Temperature	-10ºC~50ºC(±10ºC)
Relative Humidity	20%~90% RH
Storage Temperature	-40ºC~80ºC(±10ºC)
DC Connector	3pin, 4pin, 6pin or Customized available
DC Cable	0.9m, 1.2m (Customized available)

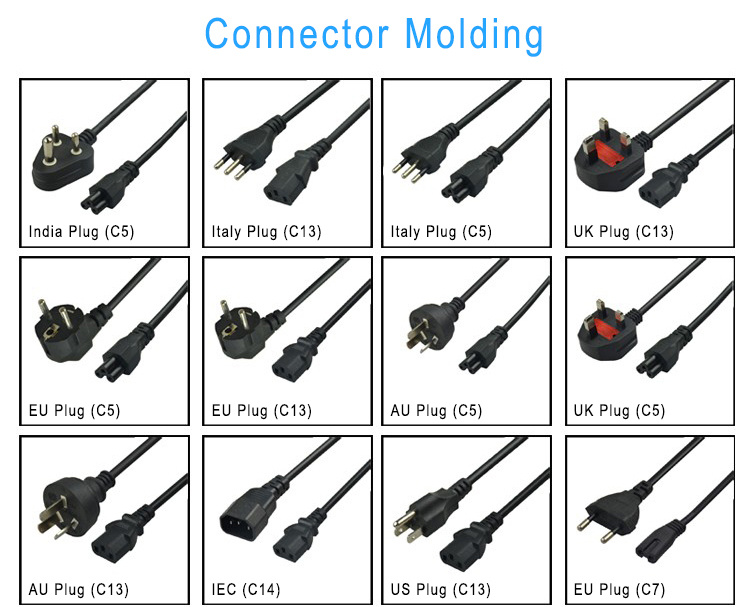

AC Cable	USA/UK/EU/AU/India Plugs(Customized available)

Product show:

Shenzhen Pengchu Industry Co., Ltd. Was approved to establish by Shenzhen Administration for Industry and Commerce in 2004 and has passed ISO9001: 2000 international quality system certification.

We specialize in developing, producing and exporting switching power supply and power adapters for laptops, as well as other related accessories. As a measure to enhance the quality of our products, we have introduced the most up-to-date testing equipment from overseas markets to ensure that each product undergoes strict quality control from design to packing.

All the products are 100% aging test. With CE, FCC, RoHS, CB, ETL, SAA, C-TICK, PSE ceritifcates. OEM and ODM orders are always welcome.

"Customer foremost" is our unchangeable service tenet. Several years' hard work brings us trust and confidence from our customers. Our sales network spreads to every corner of the world. We would like to work hand in hand with our business partners to create a more wonderful future.

Shenzhen Pengchu Industry Co., Ltd is always here to help you!
