20W 12V Constant Voltage Waterproof LED Driver for LED Modules

Name: 20W 12V Constant Voltage Waterproof LED Driver for LED Modules
Brand: all-electronics-online.com
SKU: 728121635
Availability: InStock
Rating: 4.8 (115 reviews)

Price:	US $ 4.92/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LPS-12E20B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output:	20W
Input Voltage:	170-250V
Output Voltage:	12V
Usage:	Construction
Output Type:	Single
Driving Method:	LED Regulator Voltage
Circuit Structure:	PWM Controlled
Power Supply Voltage:	AC170-250V
Brand:	Neonpro

Product Description

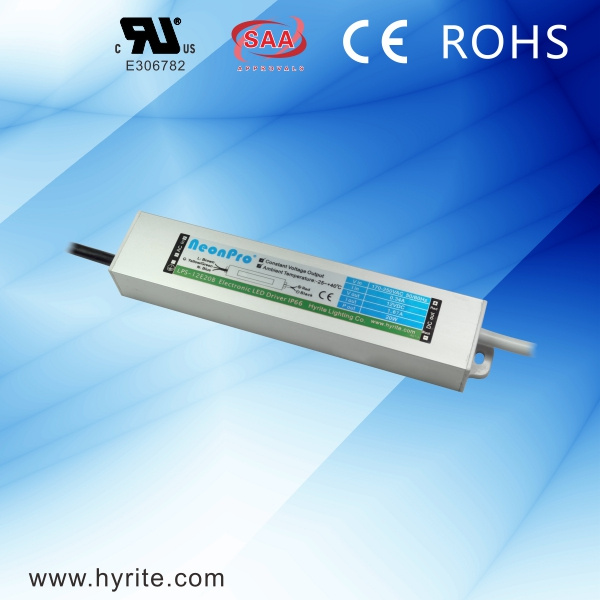

20W 12V Constant Voltage Waterproof LED Driver:LPS-12E20B

Brief Introduction
-External driver for LED module, strip, flex ribbon, bar light, spot light, down light, wall washer, panel light, -etc...
-Seamless aluminum case, fully sealed & waterproof, IP67
-Constant voltage output
-100% burn-in test

Technical Specs

Model no.	LPS-12E20B
Input voltage	170-250 VAC 50/60 Hz
Max. power	20 W max
Output type	Constant voltage
Dimming	No
Built-in active PFC	No
Power factor	Low
Efficiency	86%
Output voltage	12VDC ± 5%
Output current	1.5 A max
Overload protection	105%-120% hiccup mode, auto-recovery
Over voltage protection	120% rated output voltage
Withstand voltage	I/P~O/P:1.5kVAC, 1 minute
Operating temperature	-25~40 ºC
Installation	Outdoor waterproof
IP rating	IP 66
Cooling	Free air convection
Certificates/standards	CE
Connection input/output	Input:0.75mm²x3 (18cm) / Output:1mm²x2*3 (18cm)
Dimensions(LWH)	1203222 mm
Weight(kg)	0.23
Packing information	50 Pcs/ Carton, G.W 12.5KG

Detailed Pictures

Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.

The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.

Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.

Pls kindly check our main products below,

*IP67 Slim high efficiency constant voltage LED power supply (New)

*Traditional IP67 constant voltage waterproof LED power supply

*IP45 Rainproof constant voltage LED power supply.

*IP20 indoor type LED power supply.

*Constant Current LED Driver for LED lighting.

*Dimmable LED driver.

*LED module for Channel letter/light box.

Certificate: CE RoHS SASO SAA TUV UL approved

In addition we offer comprehensive OEM and ODM services to our partners.

We sincerely welcome your visiting and valued advices to us. Any questions from you, our experienced salesperson will feedback to you within 12 hours.
