20W 24V Constant Voltage Waterproof LED Driver with Ce, Bis

Name: 20W 24V Constant Voltage Waterproof LED Driver with Ce, Bis
Brand: all-electronics-online.com
SKU: 772470365
Availability: InStock
Rating: 4.9 (47 reviews)

Price:	US $ 4.5-4.9/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LPS-24E20C
Markets:	South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output:	20W
Input Voltage:	220V
Output Voltage:	24V
Power Factor:	0.65
Efficiency:	83%
IP Rating:	IP 67
Certificates/Standards:	Ce, TUV, Bis
Dimensions(LWH):	1363225mm
Operating Temperature:	-25~40°c
Installation:	Outdoor Waterproof
Usage:	Construction
Output Type:	Single
Driving Method:	LED Regulator Voltage
Circuit Structure:	PWM Controlled
Power Supply Voltage:	220V
Brand:	Neonpro

Product Description

20W 24V Constant Voltage Waterproof LED Driver with CE, BIS

1. Feature of Waterproof LED Driver:
--Slim body, special design for application with narrow space.
--Seamless aluminum housing, fully sealed and waterproof, IP67.
--High efficiency up to 90%, more electricity saving than regular power supply.

2. Application of Waterproof LED Driver:
LED Signage
LED Architectural Lighting
LED Industrial Lighting
LED Sports Lighting
LED Cobra Head Lighting
Used for LED module, strip, perforating lamp, pixel lamp, light bar, light box, wall washer, panel light, etc…

3. Specification of Waterproof LED Driver:

Model no.	LPS-24E20C
Input voltage	220 VAC 50/60 Hz
Max. power	20 W max
Output type	Constant voltage
Dimming	No
Built-in active PFC	No
Power factor	0.65
Efficiency	83%
AC inrush current(max.)	Cold start, 40A@230VAC
Output voltage	24VDC ± 5%
Output current	0.83A max
Overload protection	105% hiccup mode, auto-recovery
Over voltage protection	120% rated output voltage
Withstand voltage	I/P~O/P:1.5kVAC, 1 minute
Operating temperature	-25~40 ºC
Installation	Outdoor waterproof
IP rating	IP 67
Cooling	Free air convection
Certificates/standards	CE,TUV
Connection input/output	Input:0.75mm²x3 (18cm) / Output:0.75mm²x2*2 (18cm)
Dimensions(LWH)	1363225mm

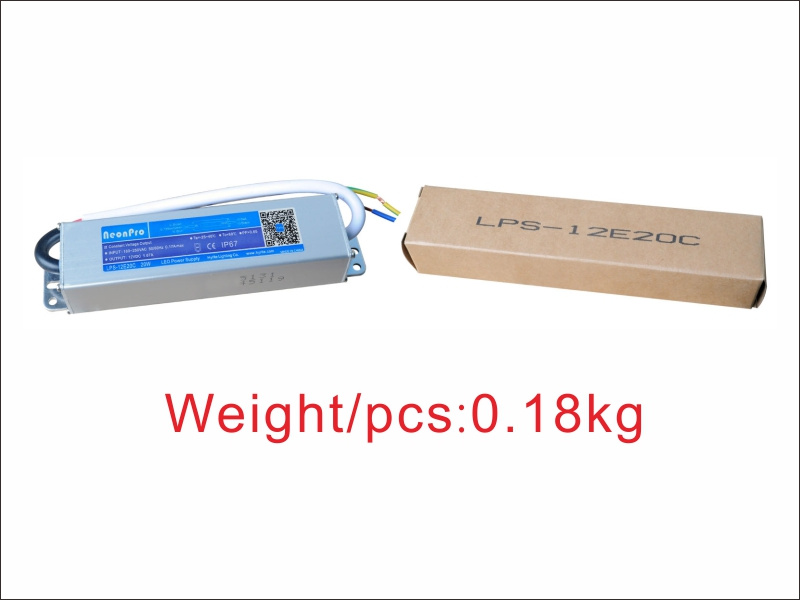

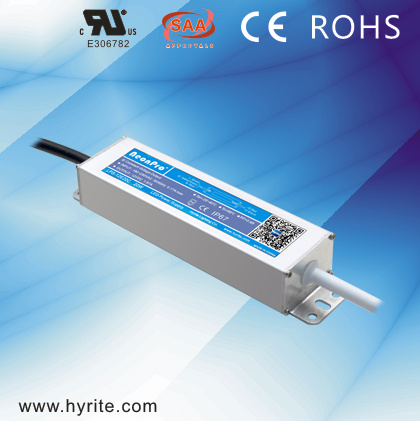

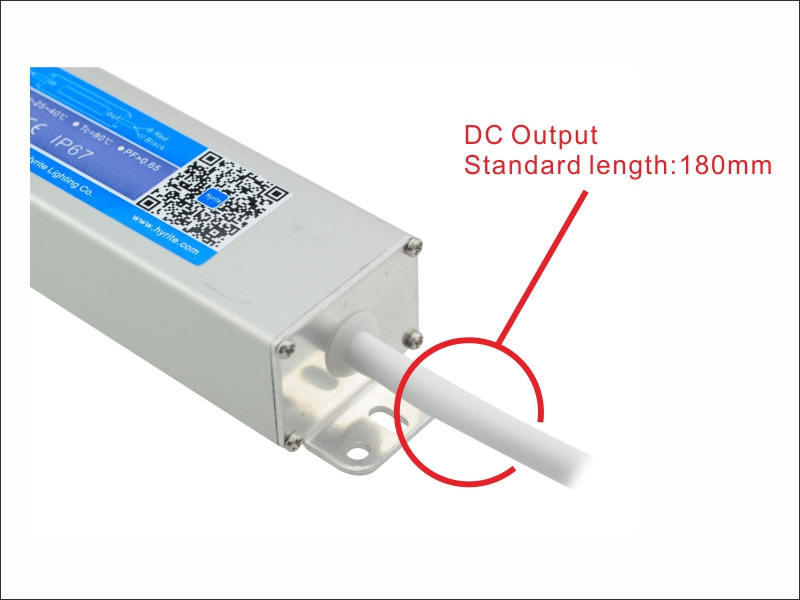

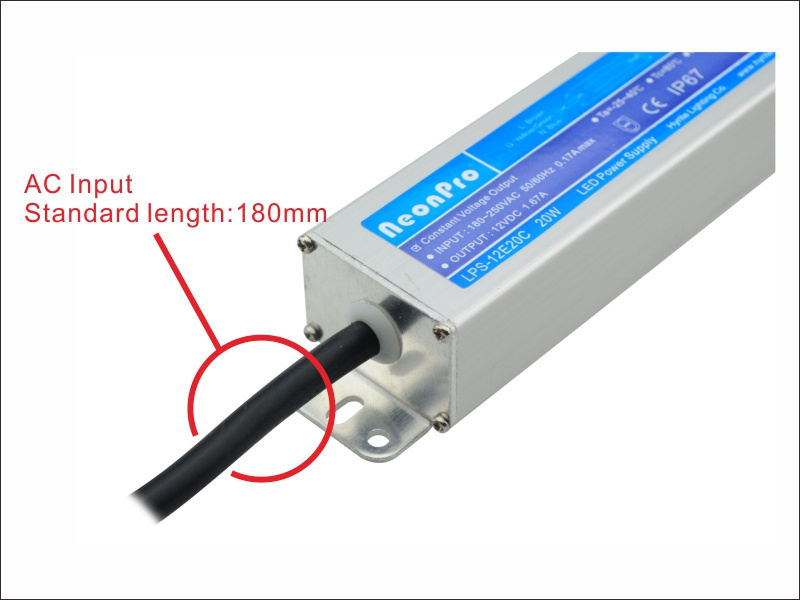

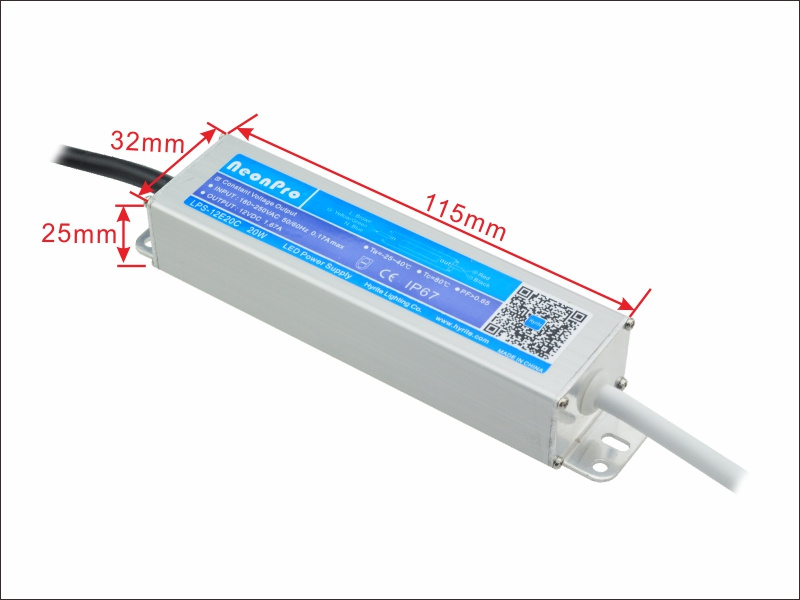

4. Product pictures of Waterproof LED Driver:

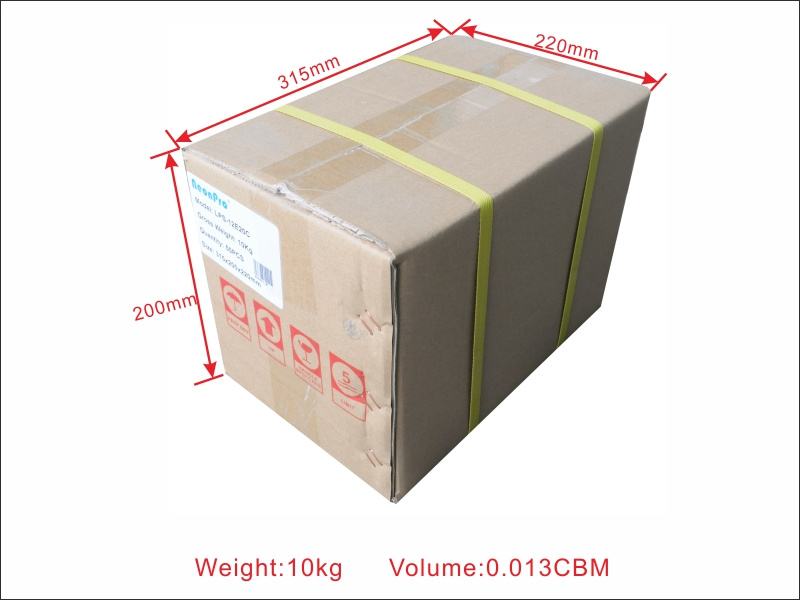

5. Packing information of Waterproof LED Driver:

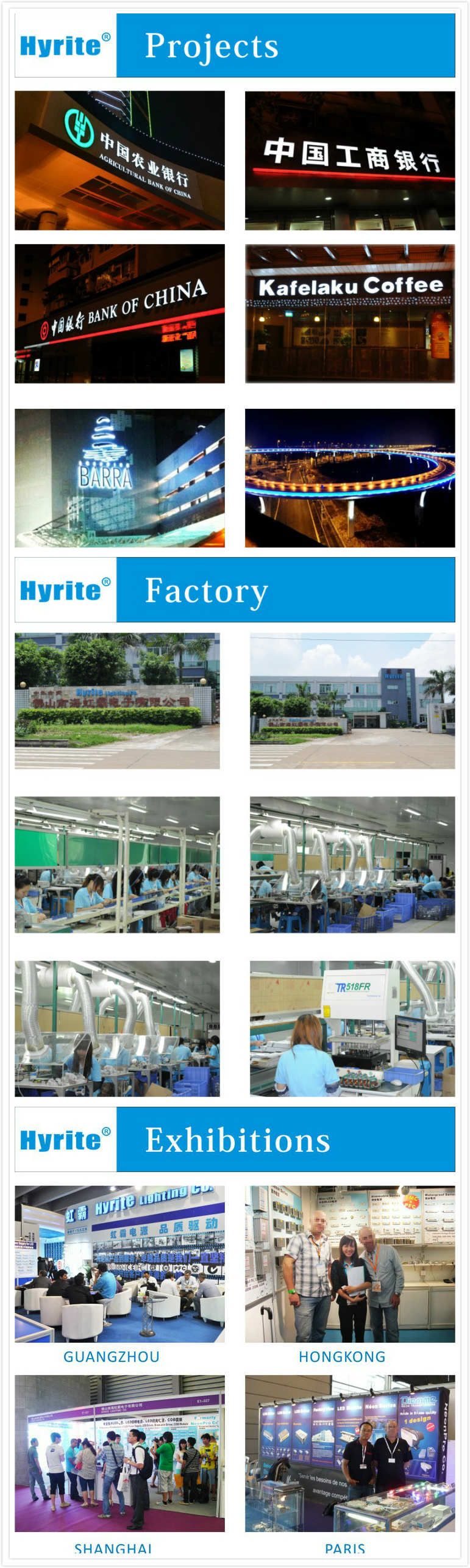

6. Project/ Factory/ Exhibition of Waterproof LED Driver:

Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.

The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.

Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.

Pls kindly check our main products below,

*IP67 Slim high efficiency constant voltage LED power supply (New)

*Traditional IP67 constant voltage waterproof LED power supply

*IP45 Rainproof constant voltage LED power supply.

*IP20 indoor type LED power supply.

*Constant Current LED Driver for LED lighting.

*Dimmable LED driver.

*LED module for Channel letter/light box.

Certificate: CE RoHS SASO SAA TUV UL approved

In addition we offer comprehensive OEM and ODM services to our partners.

We sincerely welcome your visiting and valued advices to us. Any questions from you, our experienced salesperson will feedback to you within 12 hours.
