| Prod Model: |
PEDB-400B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power: |
20W. 30W and 50W |
| Marking Area: |
110*110mm/ 175*175mm |
| Consumbles: |
No Any Consumbles |
| Certification: |
Ce, ISO 9001 |
| Laser Type: |
Fiber Laser |
| Control: |
Automatic |
| Condition: |
New |
| Usage: |
Metal, Plastic, Ceramic, Ring, Ear Tag |
| Key Words: |
Laser Marking Machine |
| Warranty: |
24 Months |
Product Description

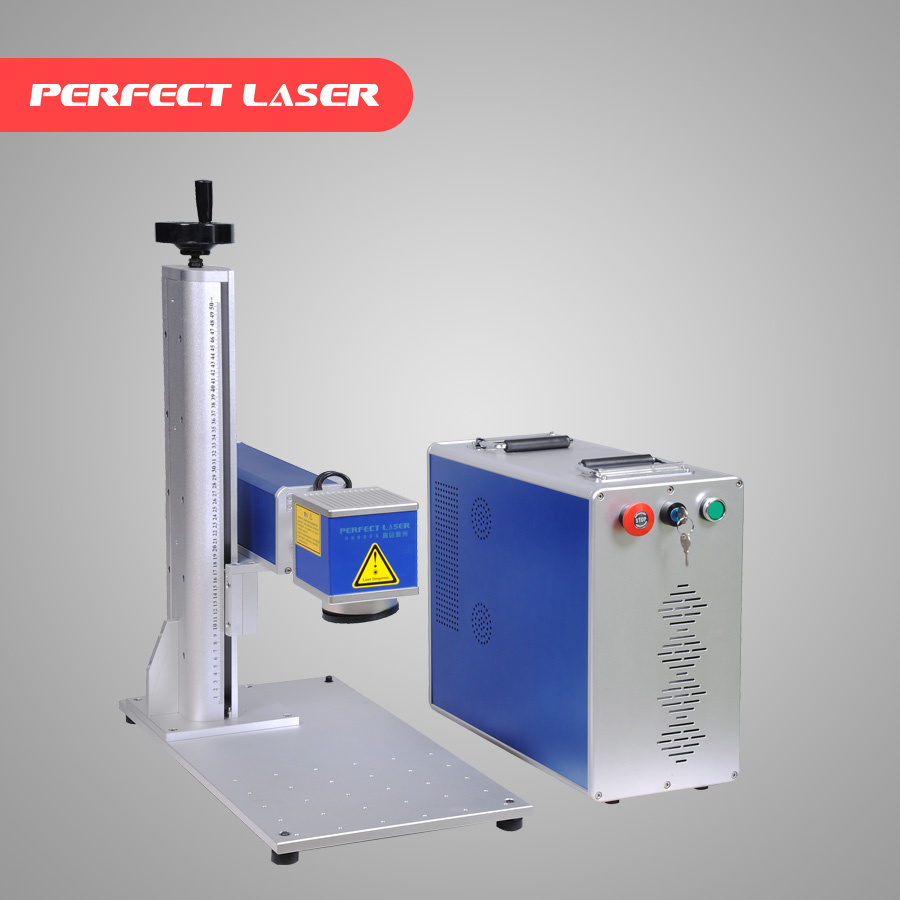

20W 30W 50W Plastic Ring Phone Case Fiber Laser Marking Machine For Metal(Model: PEDB-400B)
---Introduction of fiber marking laser machine:
Fiber Laser marking marking machine is widely used in marking engraving on metal and non-metal material. such stainless steel parts, aluminum phone cases printing, plastic parts, pen, annimal ear tag, nameplate and so on.
---Features of fiber marking laser machine:
1. 100000 Hours Long lifetime, No consumables, Free of Maintenance.
2. Best Marking Effect, Deep Marking, Higher Accuracy.
3. No need to adjust the laser path, Use Integrated Air Cooling.
4. Low Power Consumption, Small and compact
---Laser Marking Machine Working Video link:| Perfect Laser Fiber Laser Marking Machine PEDB 400A | https://youtu.be/R8axuwT_0Ys |
| Perfect Laser Fiber Laser Marking Machine PEDB 400C | https://youtu.be/xuFgAy1Razo |
| Perfect Laser Fiber Laser Marking Machine PEDB 400E | https://youtu.be/8REZ78EUpPk |
| Perfect Laser Fiber Laser Marking Machine PEDB 400B | https://youtu.be/rqcgbErwDAU |
| Perfect Laser Fiber Laser Marking Machine PEDB 400D | https://youtu.be/B7rKr-UdhzA |
---Equipment for fiber laser marking machine:
1. World famous laser source- fiber laser device .
2. Singapore import "Wavelength" Brand - Focus Lens
3.Taiwan MW Laser Power Supply.
4.Twiwan MW Laser Switch Power
5. Beijing Top Quality - Laser Galvanometer Scanning head
6. Perfect Laser - Red light pointer
7. Perfect Laser - Laser Controlling Cabinet
9. Perfect Laser - Latest V 2.12 version Laser Marking Software with powerful edit function.
10. Red light + Green Ligth conbinig mirror
11. 2 Fan, 1 Power Unit Jointer
12. One set of marking software backup
13. Sufficient fitting parts for using in guarantee period (12 month) totally Free of Charge
14. Life-long after-sales service. Free consultation & guidance support.
15. Fitting Parts (Free of Charge): 1 set of tools, 2 sets of laser beam detector
Laser Marking MachineTechnical data:
| Model No. | PEDB-400A | PEDB-400B | PEDB-400C | PEDB-400D |
| Type | Portable | Desktop | Colorful | Floor Stand |
| PC includes or not | Not includes PC | Includes PC |
| Laser Source |
| Brand | Max, Raycus, IPG and JPT |
| Mode of operation | Pulsed |
| Polarization: | random |
| Nominal average output power | 10W - 50W |
| Central emission wavelength: | 1060-1070 nm ,Q-switched operation Output power
adjustment range 10%-100% |
| Emission Bandwidth (FWHM) | <10 nm |
| Long-term average power instability | <5% |
| Pulse width, (FWHM) | 100 ns |
| Laser switching ON time | 180 μsec |
| Laser switching OFF time | 180 μsec |
| Pulse Repetition Rate* kHz | 20-80 kHz |
| Energy per pulse (PRR = 20 kHz) | 0.95 mJ |
| Typical beam quality, M2 | <1.8 |
| Output fiber delivery length | 3m |
| Operating voltage: | 220V |
| Max. Power consumption: | 600W |
| Net Dimensions: | 70*20*50cm | 80*38*72cm | 70*20*50cm | 143*62*101cm |
| Net Weight: | 44 kgs | 53 kgs | 44 kgs | 130 kgs |
| Gross Weight: | 60 kgs | 70 kgs | 60 kgs | 160 kgs |
Laser Marking Machine application field and material:| Electronic Components : | Resistance, capacitance, chips, printed circuit boards, computer keyboard. |
| Apparatus And Meter: | Panel signs, precision equipment ,etc., |
| Instrument: | Panel signs nameplates, precision equipment ,etc., |
| Hardware Tools : | Knives, tools, measuring tool, cutting tool, etc., |
| Automobile Parts : | Pistons, piston rings, gears, shafts, bearings, clutch, lights, etc., |
| Mechanical Parts : | Bearings, gears, standard parts, motors, etc., |
| Daily Necessities : | Handicrafts, zipper, key holder, sanitary ware, etc., |
| Jewelry Rings: | Jewelry, gold, silver,etc. |
| Food, drinking packing: | Plastic packings,etc. |
----Comparison with Ordinary Fiber Marking Machine
----Our after- sale service:
We have 3 year guarantee for the machine
We will enclose an "Instruction Book", "Operation Manual" and "Training Video" (in English version) to you, easily understood and handle by the customer.
---Contact us:
Perfect Laser Co., Ltd. (China)
Contact: Nicole / Sales Department
Tel: 0086-27-86791986 MP: 0086-13659886768 Fax: 0086-27-86775865
Add: HengRuichuangzhi Technology Park, No.13 YangQiaohu Road, Jiangxia District, Optical Village, Wuhan, Hubei, China(430200).
Looking forward to your inquiry!!!
Please advise us following inforamtion to recommend you most suitable machine:
1> What's kind of material do you want to mark? metal parts or non metal material?
2> What's the max working area do you need? we can provide you with 110*110mm, 175*175mm, and 220*220mm, 300*300mm, or customized as your demand.
