20W LED Used Compact Single Switching Power Supply
| Price: |
US $ 7.8-8/Piece |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
500/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
HSF-20W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power: |
20W |
| Single Output: |
Yes |
| Color: |
Silver |
| Shell Material: |
Alunimum |
| Output Voltage: |
5V, 9V, 12V, 15V, 24V |
| Safety Standards: |
EMC & LVD |
| Output Type: |
Single |
| Output Power: |
1 - 50W |
| Voltage Regulating Mode: |
Frequency Modulation Type |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Self-excited Switching Power Supply |
| Warranty: |
2 Years |
| Power Supplying System: |
Terminal Power Distribution Equipment |
| Certification: |
PSE |
| Input Voltage: |
90~264VAC, 125~373VDC |
Product Description

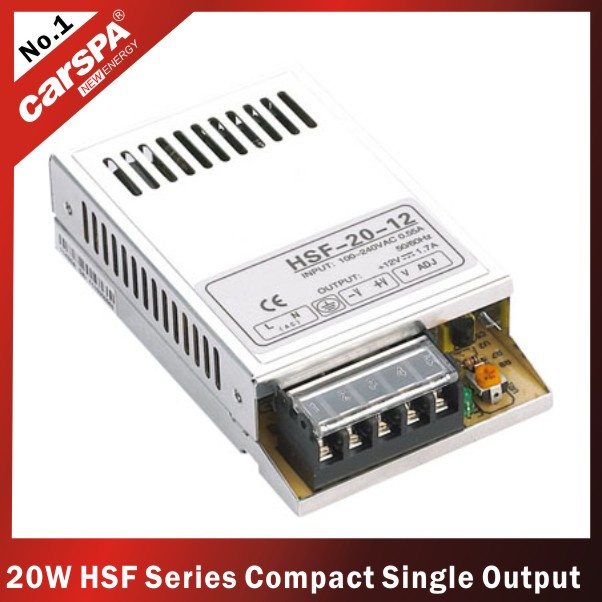

Compact Single Switching Power Supply HSF-20W
Features:
1. Universal AC input
2. Small volume, low weight, high efficiency
3. Protections: Short circuit/over load/over voltage/over temp
4. Cooling by free air convection
5. LED indicator for power on
6. 100% full load burn-in test
7. 2 Year warranty
|
HSF-20W |
|
Model |
HSF-20-5 |
HSF-20-9 |
HSF-20-12 |
HSF-20-15 |
HSF-20-24 |
|
Output |
DC voltage |
5V |
9V |
12V |
15V |
24V |
|
Voltage tolerance |
± 1% |
± 1% |
± 1% |
± 1% |
± 1% |
|
Rated current |
4A |
2.2A |
1.7A |
1.4A |
0.8A |
|
Current range |
0~4A |
0~2.2A |
0~1.7A |
0~1.4A |
0~0.8A |
|
Rated power |
20W |
19.8W |
20.4W |
21W |
19.2W |
|
Ripple& noise |
80mvp-p |
120mvp-p |
120mvp-p |
120mvp-p |
120mvp-p |
|
DC voltage ADJ. range |
-9%~+10% |
± 10% |
± 10% |
± 10% |
± 10% |
|
Input |
Voltage range |
90~264VAC, 125~373VDC |
|
Frequency |
47~63Hz |
|
AC current |
0.45A/115VAC, 0.25A/230VAC |
|
Efficiency |
75% |
78% |
78% |
78% |
80% |
|
Inrush current |
cold start current 15A/115VAC, 30A/230VAC |
|
Leakage current |
< 0.5mA/240VAC |
|
Protection |
Overload |
above 115%~135% rated power |
|
protection type: hiccup mode, auto-recovery after fault condition is removed |
|
Over voltage |
6.8~8.2V |
12.6~14.2V |
15.6~17.8V |
18.6~20.8V |
30.6~33.2V |
|
protection type: hiccup mode, auto-recovery after fault condition is removed |
|
Over temperature |
when temperature of transistor inner node is over 150º C |
|
protection type: hiccup mode, auto-recovery after temperature goes down |
|
Environment |
Working temp. humidity |
-10º C~+60º C, 20%~90%RH |
|
Storage temp. humidity |
-20º C~+85º C, 10%~95%RH non-condensing |
|
Withstand vibration |
10~500Hz, 2G 10min/1cycle, period for 60 minutes, each axes |
|
Safety |
Withstand voltage |
I/P-O/P: 1.5KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC |
|
Isolated resistance |
I/P-O/P, I/P-FG, O/P-FG: 100M ohms/500VDC |
|
Fit standard |
Safety standard |
Fit UL1012 |
|
EMC standard |
meet EN55022, CLASS A |
|
Others |
Dimension |
97*58*25mm (L*W*H) |
|
Weight/packing |
0.11kg/160pcs/18.5kg/0.033 m³ /1.17CUFT |
|
Note |
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25º C of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance: includes set up tolerance, line regulation and load regulation. |
