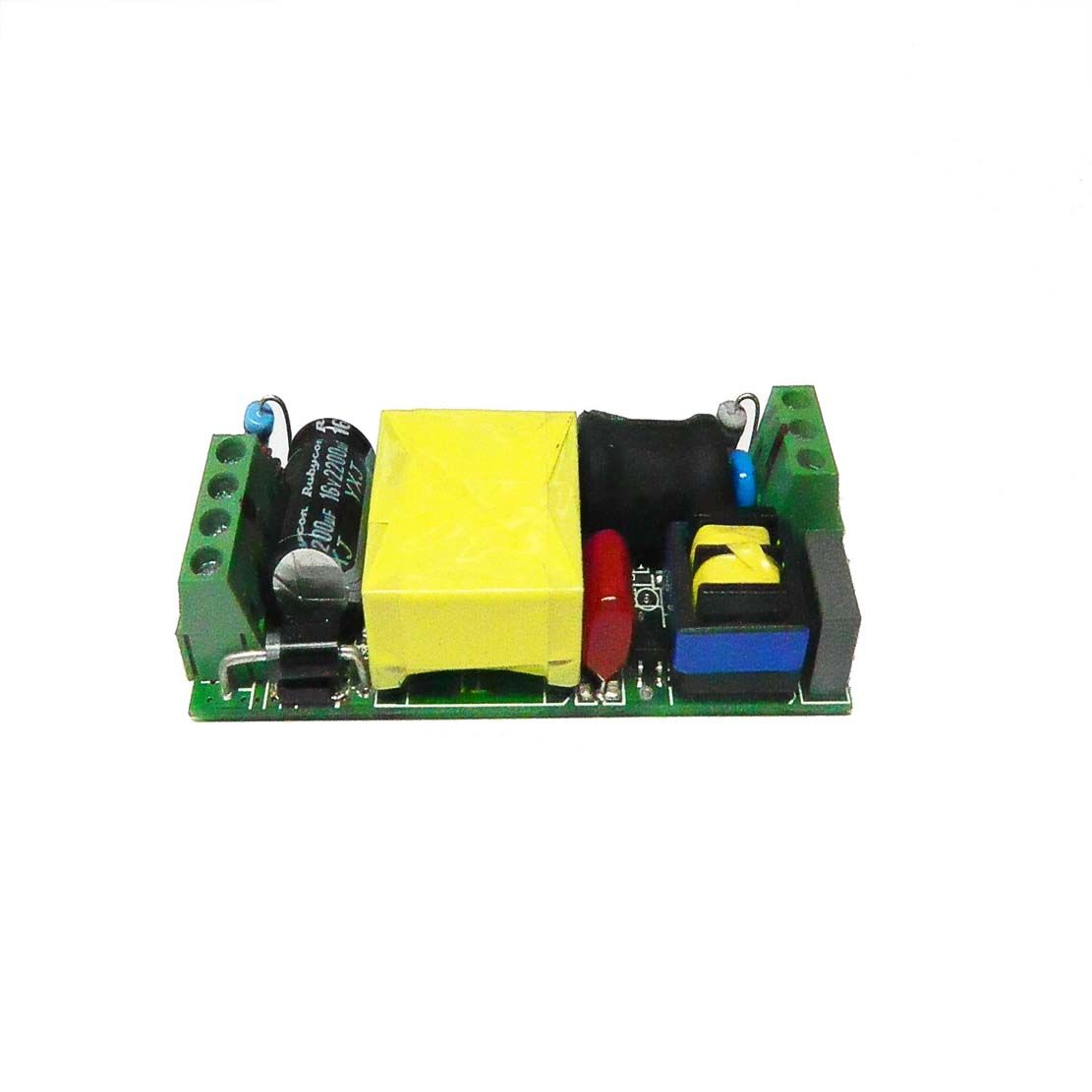

20W No Flicking No Noise Triac Dimmable LED Driver

Prod Model:	Triac-20W
Usage:	Light
Output Type:	Single
Driving Method:	LED Regulator Voltage
Circuit Structure:	Conventional Step-down Transformer
Certification:	SAA

Product Description

20w no flicking no noise triac dimmable led driver
5 years warranty.dimming range :5%-100%, passed with SAA TUV CE ROHS certificates, convenient for lighting design due to its plat case.One channel dimmable led driver fit for LED module. Compliant with SELV standards with output voltage≤60DC,efficiency>85%,Fit for class I protection lighting fixture.compatible with treaty of DALI IEC62386-102.

Constant Current:(20w no flicking no noise triac dimmable led driver)
Model No.Triac-20W
Input Voltage Range:200-240V/AC&90-130V/AC
AC Frequency:48-62Hz
output model: constant current
output current :350ma 500ma 700ma 900ma
no load voltage :60Vmax
on load voltage :58V 40V 30V 22V
output power :12w
power factory >0.95
efficiency :80%-86%
dimension 107*42*23mm


Constant Voltage:(20w no flicking no noise triac dimmable led driver)
Model No.:Triac-20W
Input Voltage Range:200-240V/AC&90-130V/AC
AC Frequency:48-62Hz
output model :constant voltage
output current :1.5A/0.83/
no load voltage 12V.24V.
on load voltage 12V/24V
output power 20w
power factory >0.95
efficiency 80%-86%
dimension 107*42*23mm

Trade Terms

1. Payment: T/T, Western Union and paypal;
2. Production lead time :500PCS: about 10 workdays, 1000PCS: about 15 workdays;
3. Sample can be delivered within 3days;
4. Shipping freight are quoted under your requests;
5. Shipping port: Shenzhen, Mainland China;
6. Discounts are offered based on order quantities;
7. MOQ: 1 pcs.

Packaging & Shipping
1. Shipping freight are quoted under your requests;
2. Shipping port: Shenzhen, Mainland China;
3. Bubble bag ,inner box,and carton etc,
  Neutral Package, or customer color box package upon requirements.


Package Contents:
1*Transformator LED Driver
