20W Portable Fiber Laser Marking Machine

Name: 20W Portable Fiber Laser Marking Machine
Brand: all-electronics-online.com
SKU: 797215275
Availability: InStock
Rating: 5 (75 reviews)

Price:	US $ 3300/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PEDB-100
Average Output Power:	10W or 20W
Wavelength:	1064nm
Pulse Repetition Frequency:	20-100kHz
Marking Depth:	≤1.2mm
Output Beam Quality:	<1.5m²
Min. Focusing Spot:	0.005mm
Min. Character Height:	0.15mm
Max. Marking Speed:	12000mm/S
Re-Precision:	±0.001mm
Cooling:	Air Cooling

Product Description

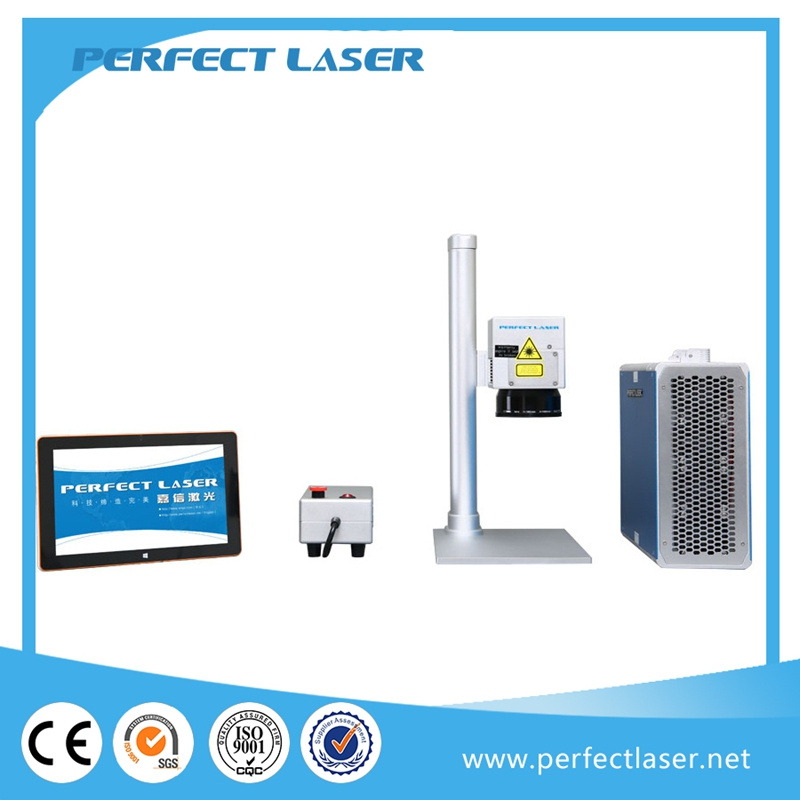

PEDB-100 Mini Fiber Laser Marking Machine

---Brief Introduction
The mini fiber laser marking machine offers a complete solution for fast speed marking and high precision on metal and some nonmetal materials like some hard plastics, the mini fiber laser marking machine meets user requirements of the various elaborate patterns in tiny surface, this mini fiber laser marker is regarded as a "King Laser Marker".
Adopt the fiber laser source from Germany technology, this type of small laser marking machine is worldwide accepted in the market of less weight metal marking. The machine also can be called mini fiber laser marking machine,small laser marking machine,mini fiber laser marker,small fiber laser marker,mini fiber laser engraver,mini fiber laser engraving machine,laser engraving machine metal.

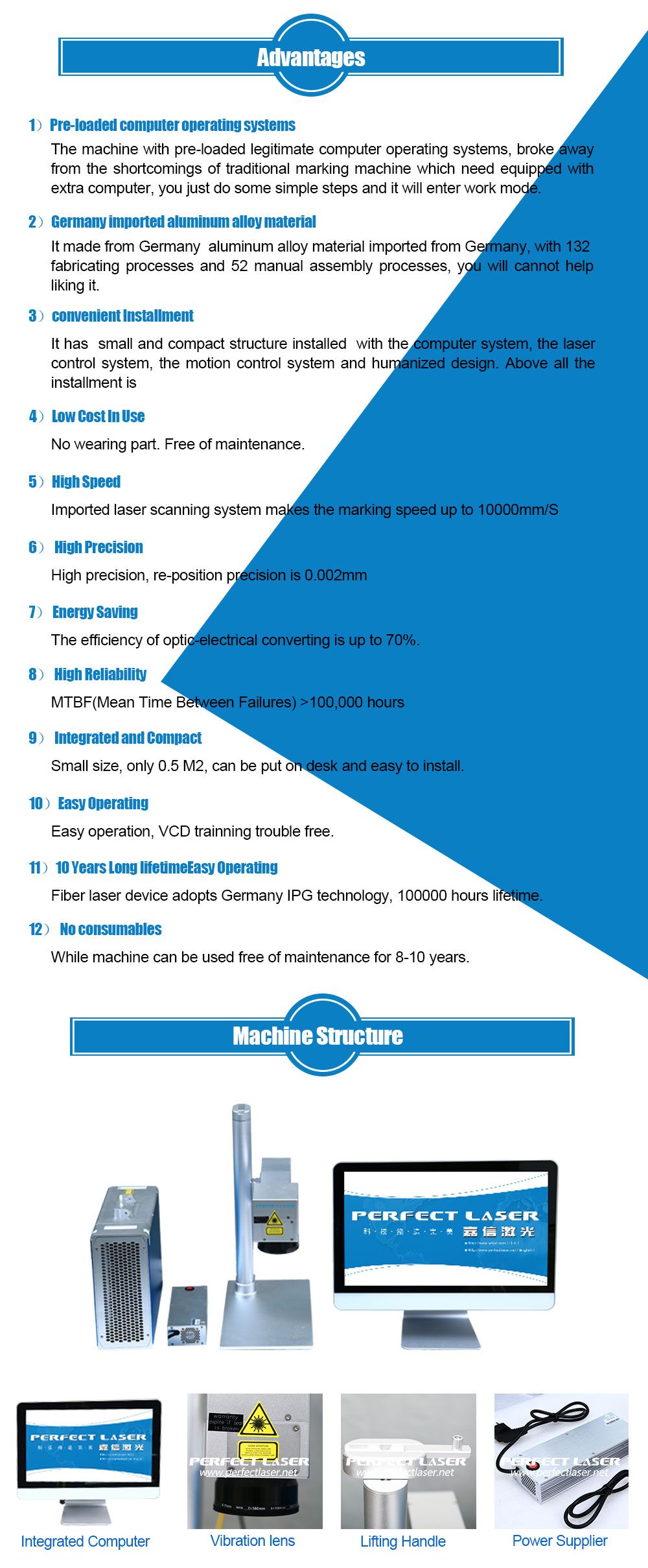

---Features:
1) This small fiber laser marker with pre-loaded legitimate computer operating systems, avoid from the shortcomings of traditional mini laser marking machine which need equipped with extra computer, just do some simple steps and mini fiber laser engraver will enter work mode.
2) mini fiber laser marking machine made from Germany aluminum alloy material imported from Germany, with 132 fabricating processes and 52 manual assembly processes, you will cannot help liking the mini fiber laser marking machine.

3) The mini fiber laser engraving machine has small and compact structure installed with the computer system, the laser control system, the motion control system and humanized design. Above all the installment is convenient.
4) Low Cost In Use laser engraving machine metal has not wearing part. Free of maintenance.
5) High Speed Imported laser scanning system makes the small laser marking machine's marking speed up to 10000mm/s.
6) High Precision High precision, re-position precision is 0.002mm.
7) Energy Saving. The efficiency of optic-electrical converting is up to 70%.
8) High Reliability MTBF(Mean Time Between Failures) >100,000 hours.
9) Integrated and Compact Small size, only 0.5 M2, can be put on desk and easy to install.
10) Easy Operating, Easy operation, VCD training trouble free for the small laser marking machine.
11) 10 Years Long lifetime.The mini fiber laser marking machine adopts Germany technology, 100000 hours lifetime.
12) No consumables. While this laser engraving machine metal can be used free of maintenance for 8-10 years.

---Technical Parameters

Item	PEDB-100 (10w)	PEDB-100 (20w)
Output power	10w	20w
Central wavelength	1064±4nm	1064±4nm
Polarization	Random	Random
Single pulse power	0.5~0.6mJ	0.8~1.0mJ
Beam quality	<1.5m2	<1.7m2
Facular diameter	6~8mm	7~9mm
Power stability	<5%	<5%
Frequency adjusting range adjustable range	20~80kHz	20~80kHz
Pulse breadth	80~140ns	80~140ns
Pulse adjusting range	5~100%	5~100%
operating voltage	100~240VAC	100~240VAC
Fiber Length	1.5m	1.5m
Cooling mode	forced air	forced air
Operation temperature	0~35ºC	0~35ºC
Operation humidity	10~95	10~95
Storage temperature	-10~60ºC	-10~60ºC
Marking Format	Graphics, Text, Bar Codes, QR Code, Serial Number,Serial number,etc.

---Product Application
1. Replace ink and paint: labels of cellphone battery, panels, cellphone keys, small
accessories, etc..
2. Ceramic and EP materials: electronic components package, IC, etc..
3. Plastic products: numerical order and LOGO of electrical enclosures and
electronic products.
4. Metal surface: stainless steel, copper, aluminum, oxidation, phosphatization and
electrocladding. It's commonly used in hardware, daily necessities, electrical
enclosures, cell phone cases, etc..

---Product Advantages
1. High definition: Resolution is up to 1 micron and is at least 10 times higher than
traditional machines.
2. Less power consumption: It's 1 / 25 ~1 / 10 of traditional laser markers.
3. High speed: 3~5 times faster than traditional laser markers.
4. High stability: higher than any other similar ones.
5. Long service life: 10 times longer than traditional ones.
