20W Round Dali Dimmable LED Driver with High Quality

Prod Model:	round-dali-20W
Dimmable:	Dali Dimmable
Protection:	Short Circuit
Usage:	Light
Output Type:	Single
Driving Method:	LED Constant Current
Circuit Structure:	Electronic Step-down Transformer
Certification:	SAA

Product Description

Round shape constant current led driver for led downlights,passed with ce rohs tuv ETL certificates.
20W Round not dimmable led driver with high quality
Features:constant current

Model No.	DR-CC-20
nput Voltage Range	100-240V/AC
AC Frequency	48-62Hz
output mode	constant current
output current	350/500/700/900 ma
on load voltage	65/50/40/30
output power	20w max
power factory	>0.95
efficiency	80-86%
dimension	D65*25  (mm)



Specifications:

Environmental Specifications
Operating Temperature	-25~+55°C
Storage Temperature	-40~+70°C
Thermal Dissipation	Nature
Relative Humidity	5-95%
Isolation     Voltage	In/Out 3000VAC
Vibration	5-55Hz/2g,30 Mimutes
Life time	50000Hours,at TC max



FEATURES

Constant current mode

Advanced patent dimming technology by cutting phase in the world

Suitable for leading edge or tailing edge dimmers

Short cicuirt&Over current and Over voltage protection

Recycle & no hazardous substance

Double Isolation design for human safety

Fully isolated plastic case and conveniently connected terminals(screws)




We are professional led power supply manufacturer located in Shenzhen,China,

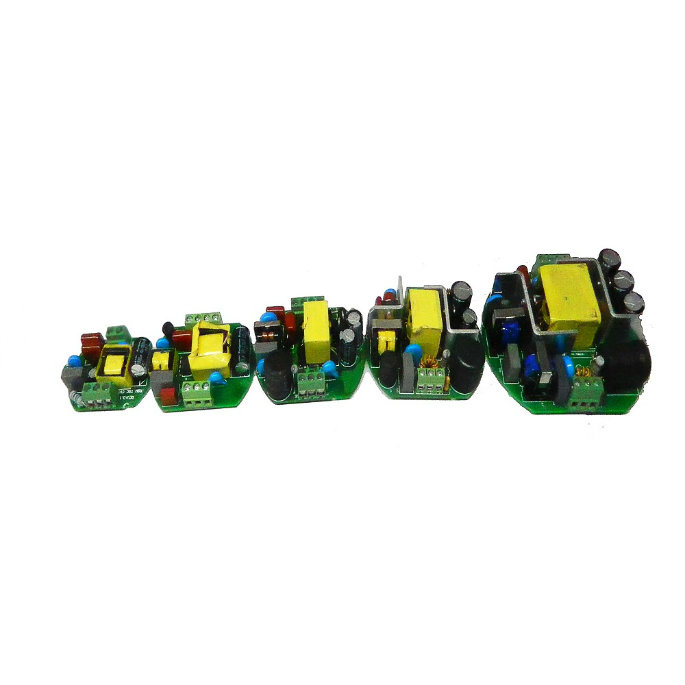

We can supply 9w 12w 20w 30w 40w 60w round shape led driver


Trade Terms

1. Payment: T/T, Western Union and paypal;
2. Production lead time :500PCS: about 10 workdays, 1000PCS: about 15 workdays;
3. Sample can be delivered within 3days;
4. Shipping freight are quoted under your requests;
5. Shipping port: Shenzhen, Mainland China;
6. Discounts are offered based on order quantities;
7. MOQ: 1 pcs.

Packaging & Shipping
1. Shipping freight are quoted under your requests;
2. Shipping port: Shenzhen, Mainland China;
3. Bubble bag ,inner box,and carton etc,
  Neutral Package, or customer color box package upon requirements.


Package Contents:
1*Transformator LED Driver
