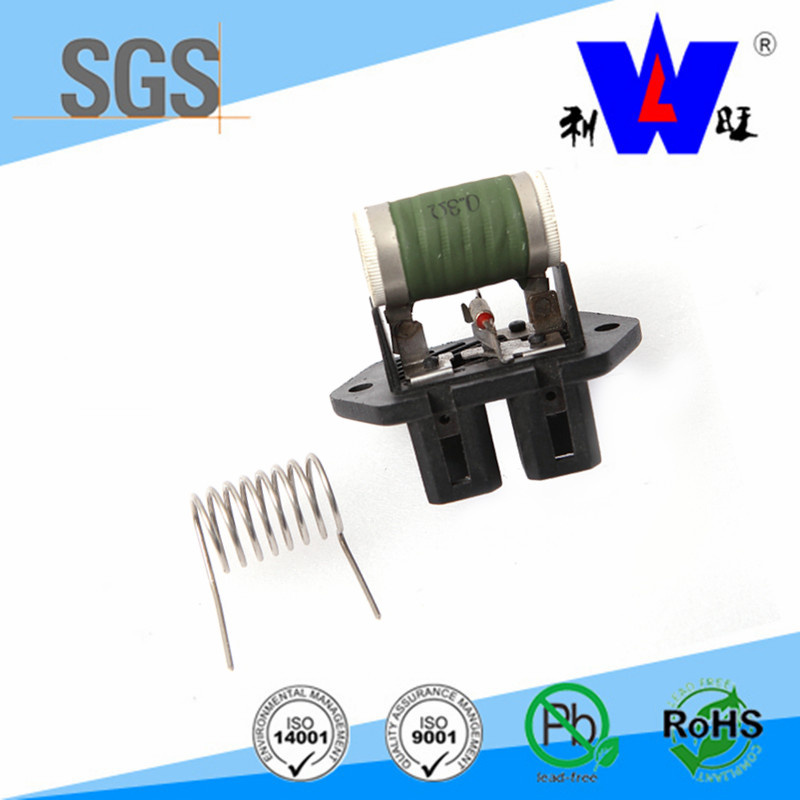

20W Rxc Vehicle Lgnition Wire Wound Resistor

Name: 20W Rxc Vehicle Lgnition Wire Wound Resistor
Brand: all-electronics-online.com
SKU: 823886825
Availability: InStock
Rating: 4.9 (138 reviews)

Price:	US $ 0.01-5/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	RXC
Product Name:	20W Rxc Vehicle Lgnition Wire Wound Resistor
Quality Certification:	ISO9001: 2008
Environmental Certification:	ISO14000
Rated Power:	20W
Tolerance:	5%
Resistance:	Fixed Resistor
Function For Resistance:	Protective Resistor
Installation:	DIP Resistor
Material:	Wire-wound Resistor
Package Type:	Throught Hole
Type:	Auto Resistor
Application:	Auto
Brand:	Liwang

Product Description

Performance of resistor:

rated power	20W
rated resistance	4Ω
tolerance	±5%

Requirement:

Item	Tested	Requirement
Insulauon resistance	DC500V1minute	≥100MΩ
Dielectric strength	AC1500V1minute	No damage Δ≤R±(1%R+0.05Ω)
Short time overload	10 rated Power 5s	No damage Δ≤R±(2%R+0.05Ω)
Terminal strength Resistance to soldering heat	20N 10S 260ºC 5s	No damage Δ≤R±(1%R+0.05Ω) Δ≤R±(1%R+0.05Ω)
Vibration	10-500Hz 0.75mm x,y,z all 6h	Δ≤R±(1%R+0.05Ω)
Solder ability	235ºC±5ºC 2s+0.5s	Covered with new solder by 95% at least
Moisture resistance	RH90-95% 40ºC 96h	Δ≤R±(5%R+0.1Ω) Insulauon resistance>100MΩ
Load life	25ºC 1.5h on 0.5h off 1000h	Δ≤R±(5%R+0.1Ω)
Temp.coefficient		≤±250ppm/ºC

Our Company:

Advantage of our company:
1. Competitive price
2. High stability and high quality
3. Prompt shipment
4.wide range products
5.quick response to the needs of our customers
6.professional & experienced management team
7.on-time delivery

Selling point:
1)prompt delivery
2)variety of packing: Bulk and carton
3)stable performance, extensive resistance
4)factory direct price
5)none forbidden
6)all materials&machines importer from holand

Don't hesitate to contact us if you have any interest in our products,welcome to provide us your specification,we will submit the best quotation shortly.

It's our pleasure to be on service of you.Thanks.

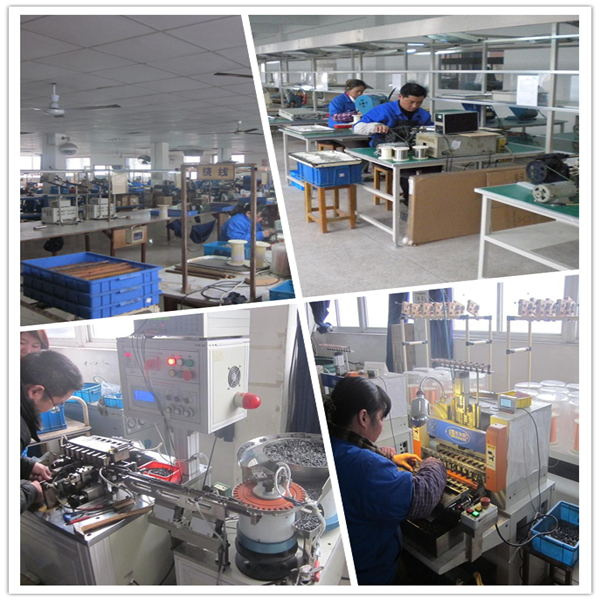

Changzhou Southern Electronic Element Factory Co., Ltd. is located in China, with a long history. We enjoy convenient transportation by highway, railway and airway. It takes only one and half hours' Drive to Shanghai or Nanjing.

Our company was founded in 1989, and currently we employ more than 300 people, including 60 professional technicians, covering an area of 10, 000 square meters, with a construction area of more than 5000 square meters. Our main products are wirewound resistors, wirewound resistor fuses, membrane fuse resistors, fixed inductors, filters, ferrite transformers, ring-shaped coils, fuse dedicated energy-saving lamps and UL fuses. Our annual output is 200 million resistors, 200 million transformers, 100 million coils and 200 million fuses, which are mainly used for household appliances, communication equipment, energy-saving lamps, automation control devices (such as inverters), power equipment and facilities. Our products are exported to Europe, the United States and Southeast Asia. GE, OSRAM and PHILIPS are our customers.

Factory' S quality policy: "product quality, service in advance, customer satisfaction".

Environmental policy: "to comply with laws and regulations, pollution prevention, environmental awareness, continuous improvement of the environment
