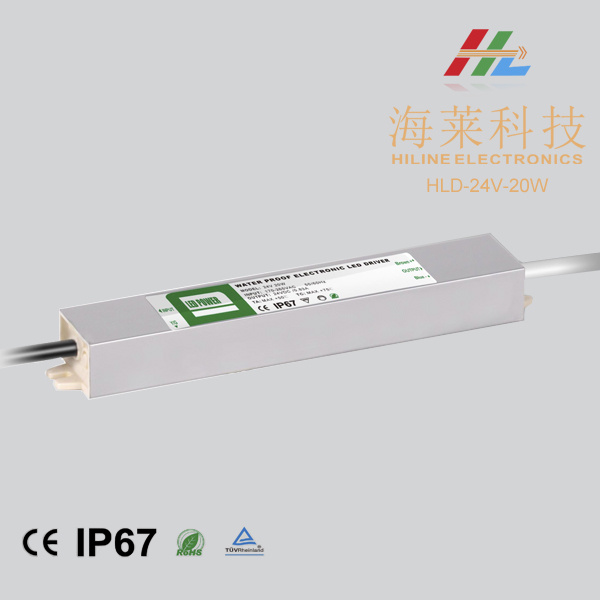

20W Waterproof Power Supply

Name: 20W Waterproof Power Supply
Brand: all-electronics-online.com
SKU: 803499085
Availability: InStock
Rating: 4.4 (68 reviews)

Price:	US $ 3.5/Piece
Min Order:	100/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	HLD-12V/24V-20W
Size:	1783020
Color:	White or Black Optional
Material:	Aluminum Case
Usage:	Digital Products
Output Type:	Single
Driving Method:	LED Constant Current
Circuit Structure:	PWM Controlled

Product Description

LED constant voltage waterproof driver, long life tenure, we use PWM technology and high quality capacitors to ensure good quality products, we've been in power supply field for 9 years. We can provide good power transformer with good quality at reasonable price.

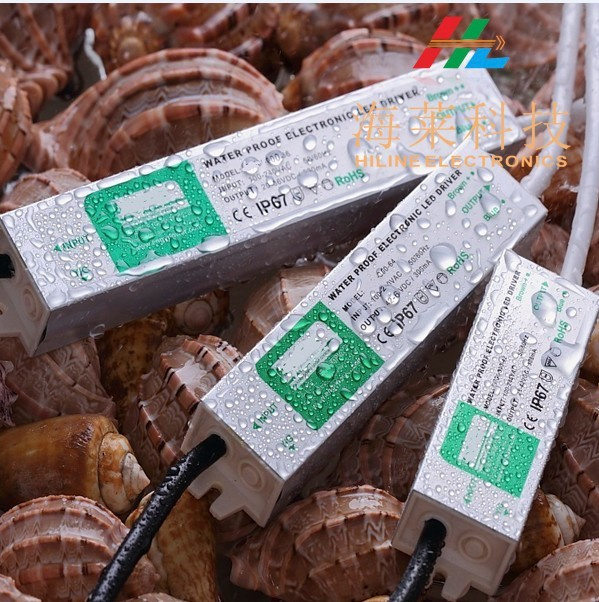

20W 12V 24V IP67 Waterproof LED Driver Features:
1. High efficiency professional IC for LED
2. Universal Input range (90~250VAC)
3. Stable constant voltage output
4. Waterproof IP67
5. 100% full load burn-in tested
6. Overload/short circuit protection
7. OEM is acceptable

20W 12V 24V IP67 Waterproof LED Driver Specifications:

MODEL		HLD -20-12	HLD -20-24
OUTPUT	Rated DC voltage	12V	24V
OUTPUT	Rated current	1.66A	0.83A
OUTPUT	Current range	0~1.66A	0~0.83A
OUTPUT	Rated Power	20W
OUTPUT	Voltage tolerance	12±0.5V	24±0.5V
OUTPUT	Ripple & Noise	200mVp-p
OUTPUT	Load regulation	±2%
OUTPUT	Setup, Rise time	50ms/230VAC
OUTPUT	Hold up time	20ms/230VAC
INPUT	Voltage range	170~260VAC;
INPUT	Frequency range	47~63Hz
INPUT	Efficiency (Typ.)	>70%	>70%
INPUT	Leakage current	0.25mA/240VAC
PROTECTION	Over Current	110%~150%
PROTECTION	Over Current	Protection type: Hiccup mode
PROTECTION	Short circuit	Short circuit protection
ENVIRONMENT	Working TEMP.	-25ºC~50ºC
ENVIRONMENT	Storage TEMP.	-40ºC~80ºC
ENVIRONMENT	Working Humidity	20~90% RH non condensing, refer to IP67
ENVIRONMENT	Vibration	10~500Hz,2G 10min/1cycle,period for 60min,each along X,Y,Z axes
ENVIRONMENT	TEMP. coefficient	±0.03%/ºC(0~50ºC)
SAFETY & EMC	Safety Standards	IP67 approved; Design refer to LVD EN61347-2-13:2005,EN61347-1:2008
SAFETY & EMC	Withstand Voltage	I/P-O/P:3KVAC, I/P-COVER: 3KVAC , O/P-COVER:500VAC
SAFETY & EMC	Isolation Resistance	I/P-O/P:>100M Ohms/500VDC/25ºC/70% RH
SAFETY & EMC	EMC	EN55015:2006/A2:2009,EN61000-3-2:2006/A2:2009,EN61000-3-3:20
OTHERS	MTBF	08,EN61547:200950KHours (25ºC)
OTHERS	Dimension	1803020mm(LWH)
OTHERS	Weight	0.18Kg,80pcs/15.2Kg/0.023CBM

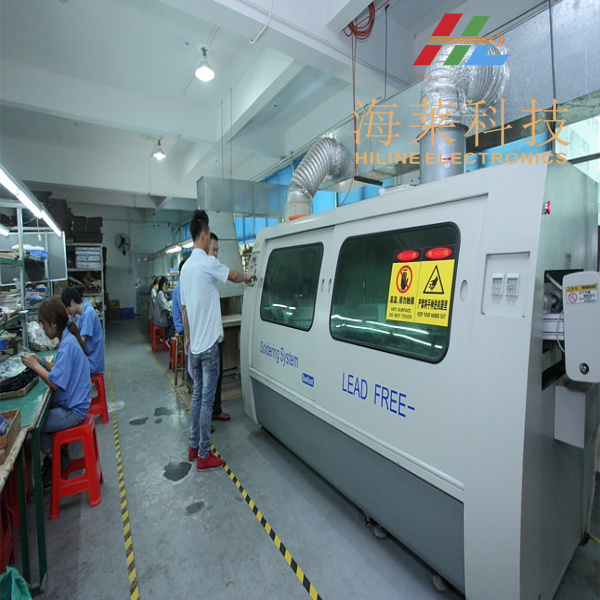

Zhuhai Hi-Line Electronics is located in the beautiful coastal city-Zhuhai, China. It is a high-tech R&D enterprise dedicated to developing, producing various innovative LED RGB lighting products, LED power supply and intelligent controllers.

Our main products include LED RGB digital boarder tube, LED digital video tube, LED strip light, LED digital DMX tube, LED power supply and RGB intelligent controllers for LED lights. These products are widely applied in municipal projects, casinos, stage lighting, home decoration etc which have been receiving good reputation among many parts of the foreign markets, such as American and European areas, Middle East and Southeast Asia etc.

We have been in LED field since 2007; We continuously focus on our tenet "Quality, Honest, Innovative and Efficient". With experienced R&D team and advanced equipments, we can offer our customers with the most-innovative, cost-effective and advanced decorative LED lighting products used for events, parties, home decorations, weddings, exhibitions, business, indoor and outdoor applications. There is no doubt that your satisfaction is our priority concert.

We are warmly welcome you to establish win-win commercial partnership with us to exchange valuable information and explore splendid future in the field of LED lighting.
