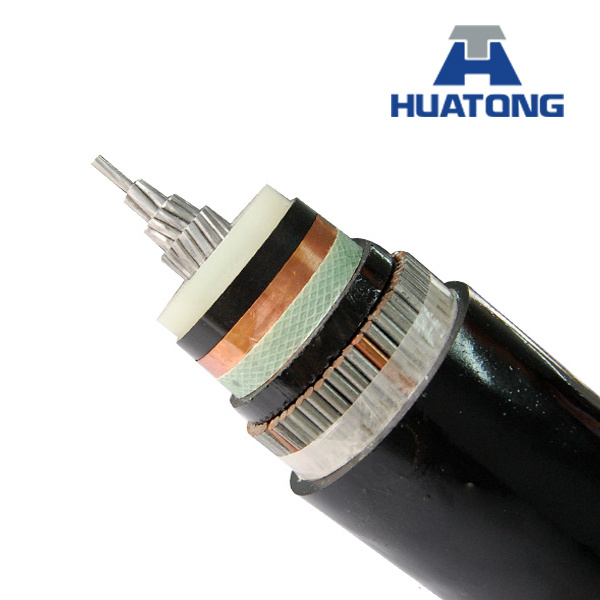

21/35kv Single Core Alumininum Core XLPE Insulated Power Cable

Prod Model:	YJLV/YJLV22/YJLV32/YJLV42
No. Of Cores:	Single Core
Experience:	20 Years
Factory Area:	100000m2
Application:	Power Station
Voltage:	Low and Medium Voltage Cable
Current:	DC & AC
Insulation Material:	XLPE
Certification:	RoHS
Wire Core Material:	Alumininum Conductor
Model:	Yjlv/Yjlv22/Yjlv32/Yjlv42
Brand:	Huatong

Product Description

21/35KV single core Alumininum core XLPE Power Cable

XLPE insulated power cable has a number of advantages over paper insulated and PVC insulated cable. XLPE power cable has high electric strength, mechanical strength, high-ageing resisting, environmental stress resisting anti-chemical corrosion, and it is simple construction, using convenient and higher operating of long term temperature. It can be laid with no drop restriction.
The flame-retardant and non-flame retardant XLPE cable can be manufactured with three technologies (peroxide, silane and irradiation cross-linking). The flame-retardant cable covers all kinds of low-smoke low-halogen low-smoke halogen free, and non-smoke non-halogenated and three classes of A,B,C.

1.Product Description:
1). Conductors: aluminum.
2). Both armored and non-armored type power cables are available.
3). Voltage rating: 21/35KV
4). PVC or PE sheathed.
5). Number of cable cores: one core(Single core),two cores(Double cores),three cores,
Four cores (Four Equal-section-area cores or three equal-section-area cores and one smaller section area neutral core),
Five cores (Five equal-area cores or three equal-section-area cores and two smaller section area neutral cores).
6). Standards: IEC 60502. IEC, BS, DIN, ASTM, CSA, NFC, AS, GOST etc. Or other special characteristics as customers request.

2.Application conditions
1). The long-time permissible operation temperature of conductor shall not be higher than 90ºC.
2). Conductor maximum short circuit (not more than 5 seconds) temperature shall not be higher than 250ºC.
3). The power cable is not limited by drop in level when being laid, and the ambient temperature shall not be lower than 0ºC .
If so, the cable should to be preheated.
4). Perfect chemical stability, resistant against acids, alkalis, grease and organic solvents, and flame.
5). Light weight, perfect bending properties, installed and maintained easily and conveniently.


 3.XLPE power cable


Rate Voltage(kv) Sectional Area(mm 2 ) No.of Core	1st class	0.6/1	1.8/3	3.6/6	6/10	8.7/15	12/20	18/30	21/35
	2nd class	1/1	3/3	6/6	8.7/10	12/15	18/20	-	26/35
1 Core		1.5-800	25-800	25-1200	25-1200	35-1200	50-1200	50-1200	50-1200
2 Core		1.5-185	25-185
3 Core		1.5-400	25-400	25-400	25-400	35-400	50-400	50-400	50-400
4 Core		2.5-400	25-400
5 Core		2.5-400	25-400



Type		Name	Main Application
Cu Core	Al Core
YJV YJY	YJLV YJLV	XLPE insulated,PVC or PE Sheathed Power Cable	For laying indoor,tunnel,channel and undergroud,Unable to bear external mechanical force,but bear the traction force during laid
YJV22 YJV22	YJLV22 YJV22	XLPE Insulated,Steel Tape Armoured,PVC or PE Sheathed Power Cable	For laying indoor,tunnel,channel and undergroud Able to bear external mechanical force,but unable to bear large pulling force
YJV32 YJV32	YJLV32 YJLV32	XLPE Insulated,Fine Steel Wire Armoured,PVC or PE Sheathed Power Cable	For laying in shaft with large difference of level.Able to bear external machanical force and maderate pulling force
YJV42 YJV42	YJLV42 YJLV42	XLPE Insulated,Thick Steel Wire Armoured,PVC or PE Sheathed Power Cable	Able to bear positive pressure and pulling force

4.Company information
Huatong  Inc.
(1) ,More than 20 years experience.
(2) ,100,000m² factory,200 staffs,annual output 100,000 metic tons.
 (3) ,Sound Quality Control
     - Material inspection;
     - manufacturing inspection;
     - Finished products inspection;
     - Inspection before delivery.
     - Third party inspection.
     - Inspection of storage at port of departure.
(4),ISO Certificated.
(5),Plenty of material and lobor gurantee the delivery prompt and price competitive.
(6),24/7 service.
         Huatong Cable Inc. was established in 1993, situated in Luo Yang- an ancient imperial city and a city famous for peony in the world. Luo Yang is one of the first batch of state-level historical and cultural cities. In this important industrial city of central region,Huatong Cable Co., Ltd. came into being. Since its foundation, the company has made outstanding contribution to STATE GRID, CHINA SOUTH POWER GRID and the construction of domestic and foreign power market. The honors should be attributed to more than 20 years of progressive R&D, constant market service and strong will for a better future.
        Henan Huatong Cable Inc. has set up overhead conductor division, power cable division and division of wire and cable for equipment. The division respectively takes charge of manufacture and marketing of overhead conductor, power cable and wire and cable for equipment. In 2002, our company set up the cable industry design and technology R&D department, providing technical support for product design and production. Our company makes independent innovation, and seeks cooperation with academic institutions including Shanghai Electric Cable Research Institute and China Electric Power Research Institute so as to meet the customized demands of customers and production needs of special cable. Now our company owns 25 exclusive rights to use trademark registered at home and abroad and 14 independent intellectual property patents,among which ACSR-720/50 aluminum cable steel reinforced has passed the technical appraisal of China Electricity Council. 1000KV or above extra-high voltage conductor was put into production, came into service and won good operation record.
