21 Vatc Coaxial Cable

Name: 21 Vatc Coaxial Cable
Brand: all-electronics-online.com
SKU: 797868615
Availability: InStock
Rating: 4.6 (71 reviews)

Price:	Negotiable/Meter
Min Order:	20000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	21 VATC Cable
Conductor:	CCS or Copper
Braiding:	30%~95%
Shield 1:	Double Shield, Tri Shield, Quad Shield
Shield 2:	Al.Pet
Apd:	Jelly Optional
Jacket:	PVC or PE
Colour:	Any Colour
Application:	RF Cable
Conductor Material:	Copper
Cover Material:	PVC
Certification:	ETL
Model:	Coaxial Cable
Type:	Coaxial Cable

Product Description

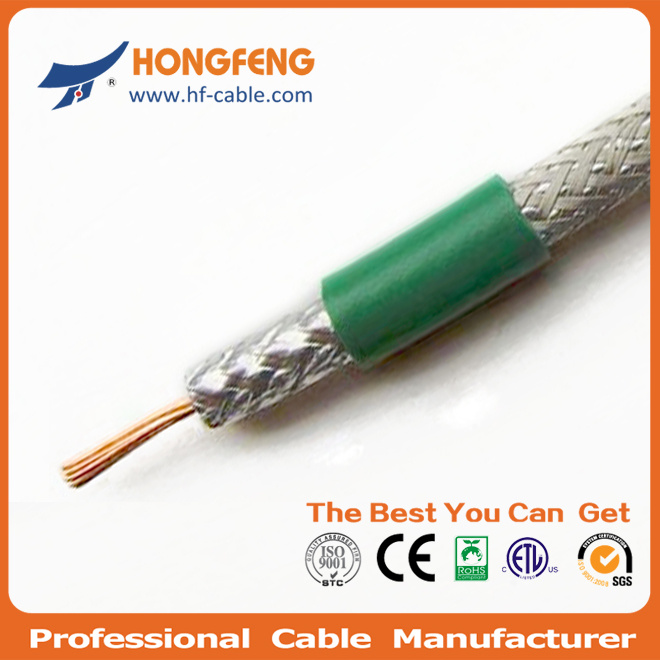

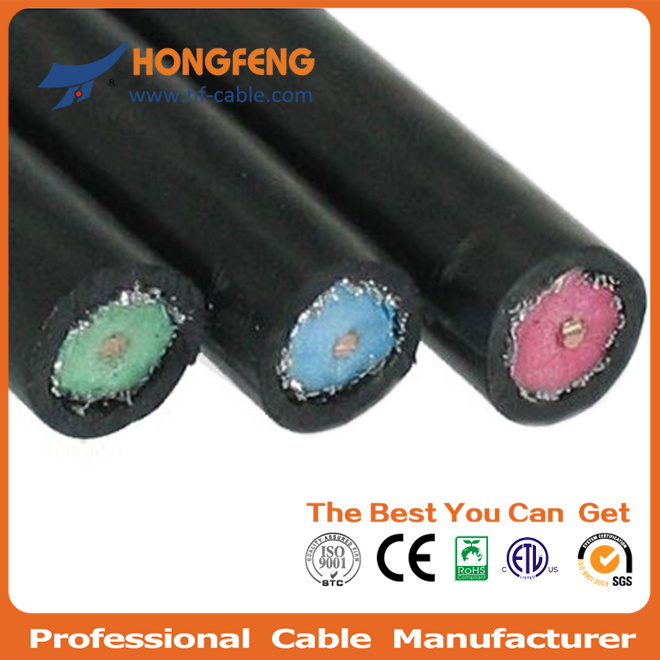

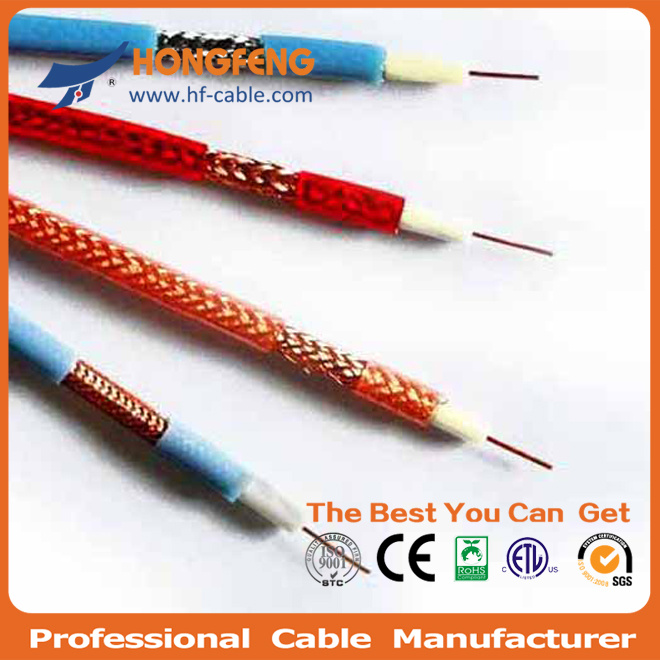

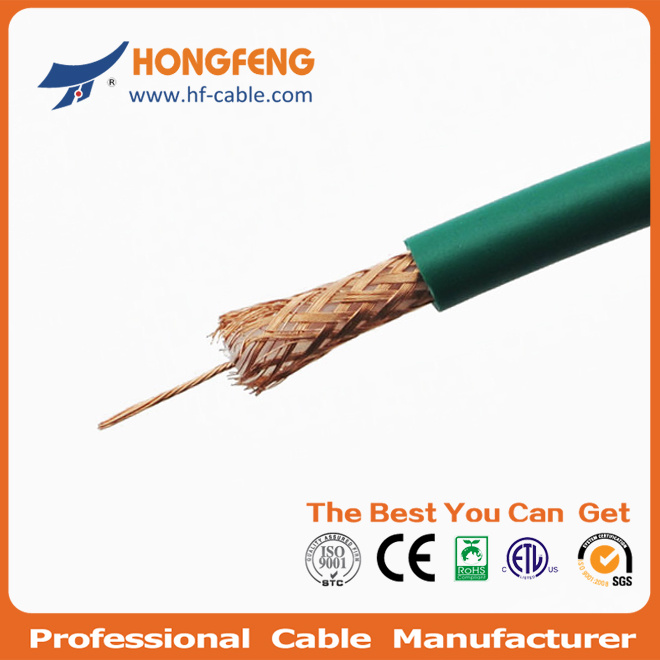

21 VATC/PATC COAXIAL CABLE

1.02mm BC/CCS+4.6mm FPE+Al Foil+TC braiding(35%-90% coverage)+Al Foil+6.8mm PVC jacket

Trademark:Hongfeng cable

Packing:100m/Roll, 200m/Roll, 305m/Roll, 100yard/Roll,

Standard:ISO

Origin:China

HS Code:85442000

Production Capacity:100, 000kms/Year

2. Package:
1) Packing Lengths: 100m/roll, 200m/roll, 305m/roll, 100yard/roll, 200yard/roll, 300yard/roll Other lengths available according to client's request;
2) Inner packing: Wooden reel, plastic reel, and paper reel available.
3) Outer packing: Carton box, pull out box, pallet available.
4) Other packing available according to client's request

Electrical Characteristics [@68°F. ( 20°C)]
	Frequency(Mhz)	Nominal values (dB/100M)	Frequency(Mhz)	Nominal values (dB/100M)	Frequency(Mhz)	Nominal values (dB/100M)
Attenuation	5MHZ	2.6	330MHZ	12.26	550MHZ	16.08
	55MHZ	5.25	350MHZ	12.63	600MHZ	16.73
	211MHZ	10.00	400MHZ	13.61	750MHZ	18.54
	250MHZ	10.82	450MHZ	14.43	870MHZ	20.04
	300MHZ	11.64	500MHZ	15.29	1000MHZ	21.49
Min Return Loss(dB)	≥20
Impedance(Ω )	75± 3
Velocity Rate(%)	85

Contact:

Mr. Leo

Hangzhou Hongfeng Cable Co., Ltd.

www.hf-cable.com

www.hf-cable.com.cn

Tel: +86-571-58615552

Fax: +86-571-63816227

Mb: +86-18268847560

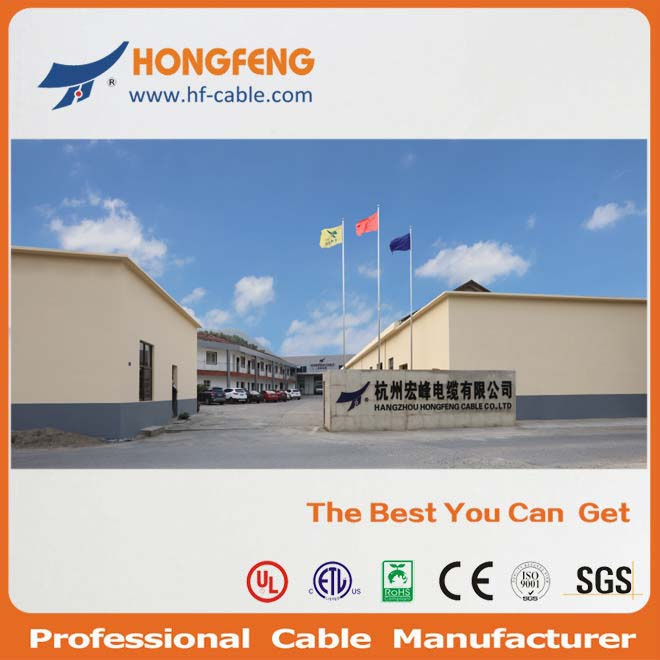

Our company, hongfeng industry, a professional cable manufacturer, is located in hangzhou, a city which is not only famous for its fabulous scenery, and also known for the center of the manufacture industry. And also we get close to the Shanghai port and ningbo port. This makes our company an unique position offering and delivering the cable overseas. We are dediacated to providing high quality coaxial cable and LAN twisted pair cable.

We offer whole range of coaxial cable and LAN twisted pair cable. Coaxial cable includes RG6 series, RG58series, RG59series, RG7series, RG11series, QR series, 500 series. And network cable CAT7 series, CAT 6 series, CAT 5 series.

We provide consistent high quality products at competitive prices. We have an products controlling teams, which monitors the manufacturing process and checks all the products before shipment. Our professional customer's service are ready to provide you with all necessary consultations and solve any problems related to our products.
