220-240V Dimmable Microwave Sensor

Name: 220-240V Dimmable Microwave Sensor
Brand: all-electronics-online.com
SKU: 820367565
Availability: InStock
Rating: 4.4 (23 reviews)

Price:	US $ 4.2-7.5/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	KA-DP31
Warranty:	2 Years
Samples Delivery Time:	Within 2 Days
Bulk Order Delivery:	Within 20 Days
Usage:	LED Lamp, Incandescent Bulb, Fluorescent
Type:	Microwave Sensor Switch
Wires:	NPN (',Three-Wires)
Standard:	Standard
Certification:	CE
Principle:	Microwave Sensor
Application:	Corridor, Warehouse, Garage, Toilets etc.

Product Description

KA-DP31 220-240V Dimmable Microwave Sensor specifications:

1. Operating voltage:90-260Vac, 50Hz/60Hz
2. Rated load:800w(inductive), 1200w(resistive)
3. HF system 5.8GHz±75MHz, ISM wave band
4. Transmitting power: <0.5mW
5. Power consumption: ≤0.5W(standby), <1.0W(operation)
6. Detection zone: 3-10 meters(Radii) Light control: 2-50LUX
7. Delaying time: 10 sec. to 10 min.
8. Stand-by period: 30s / / 10min / 20min / 24h
9. Stand-by dimming level: 10% / 20% / 30% / 50%
10. Mounting height: 3.5-4.5m Max.
11. Motion detection: 0.5~3m/s
12. Detection angle: 150° (wall installation);360° (ceiling installation)
13. Operating temperature: -35ºC~70ºC

Package:

1) White box or customized color box

2) Carton size: 46*36*39.5cm

3) Gross weight:9KGS

4) Quantity/carton:200pcs

Product introduction:

KA-DP31 is according to the microwave doppler effect , it can be widely used in as automatic control switch, the security system, and Automatic video control system of ATM, as well as other automatic induction control area. The Detection way has the below advantages compared with other as follows: 1. Non-contact Detection, 2. Suitable for bad environment, immune to temperature, humidity, noise, air, dust, Light^3. RF interference ability, 4. Transmission power only 0.2 mW, It will not harm the human Body. Simple installation+ easy wiring. We use appropriative micro processing integrator, not Only for high sensitivity and wide range of detection, and on very reliable work, error rate is Extremely low, It can stable working on the temperature range: - 15 ~ + 70 Celsius degrees.

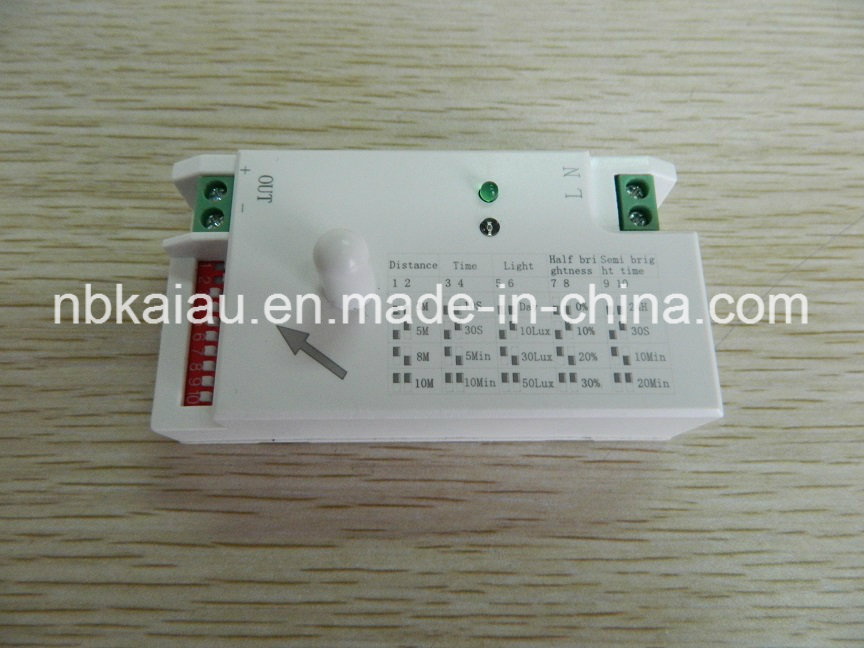

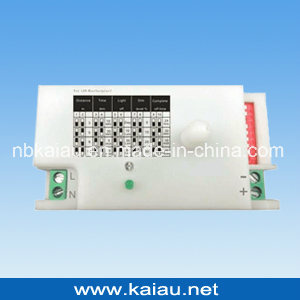

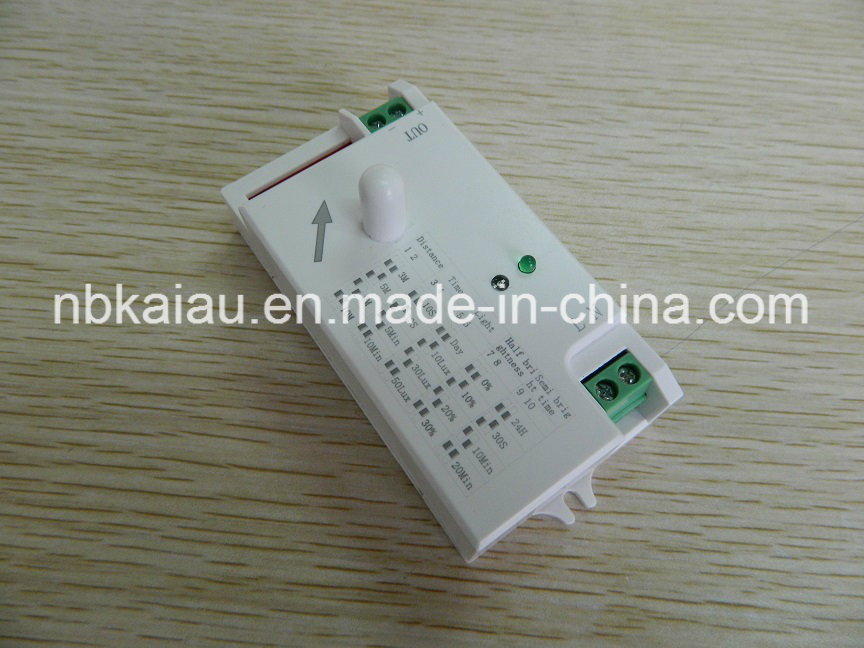

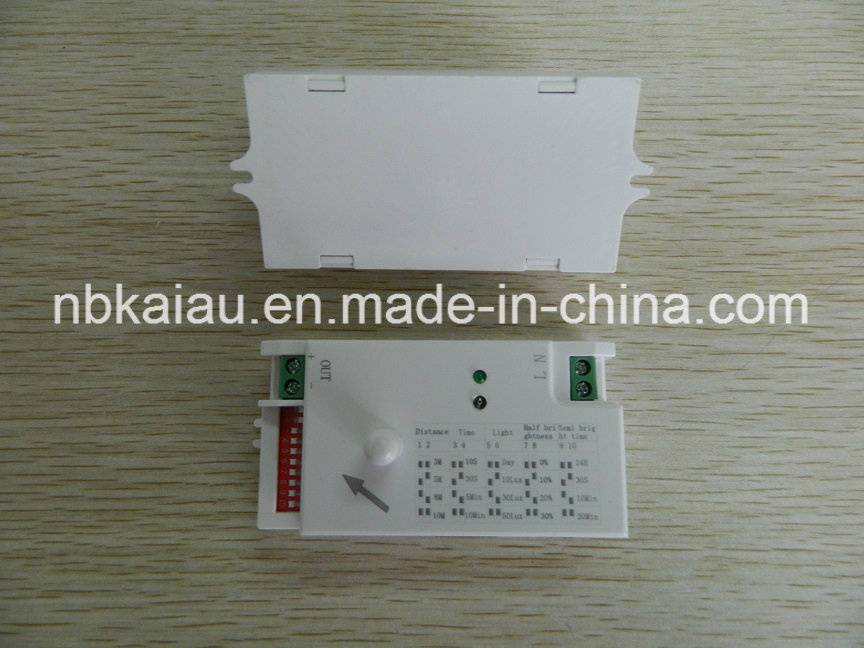

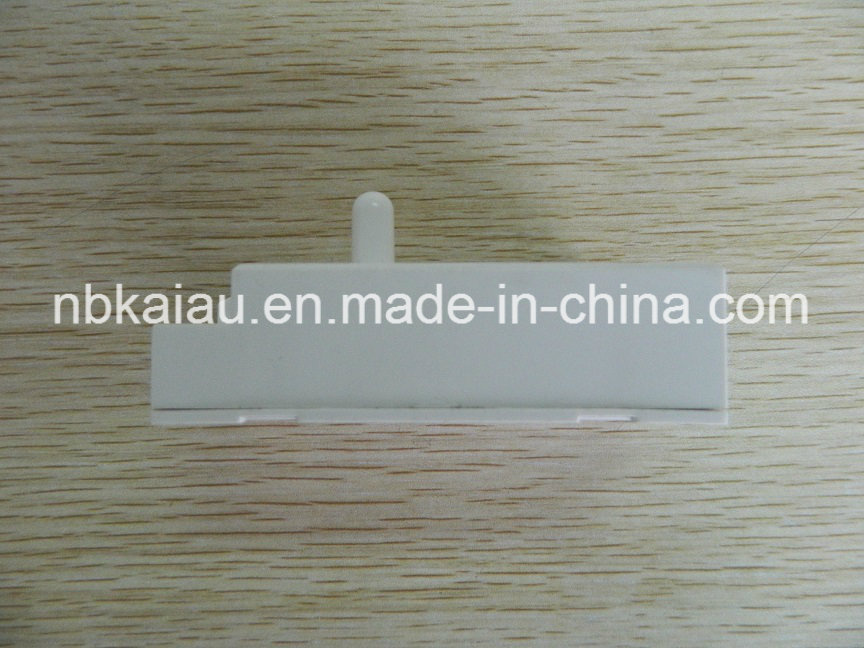

KA-DP31 Actual photos:

Ningbo Haishu Kaiau Electronics Co., Ltd. is a specialized manufacturer and knowledgeable exporter of sensor switchs, lighting fixtures and accessories, plugs and sockets.

Our products range:

1. The sensor switch series

PIR ceiling sensor switch, fitting lamp sensor, wall hidden sensor switch, wall surface sensor switch, microwave sensor, sensor lamp holder.

2. The lighting fixtures and accessories

LED sensor ceiling light, LED sensor Night light, Motion sensor flood light, Sensor wall lamp, LED solar garden light, LED ceiling light, LED flood light, LED bulb, LED spotlight, Microwave sensor light, Sensor lamp holder, Lamp holder

3. The plugs and sockets

Plugs:

The Transformation Plug, U. S. A. Power cord, Germany power cord, U. K. Power cord, Italy power cord, Switzerland power cord, Argentina power cord, Brazil power cord, Australia power cord, Japan power cord, Israel power cord, South Africa power cord, Spiral cord

Sockets:

Moveable socket, USB extension socket, European type socket, U. K. Type socket, French type socket, Holland type socket, Middle East type socket

Kaiau is making all efforts to provide our customers with timely delivery and high quality products at competitive price. Almost all of our products are well approved by the professional laboratory tests.

Kaiau welcomes OEM and ODM orders. We will do the OEM orders with our clients' Logo and their own brand. Now our products have been sold to more than 49 countries such as USA, UK, Italy, Spain, Japan, Iran, Singapore etc.

Kaiau has a professional sales team. All of our salesman have not less than 5 years experience in the trade business, they can offer you accurate product information and do the best after-sales service. The good experience of doing export business keeps good relationship with the regular customers and helps us to win the favor of new customers.

Kaiau recommends WIN-WIN partner relationship. We are trying our best to grow up with our customers together.

Thanks for visiting Kaiau on-line. Kaiau will be your first choice to purchase electrical products in China.
