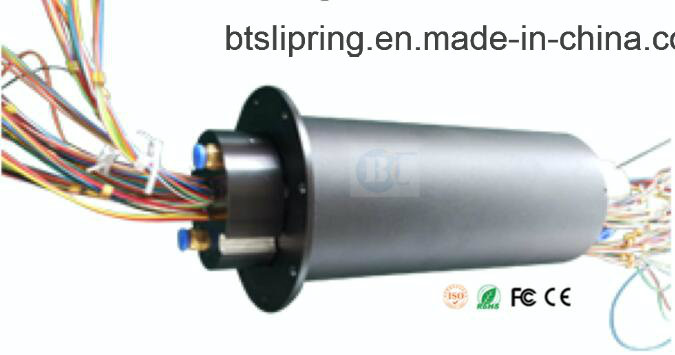

220 Circuits Signal and Power Compatible Customized Slip Ring in Flexible Solution

Name: 220 Circuits Signal and Power Compatible Customized Slip Ring in Flexible Solution
Brand: all-electronics-online.com
SKU: 805596175
Availability: InStock
Rating: 4.8 (20 reviews)

Price:	US $ 60/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	BTCS220
Contacting Material:	Gold to Gold
Housing Material:	Plastic or Metal
Connector Way:	Metal Pins
Current &Voltage:	20A&380V Per Ring
Dielectric Strength:	1000V
Working Speed:	350rpm
Protection:	IP54

Product Description

Multi-circuits signal and power compatible Customized Slip Ring in flexible solution Apart from the general slip rings, we offer our unique slip rings in tailor-made structures as per your application requirements. Ever made 348 circuits slip ring power and different signal compatible Compact design International engineering team Reliable and flexible solution

Multi-circuits signal and power compatible Customized Slip Ring in flexible solution

Apart from the general slip rings, we offer our unique slip rings in tailor-made structures as per your application requirements. The engineering staff utilizes its 20 years of expertise in slip rings to offer you what you have been looking for. A wide range of slip rings are produced in different sizes, shapes, volumes metal types and applications.

220 wires with 2 channels for Pneumatic

220 wires for power or data
2 channels for Pneumatic

Reliable for biological laboratory
Very low torque
Low noise

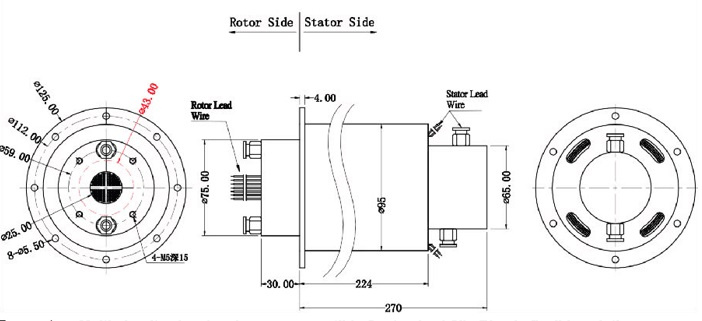

Dimension flexible

Parameters:Multi-circuits signal and power compatible Customized Slip Ring in flexible solution

Mechanical :Multi-circuits signal and power compatible Customized Slip Ring in flexible solution

Working speed	As per requested
Operating temperature	-40ºC~ +100ºC
Contact material	Precious metal
IP Grade	IP 54

Electrical:Multi-circuits signal and power compatible Customized Slip Ring in flexible solution

Circuit	Up to 350 circuits
Current	As per requested
Signal	Compatible with data, Hydraulic or Pneumatic
Voltage	≤380V, 600V optional
Dielectric strength	≥1000V@50Hz between each circuit
Insulation resistance	1000MΩ@ 500VDC
Electric noise	≤7mΩ
Lead wire size	As per requested
Lead wire length	Standard in 200mm

Features Multi-circuits signal and power compatible Customized Slip Ring in flexible solution

Circuits high to 250, and compatible with Hydraulic and Pneumatic

Low torque

Low noise for data transfer

Robust

Workable in hostile environment(-40ºC~ +100ºC)

Alternatives Multi-circuits signal and power compatible Customized Slip Ring in flexible solution

Circuits

Loading of each circuit

Wire length

Dimension

Housing material or color

IP Grade

ByTune electronics Co., Ltd, since 1998, is a government supporting, hi-tech, private enterprise, with more than 200 employees, 20, 000 square feet factory and 2, 500 square feet rd & sales office. ByTune is focused in developing, designing, manufacturing slip rings nearly 20 years, we supply wide range slip rings and provide360° Rotary solutions. Besides supplying standard through hole slip rings, capsule slip rings, separate slip rings, pan cake slip rings, hydraulic slip rings, pneumatic slip rings, coax rotary joints, fiber optic slip ring etc, we have an expertized engineering team of more than 50 persons, we provide full range of customized slip rings at prompt delivery. We customize slip rings as per customers request in different applications such as agriculture machine slip ring, crane slip ring, antenna slip rings, wind turbine slip rings, auto-wrap machine slip rings...

ByTune electronics is equipped with the machines of CNC ( 2, 3, 4 and 5 axis), vertical machine tool integrating turning with milling, auto-drilling machine, precise milling machine, numerical control punch press, grinding machine, and so on… ...With advanced machines, we could do all of the processions in one-stop: CNC lathe, milling, drilling, grinding, punching, bending, casting, forging, stamping, etc … ByTune supplies quality & precise machine parts at prompt delivery.

At www.btslipring.COM, you could get high quality slip rings and machine parts at an affordable price and with superior support by contacting sales@btslipring. COM.

ByTune is ISO9001, CE, FCC, RoHS and military standard JGB9001A certificated!
