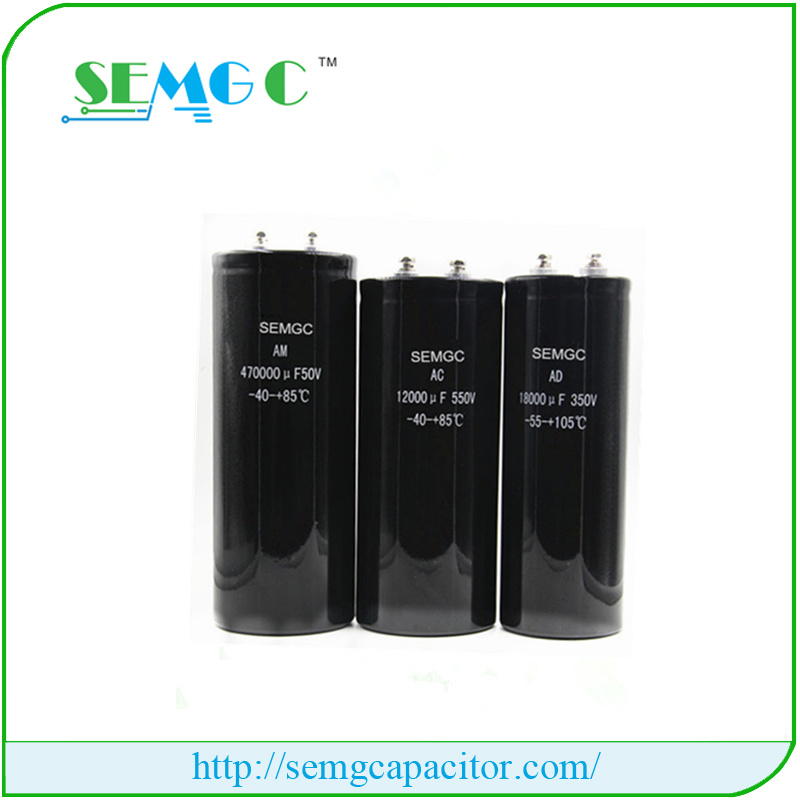

22000UF 400V Quick Offer High Voltage Capacitor
| Price: |
US $ 0.001-0.003/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1000/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
22000uf 400v |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Operating Temperature Range: |
-40~85 Degree |
| Type: |
Aluminum Electrolytic Capacitor |
| Application: |
Automobile |
| Package Type: |
Through Hole |
| Capacitance: |
>100uf |
Product Description
22000UF 400V Quick Offer High Voltage Capacitor
Features
*Corresponding product to RoHS
*Withstand 400V
*OEM or ODM available
*Hight quality Snap-in Capacitors
Specifications
| Item | Characteristics |
| Temperature | -40~+85°C | -25~+85°C |
| Voltage | 10~100VDC | 160~500VDC |
| Capacitance | 820~12000μF | 47~2200μF |
| Leakage Current (max 20°C) | I≤0.02CV or 3(μA) whichever is smaller |
| (After rated voltage applied for 5minutes) |
| Capacitance | ±20% at 120Hz, 20°C |
Dissipation
Factor | Dissipation Factor (tanσ)shall not exceed the values showed in the table of standard rating.
. |
| Load Life | After applying rated voltage with rated ripple current for 2000hrs at 85°C,the capacitor shall meet the following requirement. |
| Capacitance Change | Within ±20% of initial value |
| Dissipation Factor | Not more than 200% of the specified value |
| Leakage Current | No more than the specified value |
| Shelf Life | After placed at 85°C. Without voltage applied for 1000hours ,the capacitor shall meet the same requirements as endurance. |
| Applications | Smoothing circuit ,TV/Monitor ,Adapter ,SMPS |
Since 1985, SEMG is one of the leading electronic component manufacturers located in Baoan District, Shenzhen City, China, and has been specializing in designing, researching, developing, manufacturing, exporting and processing professional Aluminum Electrolytic Capacitors, Magnet material, PCBA. Now it's becoming the most reliable and famous supplier in China.
SEMG Electrolytic Capacitors
We offer over 23 series 10 thousand various kinds of capacitors products and monthly output up to 2 millions pieces.
*General Purpose aluminum Electrolytic Capacitors
*Low ESR & High Frequency aluminum Electrolytic Capacitors
*Low Impedance &High Ripple aluminum Electrolytic Capacitors
*Low ESR &Long load life aluminum Electrolytic Capacitors
*High ripple &long load life aluminum Electrolytic Capacitors
*snap-in aluminum Electrolytic Capacitors
*SMD Capacitor
*Solid Capacitors
The capacitors we produced widely used for power supply and LED driver, Ballast, Adaptet, SMPS, Home appliances etc. The annual output is more than 800million electrolytic capacitors a year.
SEMG is a ISO Certificated company, the quality of us had pass, RoHS, Reach, CE etc. And we can design the quality products as the customers needed!
SEMG Smartnoble EMC shielding Material
Smartnoble is a subsidiary company of SEMG, focus on the manufacturing and supplying EMC shielding material with silcone rubber, customized shape, welcome to visit http://www.smartnoble.cn/ for details.
SEMG Printing & Acoustic Fabrics
SEMG provides the high tension and low elongation of polyester mesh, with SGS and MSDS certificates, and applicable to the high precise printing for the industries of printed circuit boards, touch panel, glass and textile, cellphones etc. And also providing the advanced acoustic fabrics, which widely used in the protection of acoustic devices, and perform well to meet customer's demand, with its accurate holes and air current control, and its excellent stability to the different environment.
SEMG PCB Fabrication:
SEMG produces the samples and small volume of High layer and rigid-flex PCB, and big volume of low techology PCB.
1) Manufacturing facilities in China for a total capacity of over 4.0 million FT2/month, building area: 500, 000sq. FT, and typical PCB Equipment includes: Mitsubishi Laser Machines, Horizontal Copper plating, Horizontal Silver plating, Heavy Gold plating, Inner Finger beveling, and Automatic Appearance Inspection, etc.
2) Process Capability: Trace Width 3/3mil for volume production, 2/2mil for prototype, min. Mechanical hole 0.15mm, min. Laser via: 0.1mm.
3) Broad product range with expertise in:
Prototype, medium and high volume production of single-side, 2L, 4L to max. 28L.
Max. HDI capability (4+N+4) PCBs.
High frequency and high performance PCBs
Heavy copper PCBs (up to 12oz inner copper)
Aluminum-based PCBs
4)Certificates: ULNo.: E96016, ISO9000-, ISO/TS16949(Automative),
ISO13485 (Medical) -certified and Bellcore-compliant(Telecom).
5) Global support across different continents.
Other service: R&D of wireless modules
SEMG is focus on the researching and development of wireless modules and products, with WiFi, ZIGBEE, and Blue tooth solutions.
