| Prod Model: |
BYL-6636 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Connecting Size: |
M30*1.5mm |
| Color: |
Green/White |
| Control Components: |
Electric Heating Wax |
| Certification: |
ISO |
| Type: |
Temperature Controller |
| Control Type: |
Digital |
| Usage: |
Thermal Actuator |
| Display Type: |
No Moniter |
| Material: |
PC |
Product Description
Avonflow Baiyilun specializes in manufacturing thermostatic radiator valves for more than ten years. Our products have according to EN215-1 productions standards, and the automatic control design is energy saving and environment
protection. Our products' mission is to give your family and place the most comfortable temperature.
Thermal actuator
1.Approved to EN215
2.Passed CE/ISO9001/ISO14001
3.Temperature range:-5 to 60 °C
4.Connection:M30x1.5
5.Hysteresis:0.5K
6.paraffin wax sensor
7.Frost protect
8.Guarantee:1 years
9.OEM branding available
10DN15/20/25 available
Brass valve body, plastic handle
Metrail:PC(Thermal actuator); Brass (valve body)- Chrome/Nickel plated
Can be mounted vertically or horizontally

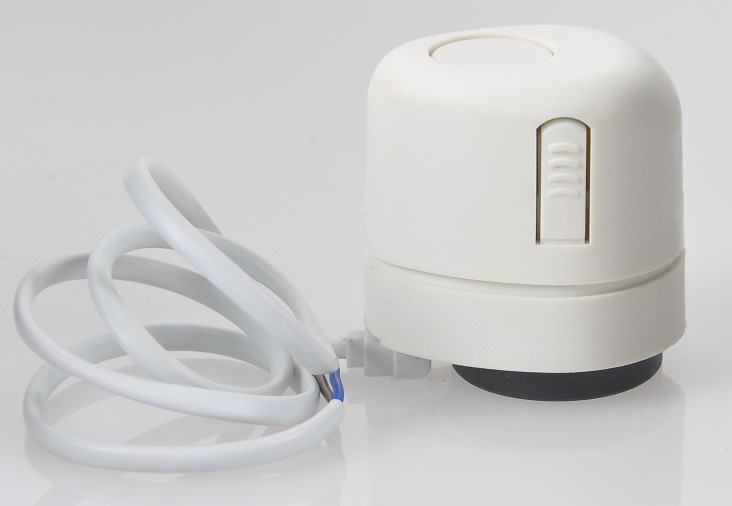

Electro thermal actuator
Technical Parameter
Voltage: 230V (220V) 24V
Status: NC NO
Power Consumption: 2VA
Thrust: 110N
Stroke: 3mm
Running time: 3-5min
Connection size: M30*1.5mm
Ambient temperature: From -5degree to 60degree
Cable Length: 1000mm
Protective housing: IP54
Thermostatic valve body
Made of brass, easy to be installed
Low resistance
Water temperature: Less than 120 degree
Normal resistance to pressure: 10 bar
Specialized in the manufacture of thermostatic radiator valve.We have produced the products for ten years and got a lot of experience.Since now ,we have exported our good to over 30 countries such as Russia,Romania, Greece,Croatia,Turkey, Poland, Ukraine and so on.
1,Introduction:
The electric thermal actuator CE ISO14001 approved BYL-663X can be used with electrical on/off-controls to active serveral types of valved and floor heating manifolds,the electric actuator is made for either 24V or 230V supply in normally close.
2,Application:
This electric thermal actuator CE approved fitted on manifolds or small valves for the control of warm-water(floor) heating systerm used in commercial buildings,Residential buildings,light-industrial buildings
3.Application:
This electric thermal actuator CE approved fitted on manifolds or small valves for the control of warm-water(floor) heating systerm used in commercial buildings,Residential buildings,light-industrial buildings
|
24v |
1.2A |
|
110v |
0.9A |
|
220v(230v) |
0.7A |
|
Voltage: |
230V (220V) 24V |
|
Status: |
NC NO |
|
Power Consumption: |
2VA |
|
Thrust: |
110N |
|
Stroke: |
3mm |
|
Running time: |
Open-3mins,close-5mins |
|
Connection size: |
M30*1.5mm |
|
Ambient temperature: |
From -5degree to 60degree |
|
Cable Length: |
1000mm |
|
Protective housing: |
IP54 |
