| Prod Model: |
S2100S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| IP Rate: |
IP65 |
| Voltage: |
220V/380V |
| Power: |
0.75-11kw |
| Phase: |
1/3 Phase |
| Apply: |
Fan and Pump |
| Application: |
Single-phase Transducer |
| Output Type: |
Triple |
| Principle Of Work: |
V/F Control Transducer |
| Switch Mode: |
PWM Control |
| Main Circuit Type: |
Voltage |
| Function: |
Fan and Pump |
| Brand: |
Machtric |
Product Description

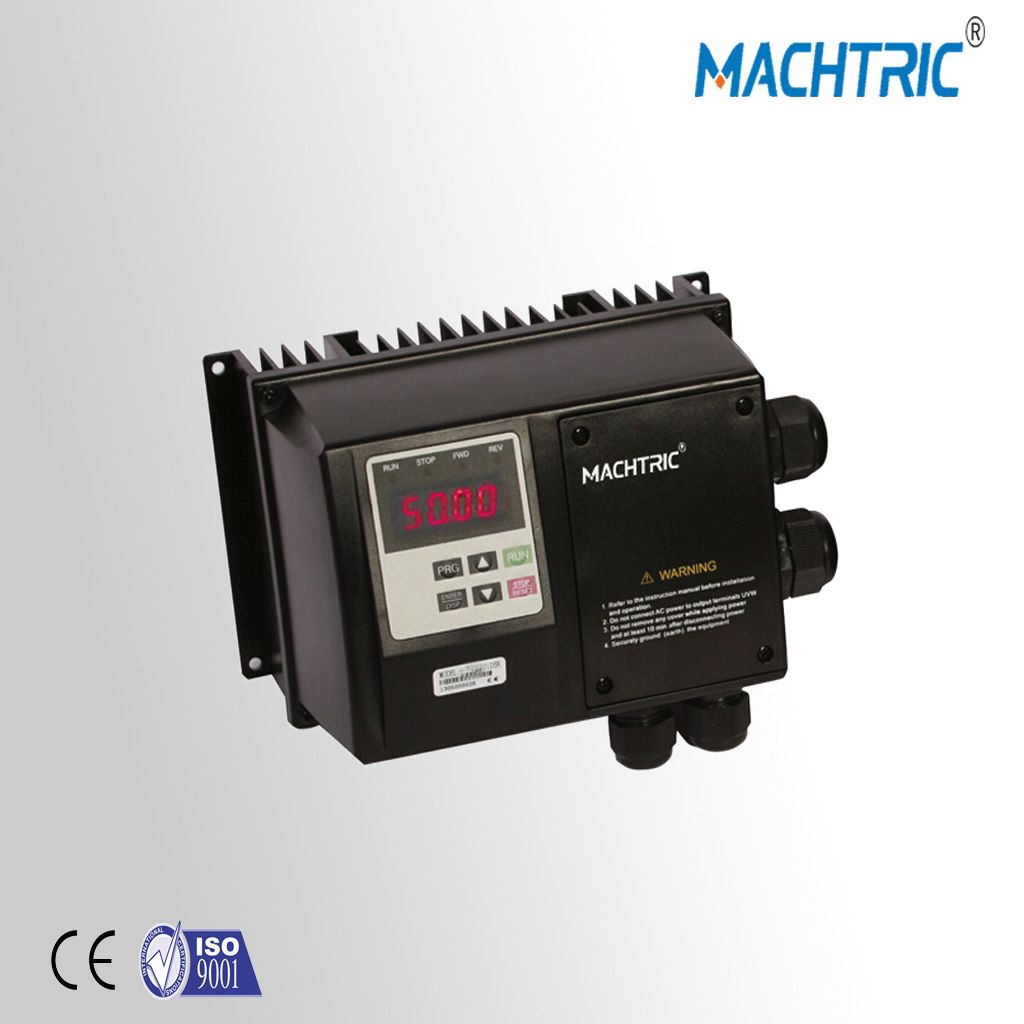

220V 11kw Variable Frequency inverter IP65 for Pump
Place of Origin: Fujian, China (Mainland)
Brand Name: Machtric
Model Number: S900GS
Output Power: 07.5kw-22kw
Output Type: Triple
Size: different
Weight: different
Input Voltage: 220V, 380V
Output Voltage: 220V, 380V
Type: AC-DC-AC
Output Frequency: 0-400Hz
Output Current: different
vsd: variable speed drive
input: single phase
supply power: AC 220V
inverter: frequency inverter
IP rate: IP20 VSD
color: black vfd
Application: fan and pump vfd
size: compact size
control mode: V/F control
web: www.machtric.com
Model | S2100S |
| Input | Rated voltage,Frequency | 3 AC 380V / 220V; 50-60 Hz |
| Voltage Range | 380V: 330V~440V;220V: 170-240V |
| Output | Voltage Range | 380 V: 0~380 V; 220V: 0-220V |
| Frequency Range | 0.10~400.0 Hz |
| Control method | V/F control,Space verctor control |
| Indication | Operating status/Alarm definiton/interactive guidance;eg,frequency setting,the output frequecy/current,DC bus voltage,the temperature and so on. |
| Control Specification | Output Frequency Range | 0.10~400.00 Hz. |
| Frequency Setting Resolution | Digital input: 0.01 Hz.
Analog input:0,1% of maximum output frequency |
| Output Frequency Accuracy | 0.01 Hz. |
| V/F Control | Setting V/F curve to satisfy various load requirements |
| Torque Control | Auto increase:auto riase torque by loading condition;Manual increase:enable to set 0.0~20% of raising torque |
| Multifuncional Input Terminal | 8 multi-function input terminals,realizing fuctions including fifteen section speed control,program running, four-section acceleration/deceleration speed switch,UP/DOWN function and emergency stop and other functions |
| Multifuntional Output Terminal | 3 multi-function output terminals for displaying of running,zerospeed,counter,external abnormity,program operation and other infornation and warnings |
