| Prod Model: |
F21-6S-2TX |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Control Points: |
6 |
| Channel No: |
8 |
| Product: |
Remote Control for Crane |
| Application: |
Industrial Machinery |
| Signal Transmission: |
Radio Waves |
| Type: |
Button |
| Certification: |
CE |
| Universal: |
Universal |
| Transmission Distance: |
>100m |
| Voltage: |
3V |
| Material: |
Plastic |
Product Description

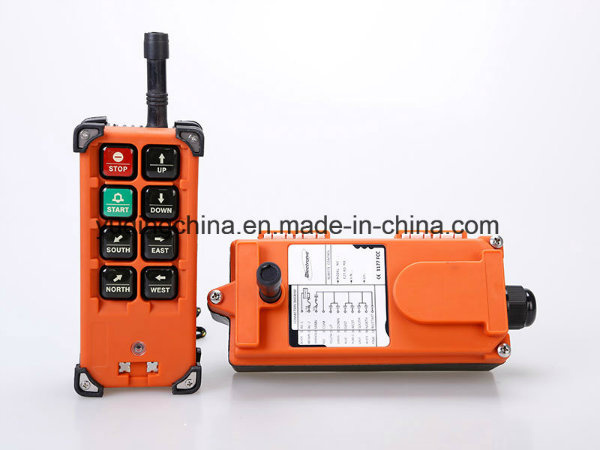

6 Single Speed Push Button Wireless Remote Control for Grab Crane, overhead crane, single gider crane
Standard Configuration:1. One transmitter ;
2. One receiver;
3. One 1m cable connect with receiver
4. One operation and maintain manual.Our advantage:1. More than 10 years researching and exporting experience in remote control for crane industry.
2. Well and high quality control, all working process according to ISO9001:2008.
3. CE, FCC & ISO certificates.
4. One year warranty.
5. Sample order acceptable.
6. OEM acceptable.Products Features:* 8 push buttons with 7 single-speed buttons and 1 stop buttons
* control points up to 6
* With the battery voltage alarm device to cut off the circuit when voltage is insufficient.
* with the Rotate key switch to guarantee the safety.
* set the internal functions by computer interface
* up/down ,east/west , south/ north push button can be set mutual inhibition or not .
* spare 1 key can be set start ,speed up,jump strokes, ordinary etc.Briefly Introduction:
transmitter: | size :164*75*46mm | weight: 350g |
| Receiver: | size:185*85*85mm | weight:550g |
Specification of remote control for crane:
Application |
Hoist, winches, lifts, doors and other industrial machine. |
Frequency |
310.0325~331.165Mhz |
Frequency generation: |
Crystal (plug in) |
Channel |
80 |
Channel Spacing |
0.2675MHz |
Control motions |
6 |
Control distance |
Up to 100m |
Certificates |
CE, FCC, ISO9001:2008 |
Number of push button |
6 Single speed push button +1 start+1 stop |
Unique code |
Over 4.3billon unique ID codes . |
Working temperature |
-35°C ~ +80°C |
Enclosure protection class |
IP65 |
Transmitter power |
AA-size batteries |
Receiver power |
AC 380v/220V/110v/48v/ 36v/24v or AC/DC12V |
Output capacity |
Full sealed relay output with 5 amperes |
Warranty |
1 year |
Material |
glass fiber |

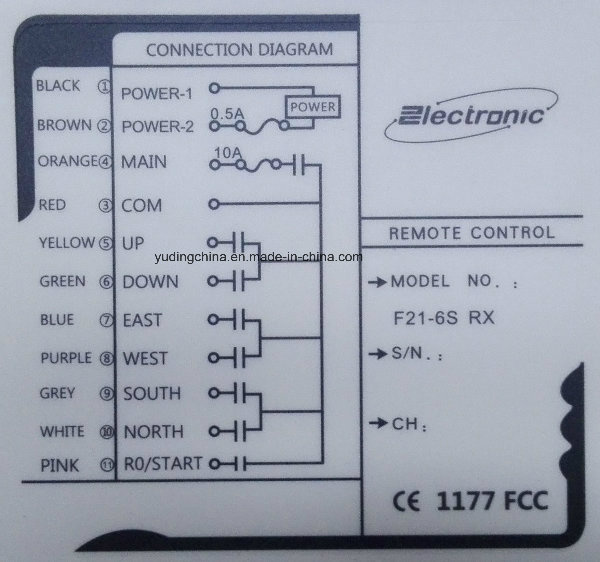

Connection Diagram

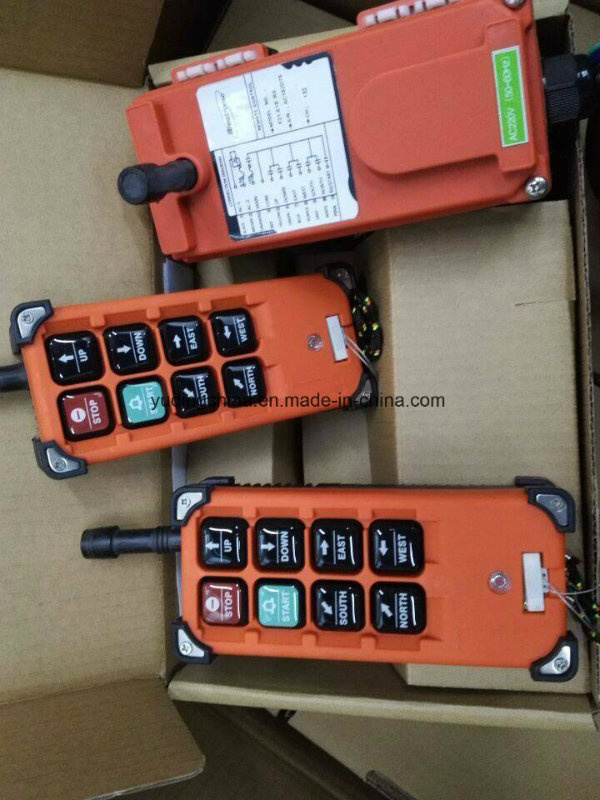

Packing:1 set / box , 10 box / carton Application :

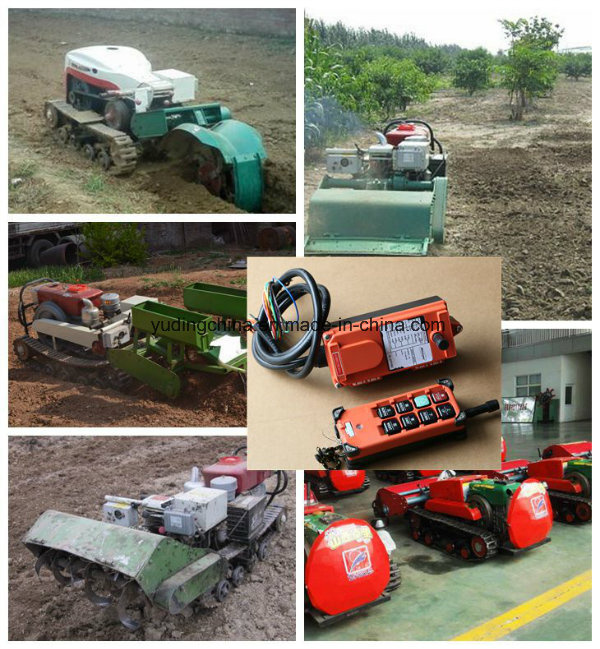

Application :Single hook electric cable hoist ,monorails,single speed electric hoist or electric single speed hoist crane,floating crane ,overhead crane ,vehicles equipment ,door control system ,engineering machinery ,lifting platform ,traveling crane ,hydraulic equipment and used for industrial remote control which are under 6 connection.
Remote control is widely used in lifting equipment ,construction machinery , loading/unloading cargo , water supply system , data transmission, the iron smelting and steel- making , automobile manufacturing ,paper making and chemical industry ,steel structure processing ,galvanization ,shipbuilding ,railroad ,bridge ,tunnel construction and other equipment and sites which can by worked by radio controls .
If you are interested in our products, pls feel free to send inquiry to us.
Henan Dirk Electronic Co. Ltd (former Henan Yuding Electronics Crop., Ltd) is an industrial radio remote controls manufacturer in China. Established in August, 2010, With more than 10 years experience on this industrial remote control system business area. Headquartered in Zhengzhou, Henan province. Dirk has so many experts in the industrial radio remote controller area to assure quality and productivity, Dirk are becoming one of the leading companies in this industry in China.
Our main products is: F21 Series radio remote controls, F23 series radio remote controls, F24-60 Dual Joystick radio remote control and explosion-proof remote controls. All these remote controls are easy to operate to keep workers safety and Efficient. All our products are CE & FCC & ISO Certificate.
Quality is company's life. From the raw material testing, manufacturing, aging test and assembly, Each process are operate according to ISO9001: 2008 & international quality control system to guarantee the products quality. Competitive price with excellent quality and good after-sales service make our Internal customers are covered Over 400 cities of 33 countries. We also have built long-term business relationship with the foreign customers.
