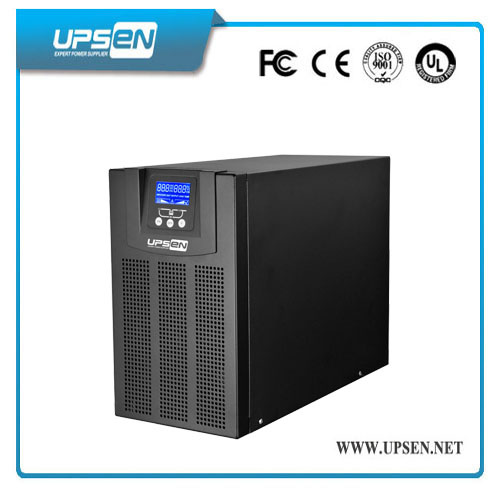

220V 230V 240V AC on-Line UPS Power 3kVA/2400W with Internal Snmp Card

Name: 220V 230V 240V AC on-Line UPS Power 3kVA/2400W with Internal Snmp Card
Brand: all-electronics-online.com
SKU: 733525745
Availability: InStock
Rating: 4.4 (26 reviews)

Price:	US $ 50-1000/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	Queen Star Series 1-3Kva
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Phase:	Single Phase
Type:	On-line
Protection:	Over Voltage, Over Current, Short Circuit

Product Description

20V 230V 240V AC On-line UPS Power 3Kva/2400W with Internal SNMP Card

UPS Perfect Application
Network, data centre, servers and workstations, control system, communication system, Telecom system, power station, security system, hospital, school, home and office etc.

UPS Main Features
True online double conversion technology, Pure Sine Wave Output
0.8 Output Power Factor, Digital LCD Screen, Zero transfer time
DSP Technology, compact design
Active input power factor correction (PFC)
Protection against all types of power problems
Wide range of input voltage and frequency
Active Load Management, cold start function
Sufficient Expansion Slots for USB, AS400, CMC monitoring, SNMP, RS485 and EMD environmen monitoring
Equipped with maintenance bypass switch
Generator Supportable
Sealed lead acid, maintenance free battery

MODEL		Q1K	Q1KL	Q2K	Q2KL	Q3K	Q3KL
Rated capacity		1KVA/800W		2KVA/1600W		3KVA/2400W
Input	Voltage	115 - 300Vac
	Frequency	40-60Hz / 50-70Hz
	Power factor	0.99
Output	Voltage	220/230Vac(1±2%)
	Frequency	Synchronize with utility power(utility mode); 50 / 60Hz ± 0.2Hz(battery mode)
	On-load factor	0.8
	Overload rating	125% overload,1min
Battery	Type	Valve-control lead acid maintenance-free battery
	Back up time	> 11min (half load)	External	>11min (half load)	External	>11min (half load)	External
	Rated voltage	36V		72V		96V
Transfer time		0
Operating environment		Humidity: 20%-90%, Temperature:0 o C-40 o C
Size (WxDxH)mm		350 x 144 x 229		424 x 190 x 328		424 x 190 x 328
Net Weight(kg)		11.5	5.7	22.2	10	26.3	10
*Specification is subject to change without further notice

Shenzhen UPSEN Electronic Co., Ltd. Which is located in south of China, Shenzhen City, close to Pearl of the Orient HK, with beautiful environment and convenient transport.

We are a private high-tech enterprise integrating researching & development, production & operation and technical services as a whole, which is specialized in Electric, Electronic and Energy fields for a long time. Our main products are UPS Power, Inverter Power, Battery Power, Solar&Wind Power. We are dedicated to offer quality power and power solution for Data-center, Telecom, Bank, Hospital, Transportation, Industry, Army, Security, and civil & office area etc. Moreover, we have mastered the core technology of power products through our independent research, we are one of few domestic enterprises which can meet the customers' customized requirements, and provide professional power solutions.

We already past ISO9001 international quality system certification, and established a complete quality system ranging from material source, process, assembling to testing. All our products are with CE Certificate, which exported to more than 30 countries and areas, like Australia, Europe, Africa, North America, South America, the Middle East, central Asia, southeast Asia etc.

We will always offer excellent quality and products to customers. Hope to make Integrity and Double-Win business with you, and to be your professional power supplier and solve your any power problems. We are sure UPSEN can achieve more successes with our efforts and your support.
