| Prod Model: |
Queen Star Series 1-3Kva |
| Markets: |
North America,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Weight: |
10~30kgs |
| Phase: |
Single Phase |
| Type: |
On-line |
| Protection: |
Over Load/ Current/Voltage, Short Circuit |
| Brand: |
Upsen |
Product Description

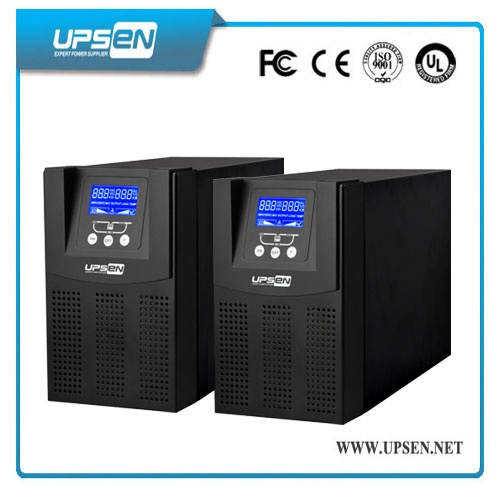

220V 230V 240V Digital LCD Online UPS System 1K - 3KVA for Home and Office use1: Single Phase UPS with 220V/230V/240Vac Input/Output
2: UPS System with Frequency 50/60Hz auto adjustable
3: China good quality UPS Power Supplier with same quality like APC UPS, Eaton UPS
4: 0.8 Power Factor for UPS output
UPS ApplicationUPSEN Queen Star Series UPS 1-3kVA is specially designed for servers, data-center critical network devices, sensitive electronic equipment, telecom, bank, hospital, bureau, traffic, public security, ATM and so on.

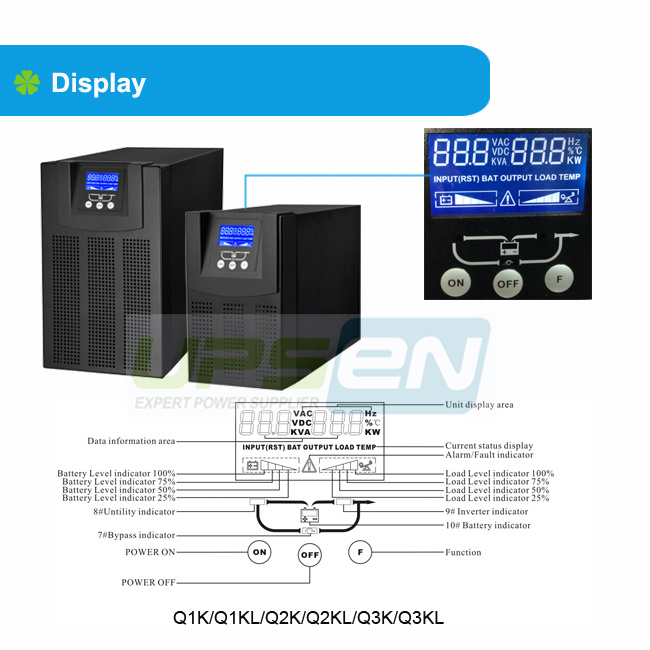

UPS Key Features1: Digital LCD Display
2: Pure Sine Wave, Double Conversion Online
3: Wide input voltage range, Zero transfer time
4: Advanced MCU microprocessor control technology
5: Voltage regulator circuit
6: Comprehensive Electrical isolation and bypass protection
7: Input PF correction, reduce the harm of harmonic wave to the power grid, convenient to connect with mini generator.
8: Input N/L Inspection function and date line protection
9: DC start when power off, convenient and reliable; Restart automatically when Electricity is restored.
10: Humanization bypass output, can be adjustable.
11: Smart RS232 communication with monitoring software
12: Protection against over voltage, over load, over current, over charge and so on.
| MODEL | Q1K | Q1KL | Q2K | Q2KL | Q3K | Q3KL |
| Rated capacity | 1KVA/800W | 2KVA/1600W | 3KVA/2400W |
| Input | Voltage | 115 - 300Vac |
| Frequency | 40-60Hz / 50-70Hz |
| Power factor | 0.99 |
| Output | Voltage | 220/230Vac(1±2%) |
| Frequency | Synchronize with utility power(utility mode); 50 / 60Hz ± 0.2Hz(battery mode) |
| On-load factor | 0.8 |
| Overload rating | 125% overload,1min |
| Battery | Type | Valve-control lead acid maintenance-free battery |
| Back up time | > 11min (half load) | External | >11min (half load) | External | >11min (half load) | External |
| Rated voltage | 36V | 72V | 96V |
| Transfer time | 0 |
| Operating environment | Humidity: 20%-90%, Temperature:0 o C-40 o C |
| Size (WxDxH)mm | 350 x 144 x 229 | 424 x 190 x 328 | 424 x 190 x 328 |
| Net Weight(kg) | 11.5 | 5.7 | 22.2 | 10 | 26.3 | 10 |
| *Specification is subject to change without further notice |
Competitive Advantages:
1: Three Years' warranty for Online UPS, and 1% free UPS or 2% free PCB Boards
3: Good after-sales service, we will be full responsible for any faults caused by our side
4: Professional experience in power field more than 10 years
5: Professional technical support before and after sales
6: Timely response, fast delivery time and flexible operations to satisfy any customers' special requests.
7: Free OEM & ODM Service
8: Competitive price, quality and mature products
Shenzhen UPSEN Electronic Co., Ltd. Which is located in south of China, Shenzhen City, close to Pearl of the Orient HK, with beautiful environment and convenient transport.
We are a private high-tech enterprise integrating researching & development, production & operation and technical services as a whole, which is specialized in Electric, Electronic and Energy fields for a long time. Our main products are UPS Power, Inverter Power, Battery Power, Solar&Wind Power. We are dedicated to offer quality power and power solution for Data-center, Telecom, Bank, Hospital, Transportation, Industry, Army, Security, and civil & office area etc. Moreover, we have mastered the core technology of power products through our independent research, we are one of few domestic enterprises which can meet the customers' customized requirements, and provide professional power solutions.
We already past ISO9001 international quality system certification, and established a complete quality system ranging from material source, process, assembling to testing. All our products are with CE Certificate, which exported to more than 30 countries and areas, like Australia, Europe, Africa, North America, South America, the Middle East, central Asia, southeast Asia etc.
We will always offer excellent quality and products to customers. Hope to make Integrity and Double-Win business with you, and to be your professional power supplier and solve your any power problems. We are sure UPSEN can achieve more successes with our efforts and your support.
