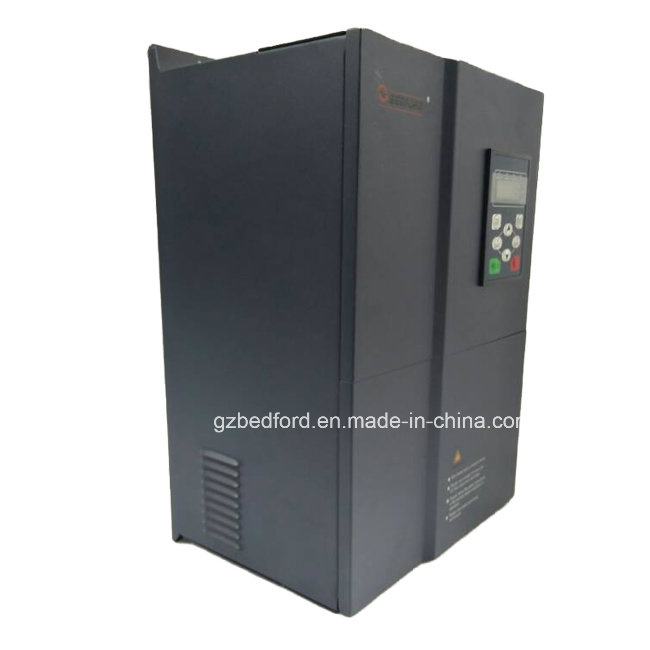

220V 380V Three Phase AC Frequncy Inverter

Name: 220V 380V Three Phase AC Frequncy Inverter
Brand: all-electronics-online.com
SKU: 838002985
Availability: InStock
Rating: 5 (27 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	B503
Product Name:	B503 Series General Purpose Frequncy Inverter
Color:	Black
Protection Class:	IP20 or IP54
Certificates:	Ce ISO9001
Application:	All Kinds of Industrial Machinery
Output Type:	Triple
Principle Of Work:	Sensorless Vector
Main Circuit Type:	Depend on Rated Voltage
Voltage Of Power Supply:	Rated Voltage
Brand:	Bedford

Product Description

B503 Series General Purpose Frequency Inverter
B503D

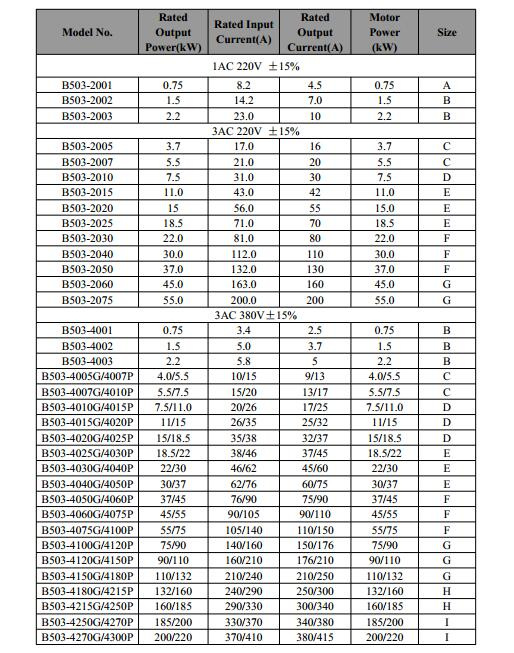

Input power range:
Single phase220V: 0.75~2.2KW
Three phase220V:3.7~55KW
Three phase380V: 0.75~630KW

Output power range
Three phase 0~220V: 0.75~2.2KW
Three phase 0~220V: 3.7~55KW
Three phase 0~380V: 0.75~630KW

B503B
Input voltage & Output power voltage
Single phase 220V: 0.75~2.2KW
Three phase 220V: 3.7~5.5 KW
Three phase 380 V: 0.75~15KW

Features
Control Mode: Sensorless Vector Control(SVC), V/F Control
Overload capacity: 60s with 150% of rated current, 10s with 180% of rated current
Starting Torque: 150% of rated torque at 0.5HZ(SVC)
Speed Adjusting Range: 1:100(SVC)
Speed Accuracy: _+0.5% of maximum speed (SVC)
Carrier Frequency: 0.5KHZ~15.0KHZ
Reference Frequency Source: keypad, analog input, serial communication, multi-step speed, PID and so on
PID Control Function
Multi-steps Speed control Function: 8 steps speed can be set
Traverse Control Function
Non-stop when power is instantaneously cut off
Torque Control Function: Provide multiple torque setting source
Speed trace function: start the running motor smoothly . Key: User defined shortcut key can be realized
Protections: over current, over voltage, under voltage, over heat, phase failure, over load etc.

Applications: Textile machinery, plastic machinery, ceramic machinery, electric, numerical control machine, foodstuff machinery, light industry, pharmacy machinery, fan, water pump, air compressor, etc.

Guangzhou Bedford Electric Equipment Co., Ltd. is a high-tech enterprise integrating the R&D, production, sale and service together, specializing in Bedford series frequency inverters, AC Drives, VFD, VSD, intelligent constant pressure water pump controllers, complete water supply equipment, special inverter for injection machine and all kinds of motor savers which are widely used on general industry motor, fans, industry washing machine, packing, printing, textile machine, screw air-compressor and other applications. With a production capacity of 2000PCS/month, achieving ISO9001, ISO14001 since 2009 and the latest standards of GB/T12668.2.2002 and EMC GB 12668.3-2004 Certificate issued by the Nation Quality Supervision and Inspection Center. In addition, we have a group of professional software and hardware developers. We can develop special electric products to meet clients' requirements.

We welcome the customers and friends from both home and abroad to establish long-standing, mutual benefit business relationship with us.
