| Prod Model: |
Queen Star Plus Series 6-10k |
| Battery Type: |
Lead-Acid Maintenance-Free Battery |
| Transfer Time: |
Zero Conversion |
| Business Type: |
Manufacturer, OEM/ODM |
| Phase: |
Single Phase |
| Type: |
On-line |
| Protection: |
Short Circuit |
| Brand: |
Upsen |
Product Description

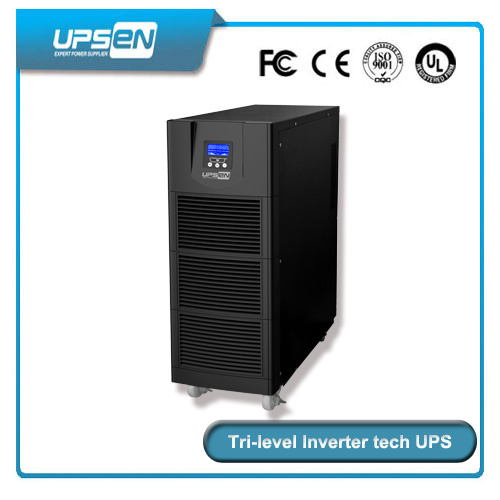

220V 50HZ single phase online ups with CE approve
Product Advantages:
1: Can be with 100% unbalance load
2: Energy saving and Environment Friendly
3: Active input power factor correction(PFC)
4: Pure sine wave output, true on-line double conversion design.
5: More optimized structure layout, makes the UPS size smaller.
6: LCD Display with Advanced Monitoring for Easy UPS Management
Main Features
1>Double conversion online technology.
2>Equipped with maintenance bypass switch.
3>Sealed lead acid, maintenance free battery.
4>ups power supply has the self test while start.
5>Protection against all type of power problems.
6>Humanization bypass output can be adjustable.
7>Fully meet saltus of the load from 0 to 100%.
8>Advanced constant voltage charging technology.
9>Wide input voltage design, the remarkable grid adaptability
10>Human friendly large LCD, with plenty operation information.
11>Support sensitive loads like Air Conditioner, Laser Printer etc.
12>Latest Tri-level inverter control tech, whole UPS high efficiency ≥94%.
13>auto restart after utility power restore when ups shutdown due to battery low.
14>True on-line double conversion technology with advanced microprocessor control.
| Queen Star Plus Series 6K - 10K Technical Specification |
| Index | Q6K Plus | Q6KL Plus | Q10K Plus | Q10KL Plus | Comments |
| Input |
| Input voltage |
| Rated voltage | 220VAC | |
| Phase | Single phase with ground | |
Turn on
voltage range | (120±5~274±5)VAC | |
Bypass
voltage range | (60±5~300±5)VAC | Could be adjusted
by software. |
Bypass low
loss | 60VAC~220VAC(default 60VAC) |
Bypass low
comeback | Low loss +5VAC |
Bypass high
loss | 220VAC~300VAC(default 300VAC) |
Bypass high
comeback | High loss -5VAC |
Line low loss
/comeback | (120±5) VAC /(140±5) VAC | load≤50% |
| (150±5) VAC /(165±5) VAC | 50% |
| (160±5) VAC /(175±5) VAC | 80% |
Line high
loss/comeback | (274±5)VAC/(260±5)VAC | |
| Input frequency |
| Rated frequency | 50Hz | |
| Frequency low loss | (40~49) ±0.2Hz(default:46Hz) | Could be adjusted
by software. |
Frequency low
comeback | Frequency low loss +0.5Hz |
Frequency high
loss | (51~60)±0.2Hz(default:54Hz) |
Frequency high
comeback | Frequency high loss -0.5Hz |
| Input power factor |
It power
factornpu | > 0.99 | Q6K Plus & Q6KL Plus:
220VAC, full R load
Q10K Plus & Q10KL Plus:
full R load |
| Generator | Support generator input | Generator rating
≥2*UPS rating |
| Input current |
| Rated current | 25A | 27A | 41A | 43A | |
| Input THDI | 10% | |
| Output protection |
| Rating protection | 32A Breaker | 50A Breaker | |
| Output power | |
| VA/watt | 6000/4800 | 10000/8000 | |
| Rated voltage | 220VAC | Sine wave |
| Voltage range | 200/208/220/230/240VAC | Q6K Plus & Q6KL Plus:
Could be adjusted by
software. 10% derating
for 208VAC/200VAC. |
| Voltage regulation | ±1% | |
| Voltage distortion | ≤6% | Full RCD load |
| ≤2% | Full R load |
| DC offset | ≤200mV | |
| Transient response | ≤9% | R load 0%~100%~0% |
| ≤6% | R load
20%~100%~20% |
| Transient recovery | ≤60ms voltage recovery to 90% | Full RCD load |
Bypass output
before turn-on | YES | |
| Crest ration | 3:1 | |
| Output frequency range |
| Normal mode | 1,Same as input frequency(46Hz~54Hz)
2,50Hz(Input frequency>54Hz or Input frequency<46Hz) | |
| Battery mode | (50+0.1) Hz | |
| Slew rate | 1 Hz/Sec | |
| Efficiency |
| Normal mode | > 93% | |
| Battery mode | > 91% | |
| Overload |
Normal mode/
battery mode | Overload warning only | 105%±5%≤load |
| 1min,then transfer to bypass and alarm. | 105%±5%125%±5% |
| 30S,then transfer to bypass and alarm. | 125%±5%135%±5% |
| 100mS, then transfer to bypass and alarm. | load>135%±5% |
Automatically
retransfer | YES | |
| Short protection |
Normal/
battery mode | YES | |
| Transfer time |
Normal to
battery mode | 0mS | 0mS | |
Battery to
normal mode | 0mS | 0mS | |
Normal to
bypass mode | <4mS | 0mS | Q6K Plus & Q6KL Plus:
0mS (option)with load |
Bypass to
normal mode | <4mS | 0mS |
| Battery and charger |
| Battery |
| Rated voltage | 192VDC | |
| Type/Rating | Sunshine 7AH/12V | | Sunshine 9AH/12V | | |
| Battery quantity | 16 PCS | | 16 PCS | | |
| Backup time | > 14min | | >8min | | Half load |
| Protection |
Low alarm voltage/
comeback voltage | (180.8V±4V)/ (188.8V±4V) | |
Shutdown voltage/
comeback voltage | (176V±4V)/ (184V±4V) | (176V±4V)/ (184V±4V) | (176V±4V)/ (184V±4V) | (176V±4V)/ (184V±4V) | Load < 1000W |
| (152V±4V)/ (160V±4V) | (160V±4V)/ (168V±4V) | (152V±4V)/ (160V±4V) | (160V±4V)/ (168V±4V) | Load>= 1000W |
| DC protection |
Overcharge
protection/
comeback voltage | (249.6V±4V) / (216V±4V) | |
| Leakage current | < 500uA | |
Over discharge
protection | 14.5h | Could be set by software |
| Battery test |
| Battery weak | YES | |
| Battery fault | YES | |
| Charger |
| Output voltage | (219.2±3)VDC | |
| Charge time | 7 hours to 90% capacity | | | | |
| Charge current | 1A | 5.5A | 1A | 5.5A | |
| Interface |
| Alarm silence | YES | |
DC power
turn-on | YES | |
Automatically
retransfer | YES | |
| Audio alarm |
| Battery mode | Beep/4s | |
Battery low/
charger fault | Beep/1s | |
| UPS fault | Continue beep | |
| Overload | Beep/1s | |
| Bypass mode | Beep/2Min | |
| L/N inverse | Beep/2Min | |
| Communication |
| RS232 interface | YES | |
| Intelligent slot | YES | |
| Monitor software | Appending with UPS | |
| Cooling |
| Force air cooling |
| Display |
LCD/LED
displays UPS
status | | | | | |
| Environment |
Work
temperature | 0ºC~40ºC | |
| Altitude | <1000m | |
| Audible noise | ≤55dB | ≤60dB | |
Storage
temperature | -15ºC~45ºC | |
| Work humidity | 20%~95% | |
| Standard |
| EMS |
| ESD | IEC61000-4-2 | Level4 |
| RS | IEC61000-4-3 | Level3 |
| EFT | IEC61000-4-4 | Level4 |
| Surge | IEC61000-4-5 | Level4 |
| EMI |
| Conducted | EN55022 | Class B |
| Radiated | EN55022 | Class B |
| Safety |
| Safety | GB4943-2001/IEC62040-1 | |
| Transportation |
| Drop test | GB-T4857-18 | |
| Vibration test | B-WR1-129(GB-T14715-93) | |
| Machinery features |
| Size |
| Outline dimension and net weight |
| L*W*H(mm) | 533*260*560 | 425*190*328 | 533*260*560 | 533*260*501 | |
Net weight
(Kg) | 55kg | 12.2kg | 62kg | 21kg | |
| Optional functions |
| 60Hz | Optional | Set by software |
| Converter mode | Optional | Set by software |
| ECO | Optional | Available and set by software |
| EPO | Optional | |
| LCD display | Optional | |
