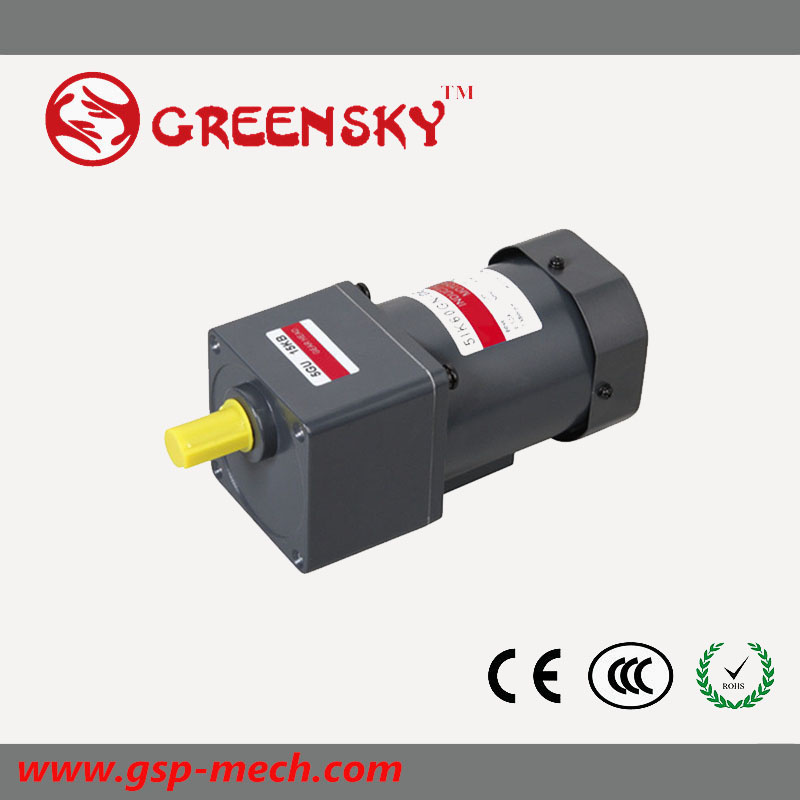

220V 60W 90mm AC Gear Motor with Reducer

Prod Model:	GS5IK60GN-C
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
All Technical Data:	Can Be Customized
Size:	60mm~104mm
Number Of Stator:	Single-Phase
Function:	Driving
Certification:	CE
Brand:	GS

Product Description

60w 90mm AC Induction Motor

Introduction

Generally,Mirco induction motor refers to the motor rotated by the induction.Induction motor relies on capacitor and eletromagnetism when starting and rotating.Though its starting torque is not very high, it has a simple structure,high efficiency and can rotate continue.

Specification


Model		Output power W	Voltage V	Frequency Hz	Current A	Starting Torque mN.m	Rated Torque mN.m	Rated Speed r/min	Capacitor μF
Pinion Shaft	Round Shaft
GS5IK60GN-A	5IK60GN	60	1ph100	50	1.00	320	470	1250	20.0
				60	1.10	320	380	1550
GS5IK60GN-E	5IK60GN	60	1ph110	60	0.80	300	380	1550	12.0
			1ph120		0.85
GS5IK60GN-C	5IK60GN	60	1ph220	50	0.50	340	470	1250	4.0
			1ph230		0.55
GS5IK60GN-H	5IK60GN	60	1ph220	60	0.50	340	380	1550
			1ph230		0.55	340
GS5IK60GN-S	5IK60GN	60	3ph220	50	0.45	470	470	1250	-
				60	0.40	380	380	1550

Note:
Motor voltage, power and speed will be customized according to your request under the allowed circumstance of adoptable dimension.
