| Prod Model: |
F21-6D |
| Product Name: |
Wireless Radio Remote Controller |
| Certificates: |
Ce,FCC,ISO |
| Speed: |
Double Speed |
| Buttons: |
6 |
| Protection Degree: |
IP65 |
| Control Distance: |
up to 100m |
| Packing Size: |
33*23*17cm(Including Inner Carton) |
| Net Weight: |
2.5 Kg (Incluing Inner Carton) |
| Packing Details: |
1 Set/Inner Carton,10 Sets/Outer Carton |
| Shipping: |
International Express |
| Application: |
Material Handling Equipment,Lifting Euipment |
| Signal Transmission: |
RF Remote Control |
| Type: |
Button |
| Certification: |
CE |
| Universal: |
Universal |
| Transmission Distance: |
>100m |
| Battery Type: |
AA Battery |
| Voltage: |
AC380V,220V.48V,36V,24V etc. |
| Material: |
Glass Fiber |
Product Description

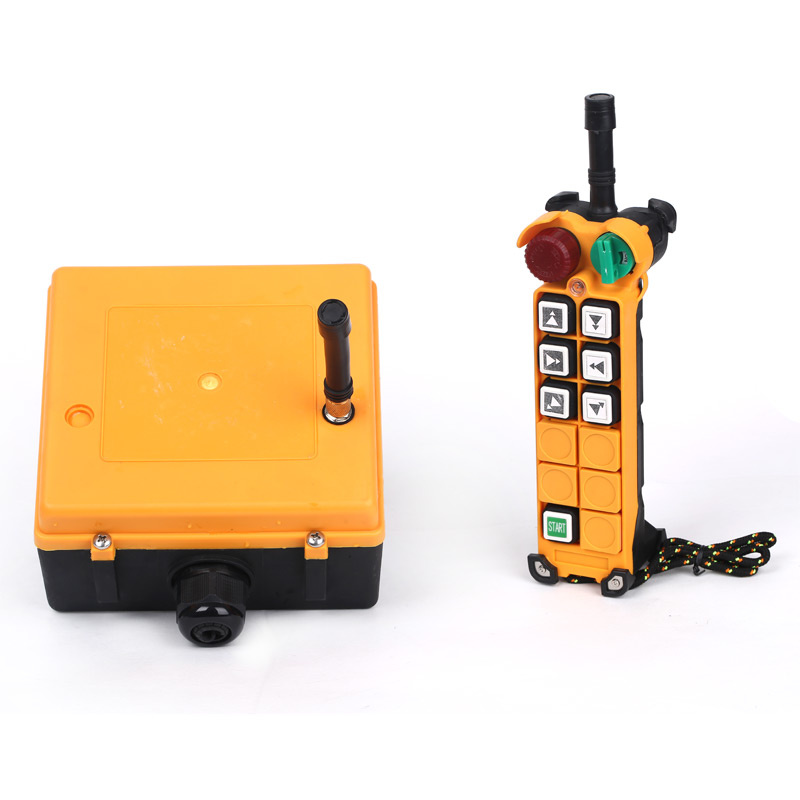

220V double speed push buttons wireless remote control F21-6D
Applications of remote controller for crane:
Single hook electric cable hoist,monorails,single speed electric hoist or electric single speed hoist crane,and used for the industrial remote control which are under 10 connection.
Features of wireless remote controller:
· Control points up to 10.
· With the battery voltage alarm device to cut off the circuit when voltage is insufficient.
· Set the internal functions by computer Interface.
· UP/DOWN,EAST/WEST,SOUTH/NORTH push buttons can be set ordinary,jump strokes,mutural inhibition or not.
Technical Specifications:
| Unique I.D.Code | over 4.3 billion |
| Numbers of Buttons | 6 Double Speed buttons,1 START button,1 MUSHROOM button |
| Button Marking | arrow tip |
| Transmitter Power Supply | two 1.5v Batteries(AA size) ( up to 3 months usage) |
| Receiver Power Supply | AC380V/220V/110V/48V/36V/24V/12V OR DC12V |
| Relays | 10 Relays control Functions,1 relay control EMS and 1 relay reserve |
| Output relays | 5Amp Omniseal Relays(AC250V/10A relays,10Amp fuse) |
| Operating Frequency | 310.0325-331.1650MHz(VHF) |
| Channel Spacing | 0.2675MHz |
| Working Temperature | -35ºC~ +85ºC |
| Interface | Cable Output |
| Protection Degree | IP65 |
| RF Power | <10DBm |
| Channel | 80CH |
Standard Configuration:
One Transmitter(with strap),
One Reiceiver,
Receiver with 1m Cable,
One Operation and maintain manual
Our Products Advantages:
All the products have got CE,FCC,ISO certificate.
All operate process according to ISO9001:2008 and international quality control system.
Easy to operate to keep workers safety.
One year warranty.
OEM orders can be acceptable.
Company Information
HENAN DIRK ELECTRONIC CO.LTD (predecessor HENAN YUDING ELECTRONICS CORP., LTD) is an industrial radio remote controls system manufacturer in china .established in August, 2010,With more than 10 years experience on this industrial remote control system business area. headquartered in Zhengzhou, Henan province. Yuding has so many experts in the industrial radio remote controller area to assure workers safety and productivity , Yuding are becoming one of the leading companies in this industry in china. Our main products is :F21 Series radio remote controls ,F23 series radio remote controls ,F24-60 Dual Joystick radio remote control .all these remote controls are easy to operate to keep workers safety and productivity.All These products are CE & FCC Certificate . Quality is company's life. From the raw material testing, manufacturing, aging test and assembly , Each process are operate according to ISO9001:2008 & international quality control system to guarantee the products quality.competitive price with excellent quality and good after-sales service make our Internal customers are covered Over 400 cities of 33 provinces.we also have built long-term business relationship with the foreign customers.

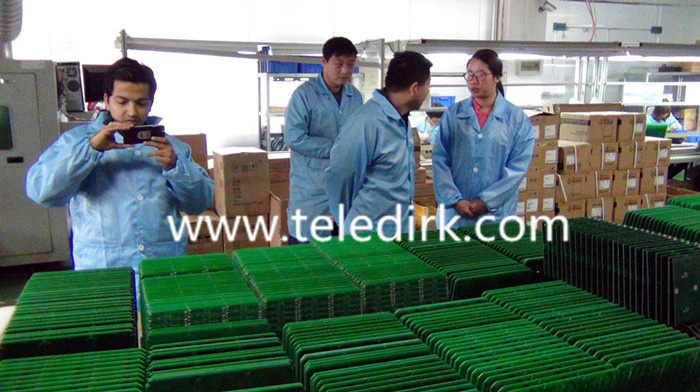

Customer visit Factory:
Certificates:
Henan Dirk Electronic Co. Ltd (former Henan Yuding Electronics Crop., Ltd) is an industrial radio remote controls manufacturer in China. Established in August, 2010, With more than 10 years experience on this industrial remote control system business area. Headquartered in Zhengzhou, Henan province. Dirk has so many experts in the industrial radio remote controller area to assure quality and productivity, Dirk are becoming one of the leading companies in this industry in China.
Our main products is: F21 Series radio remote controls, F23 series radio remote controls, F24-60 Dual Joystick radio remote control and explosion-proof remote controls. All these remote controls are easy to operate to keep workers safety and Efficient. All our products are CE & FCC & ISO Certificate.
Quality is company's life. From the raw material testing, manufacturing, aging test and assembly, Each process are operate according to ISO9001: 2008 & international quality control system to guarantee the products quality. Competitive price with excellent quality and good after-sales service make our Internal customers are covered Over 400 cities of 33 countries. We also have built long-term business relationship with the foreign customers.
We here sincerely hope to establish partnership with you and your esteem company.
