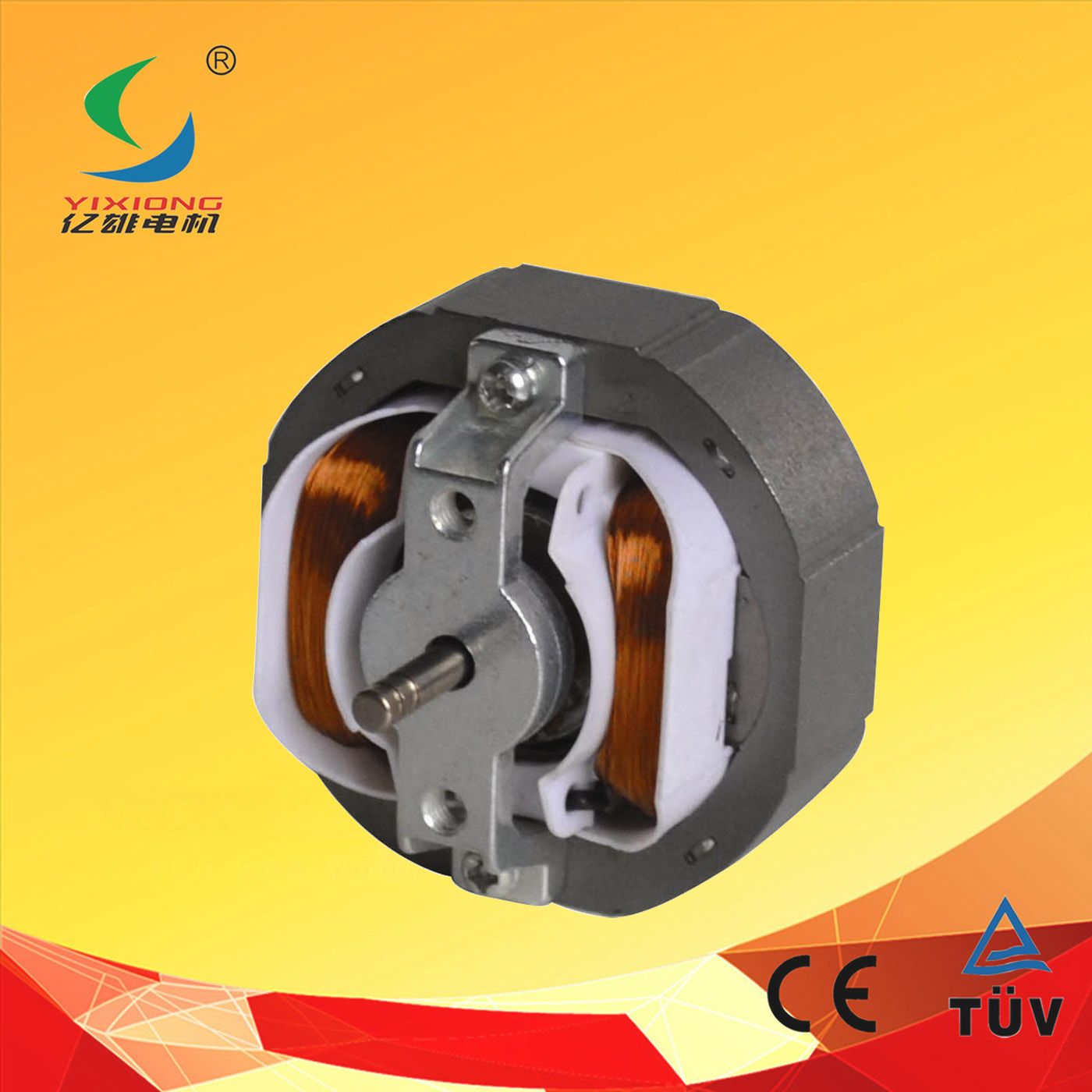

220V Fan Motor Use on Ventilation Systems

Name: 220V Fan Motor Use on Ventilation Systems
Brand: all-electronics-online.com
SKU: 824378765
Availability: InStock
Rating: 4.5 (33 reviews)

Price:	US $ 1-1.2/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Product Name:	220V Fan Motor
Keywords:	220V Fan Motor
Motor Type:	Shaded Pole Motor
Core Material:	Silicon Sheet
Winding Wire:	Copper
Protector Type:	Temperature Protection
Speed Value:	Max Three Level
Voltage Supply:	AC
Application:	Household Appliances
Operating Speed:	Constant Speed
Number Of Stator:	Single-Phase
Rotor Structure:	Squirrel-Cage
Casing Protection:	Open Type
Species:	Shaded Pole Motor
Starting Mode:	Industion Start
Certification:	Ce UL
Brand:	Yixiong

Product Description

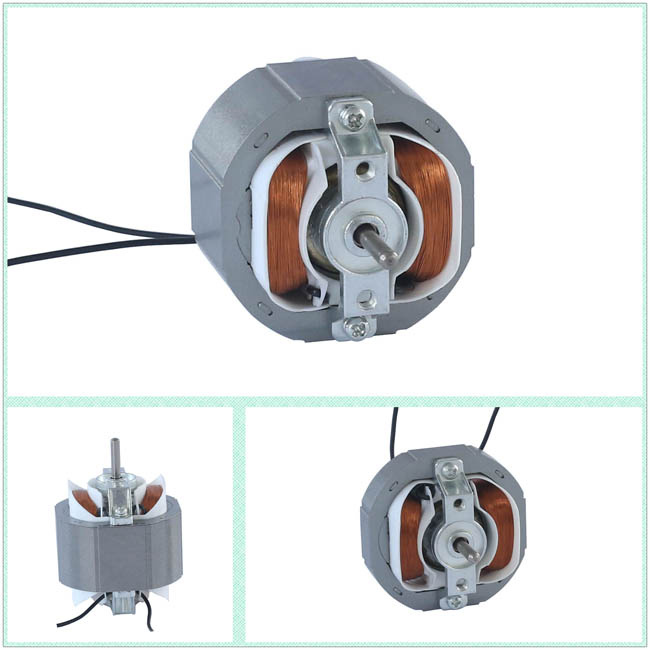

220V Fan Motor Products Discription :

Supply voltage: 110-240V AC; 50-60Hz; 110/220V 50-60Hz
Suitable Shaft Dia.:4 mm, Shaft length as your request
Stack size: Max dia: 58mm, thickness :8-35 mm;
Mounting size: M4, disctance of hole is 28mm,

Rotation from shaft extention : CW or CCW;
Lead wire: model and length are as your request
Bearing style:Sleeve bearing or Ball Bearing are both available;
Insulation Class: E / B / F
Protection type: Temperature protection
Sound level:≤45 dB(A);
Life:3000 Hours Min;

Note:
1. The available model is YJ5810,YJ5812, YJ5816, YJ5820, YJ5825, YJ5830.
2., Every model is three kinds, For example YJ5812, please see following:

Model	Supply Voltage	Speed level	Insulation Class	Input Power	Shaft design	Lead wire
YJ5812A	220v 50Hz	High /Low	E /B / F	as your request	as your request	as your request
YJ5812B	120V 60Hz	High /Low	E /B / F
YJ5812C	230V 50HZ/127V 60Hz	High	E /B / F

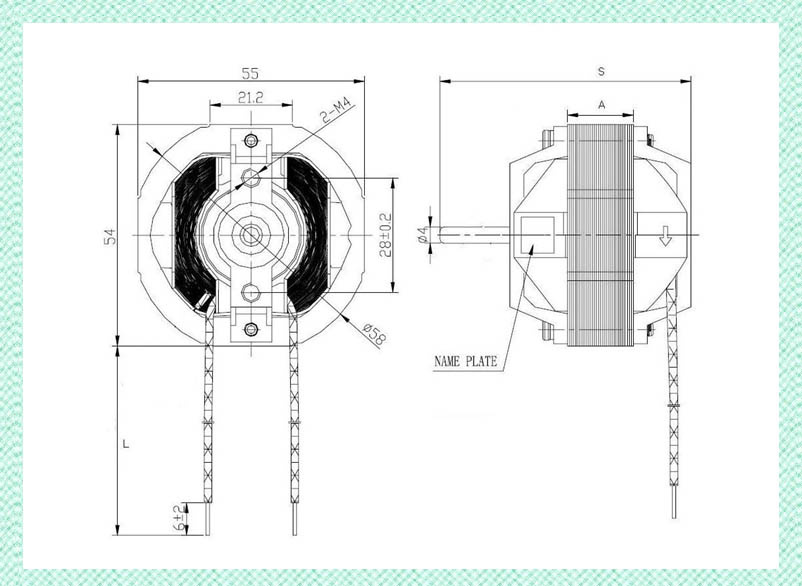

Drawing

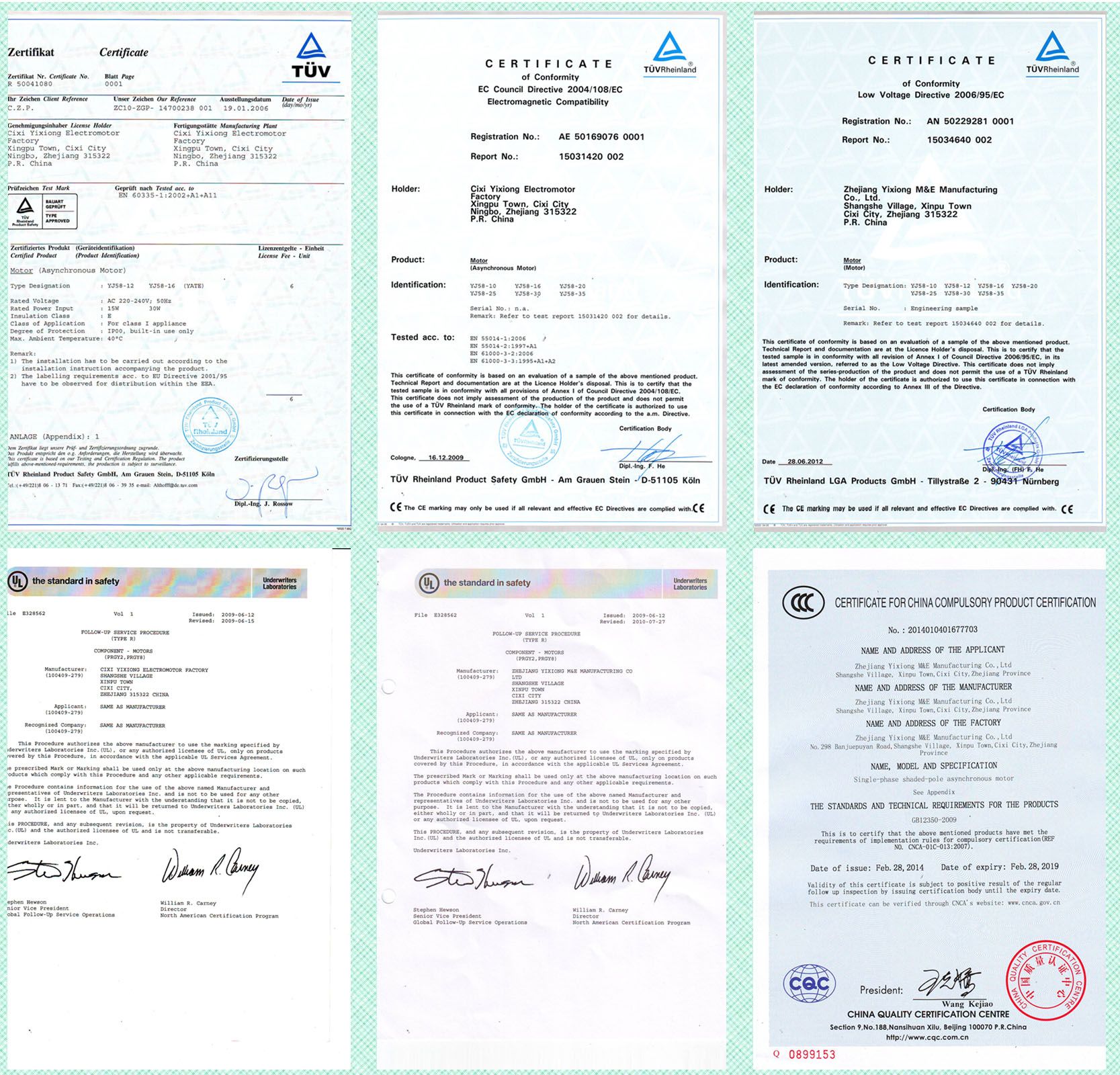

Certificate

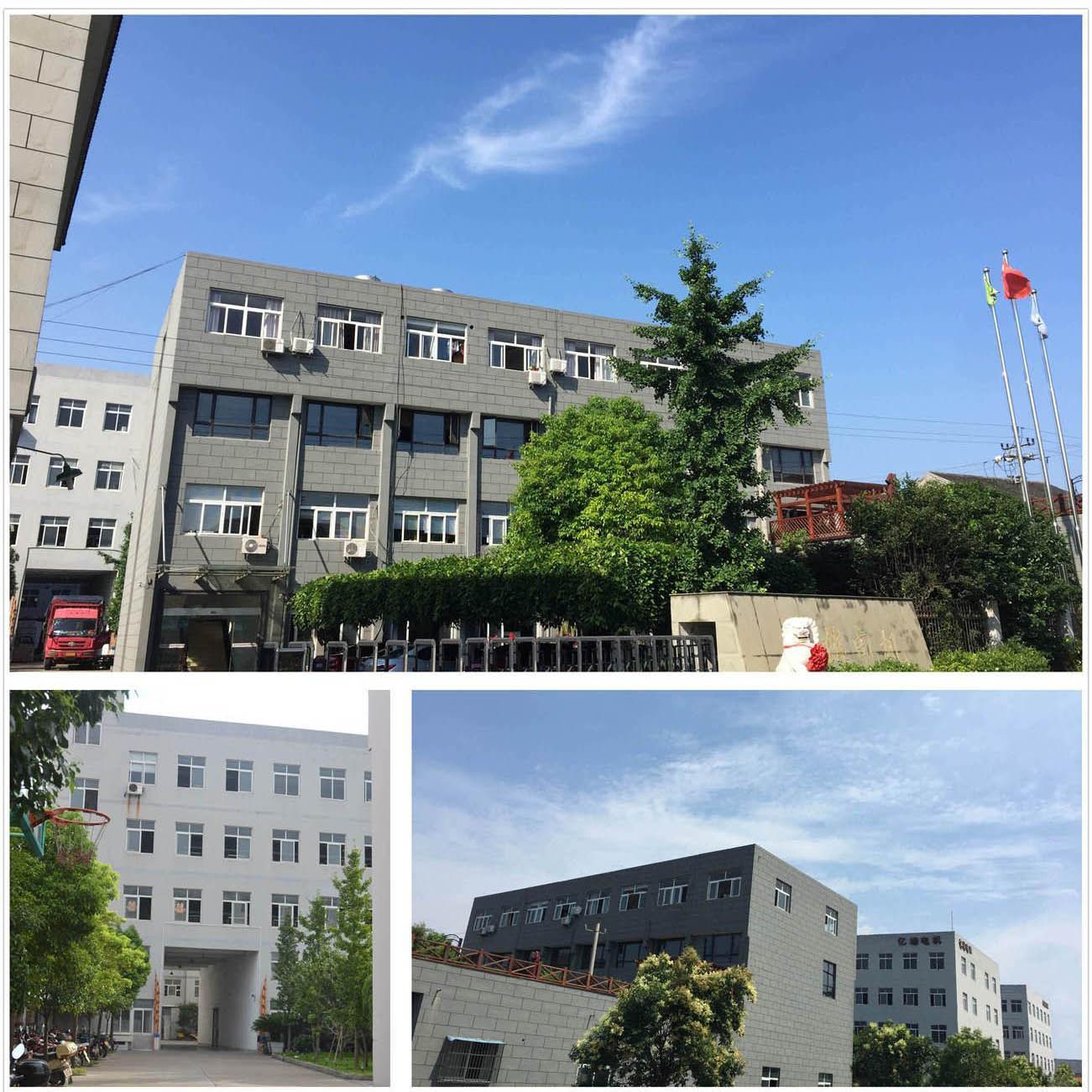

Factory Image

Contact us

Established in 1990s, Zhejiang Yixiong M&E Manufacturing Co. Ltd is manufacturer specializing in Single Phase Shaded Pole Motor. Our products are widely applied in household appliances, ventilation systems and equipment of condensation etc.

We are located in Cixi, Ningbo, China, which is the second biggest household electrical appliances production base, 50 kilometers east from Ningbo Harbor, adjoining Shanghai by the longest sea-crossing bridge of the world----Hangzhou Bay Bridge in the north, with geographical superiority and easy of access. The area of factory is 20000 sq. M, and there are more 500 employees.

The company operates strictly in accordance with ISO9001-2000 "Quality Control System" from design to sales. Our products are approved CE, TUV, UL etc, and are sold to all parts of country at home, and export to Japan, Korea, America, Russia, Middle East, Europe, some country from Southeast Asia in a large amounts. We win believe in and support from our customer for good quality, reasonable prices, complete hospitality service, and have a well name.

More serve our god, we accept OEM/ODM plan in precision stamping parts, precision injection plastic, precision casting etc.
