Zhejiang Yixiong M&E Manufacturing Co., Ltd. >> 220V Heater AC Motor with Low Temperature Rise

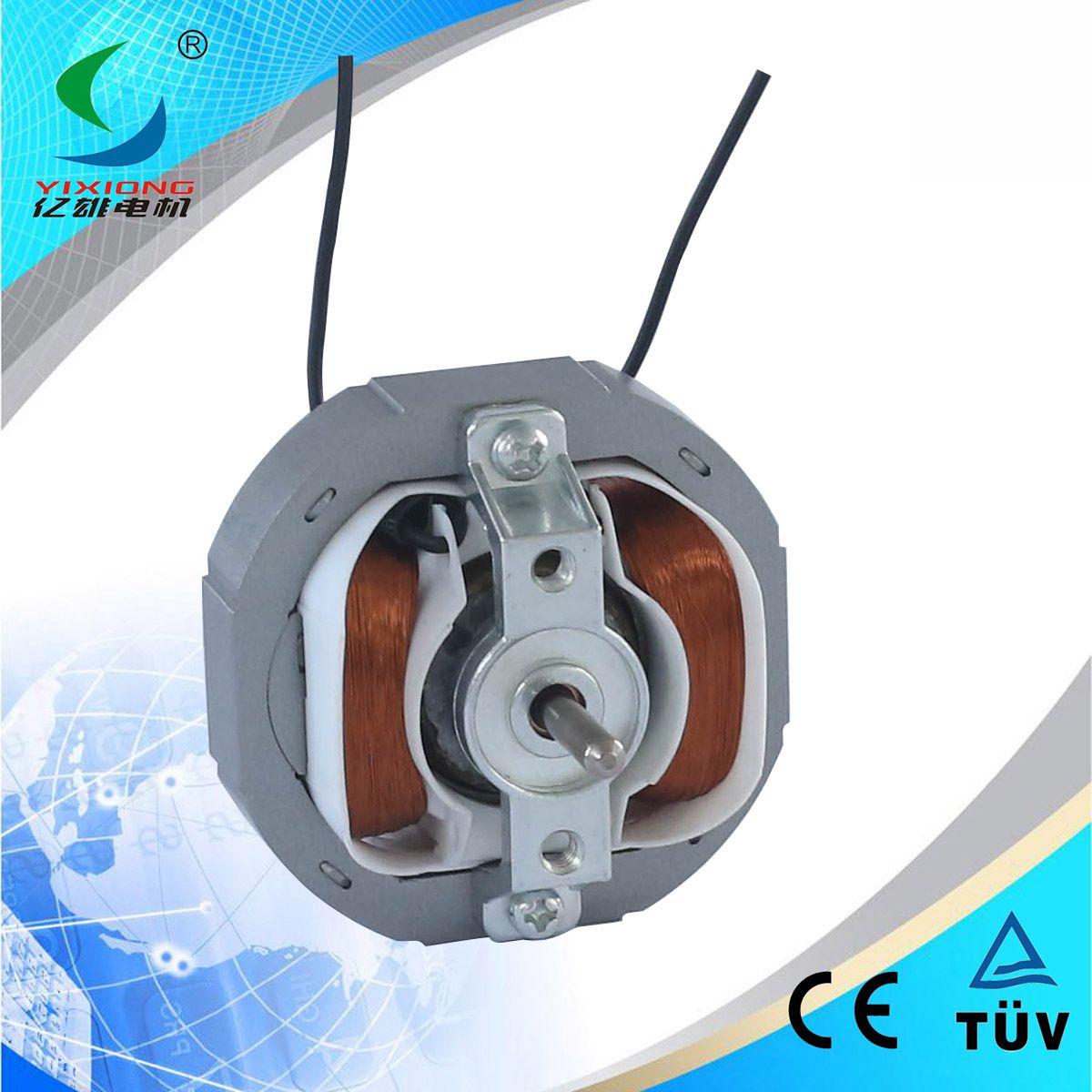

220V Heater AC Motor with Low Temperature Rise

220V Heater AC Motor with Low Temperature Rise
Price: US $ 1-3.5/Piece
Min Order: 1000/Piece
Pay Type: L/C,T/T
Supply Voltage: 220-240V 50Hz 100-120Hz 60Hz
Core Material: Sillicon Sheet
Wire Material: Copper
Protection: Over Heater Protection
Number Of Stator: Single-Phase
Function: Driving
Application: Household Appliance
Starting Mode: Induction
Certification: Ce TUV UL
Brand: Yixiong

Product Description

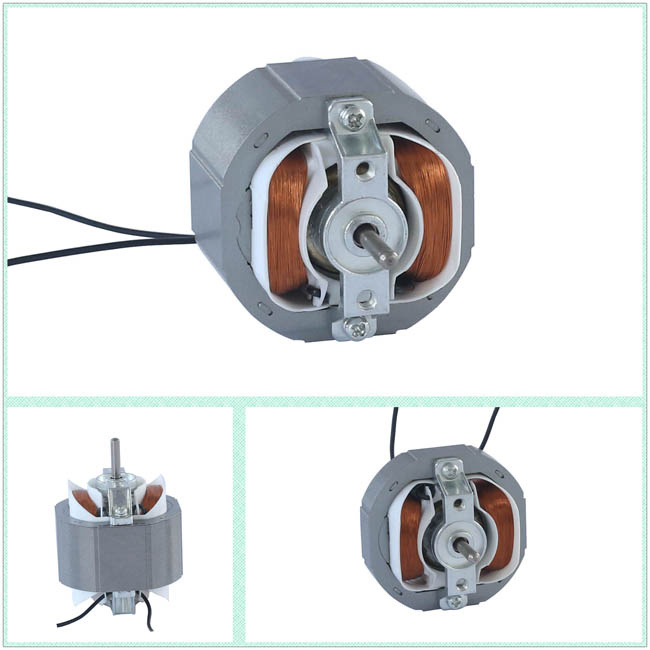

Heater AC Motor Specification
Motor size:
1. Stator diameter: 58mm
2. Shaft diameter: 4mm
3. Shaft length: As your request
4. Lead wire: 2*300mm, also can be made according to your demands
5. Number of pole: 2 pole
6. Rotation: CW/CCW

Application
1. Can be used ventilation fan motor, box fan motor, etc
2. Safe and reliable, low noise, characteristics hard, good starting, long life, etc.
3. It can be designed and produced as your request.
ModelVoltageFrequencyCurrentPowerSpeedClass
YJ58-10110/220 VAC50-60 Hz 0.09 A 12.0 W2400 RPM E/B/F
YJ58-12110/220 VAC50-60 Hz 0.10 A 14.0 W 2800 RPME/B/F
YJ58-16110/220 VAC50-60 Hz 0.10 A 15.0 W 2300 RPME/B/F
YJ58-20110/220 VAC50-60 Hz 0.16 A 20.0 W 1750 RPME/B/F
YJ58-25110/220 VAC50-60 Hz 0.17 A 22.0 W 2400 RPME/B/F
YJ58-30110/220 VAC50-60 Hz 0.20 A 24.5 W 2500 RPME /B/F
YJ58-35110/220 VAC50-60 Hz 0.22 A 30.0W 2500 RPME/B/F





Production

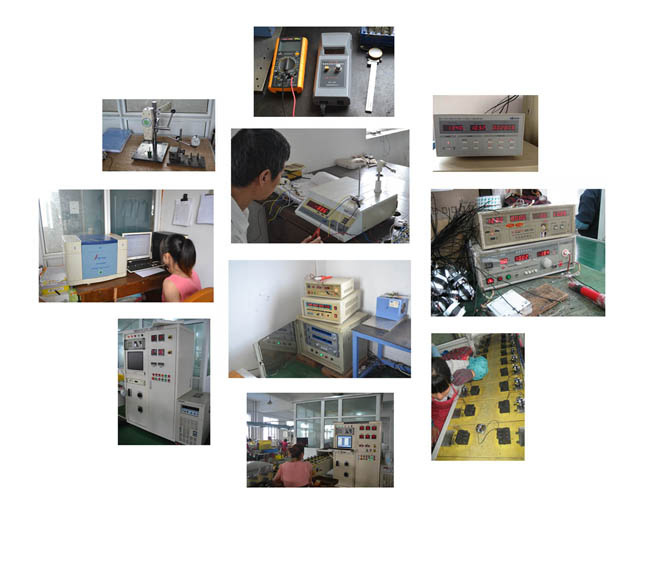

Inspection


Contact us



Established in 1990s, Zhejiang Yixiong M&E Manufacturing Co. Ltd is manufacturer specializing in Single Phase Shaded Pole Motor. Our products are widely applied in household appliances, ventilation systems and equipment of condensation etc.

We are located in Cixi, Ningbo, China, which is the second biggest household electrical appliances production base, 50 kilometers east from Ningbo Harbor, adjoining Shanghai by the longest sea-crossing bridge of the world----Hangzhou Bay Bridge in the north, with geographical superiority and easy of access. The area of factory is 20000 sq. M, and there are more 500 employees.

The company operates strictly in accordance with ISO9001-2000 "Quality Control System" from design to sales. Our products are approved CE, TUV, UL etc, and are sold to all parts of country at home, and export to Japan, Korea, America, Russia, Middle East, Europe, some country from Southeast Asia in a large amounts. We win believe in and support from our customer for good quality, reasonable prices, complete hospitality service, and have a well name.

More serve our god, we accept OEM/ODM plan in precision stamping parts, precision injection plastic, precision casting etc.
