Shenzhen UPSEN Electronic Co., Ltd. >> 220V LCD Display Computer Online UPS with CE Approval

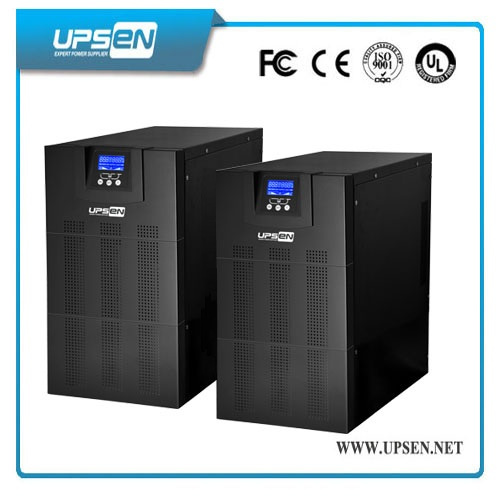

220V LCD Display Computer Online UPS with CE Approval

220V LCD Display Computer Online UPS with CE Approval
Price: US $ 1-200/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 5/Piece
Pay Type: L/C,T/T,Western Union,Money Gram
Prod Model: Queen Star Series 6-20 Kva
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power Factor: ≥0.99
Frequancy: 50Hz or 60Hz (Auto Sensing)
Transfer Time: 0ms
Wave Form: Pure Sine Wave
Phase: Single Phase
Type: On-line
Protection: Overvoltage
Brand: Upsen

Product Description

220v  LCD display Computer Online UPS with CE approval
Model: High Frequency Online UPS Queen Star Series 6-20 Kva (1ph in/1ph out)

Key Features:
1:Input Power Factor Correction
2:Optional Emergency Power Off (EPO)
3:DSP Double-Conversion On-line Sinewave Design
4:Easy to Install & Easy to Operate & Easy to Solve
5:Low initial investment and flexible for future expansion
6:Smart RS232 communication with monitoring software
7:LCD Display with Advanced Monitoring for Easy UPS Management
8:Comprehensive display allows easy monitoring and access of UPS status
9:Battery Priority Mode, Designates the Inverter-Preferred UPS Configuration
10:Power factor corrention for charger,less power consumption than conventional units
On Transfer
11:With high speed switch, high voltage, large current, makes efficiency higher, driver circuit smaller, and improve the system efficiency and reliability

Applications
Television,Video Recorder,Education System,Medical Equipment,Financial System,Securities System,Outdoor lighting,Microwave Oven,Cooking etc.

Technical Specification

Queen Star Series Q6K-20Kva

ModelQ6KQ6KLQ10KQ10KL31Q10KL31Q15KL31Q20KL
Capacity6KVA/4800W10KVA/8000W15KVA/12KW20KVA/16KW
InputNominal Voltage220/230/240Vac380/400/415Vac
Voltage Range176~276Vac (1P2W+G)304~478Vac (3P4W+G)
Current 31A (max)50A (max)50A (max)75A (max)100A (max)
Frequency46~54Hz/56~64Hz
Power Factor≥0.99
OutputVoltage220/230/240± 2%Vac  (1P2W+G)
Frequency50/60Hz(adjustable)                                                                                      50/60Hz± 5% (Line mode)
50/60Hz ± 0.05Hz ( Battery mode)
Current 27.3A45A68A91A
Power Factor0.8lag
WaveformPure Sine Wave
Waveform DistortionLine load <2%Line load <3%
Back-up TimeFull Load≥7′Depends on external batteries bank's Capacity≥5′Depends on external batteries bank's Capacity
Half Load≥20′≥13′
Battery Nominal Voltage192/240Vdc
Transfer Time0ms
Overload Capacity >105% 1min, >120% 30s transfer to bypass, shut down in 1min
CommunicationSNMP,RS-232,USB+Intelligent Slot
Operating EnvironmentTemperature0C~40ºC
Humidity15%~90%
DimensionWidth (mm)260260260260260
Depth (mm)560533560533560
Height (mm)717501717501717
Net Weight(Kg)68187020283030
*Specification are subject to change without prior notice




Shenzhen UPSEN Electronic Co., Ltd. Which is located in south of China, Shenzhen City, close to Pearl of the Orient HK, with beautiful environment and convenient transport.

We are a private high-tech enterprise integrating researching & development, production & operation and technical services as a whole, which is specialized in Electric, Electronic and Energy fields for a long time. Our main products are UPS Power, Inverter Power, Battery Power, Solar&Wind Power. We are dedicated to offer quality power and power solution for Data-center, Telecom, Bank, Hospital, Transportation, Industry, Army, Security, and civil & office area etc. Moreover, we have mastered the core technology of power products through our independent research, we are one of few domestic enterprises which can meet the customers' customized requirements, and provide professional power solutions.

We already past ISO9001 international quality system certification, and established a complete quality system ranging from material source, process, assembling to testing. All our products are with CE Certificate, which exported to more than 30 countries and areas, like Australia, Europe, Africa, North America, South America, the Middle East, central Asia, southeast Asia etc.

We will always offer excellent quality and products to customers. Hope to make Integrity and Double-Win business with you, and to be your professional power supplier and solve your any power problems. We are sure UPSEN can achieve more successes with our efforts and your support.
