Shenzhen UPSEN Electronic Co., Ltd. >> 220V Power Inverter with Remote Control Function

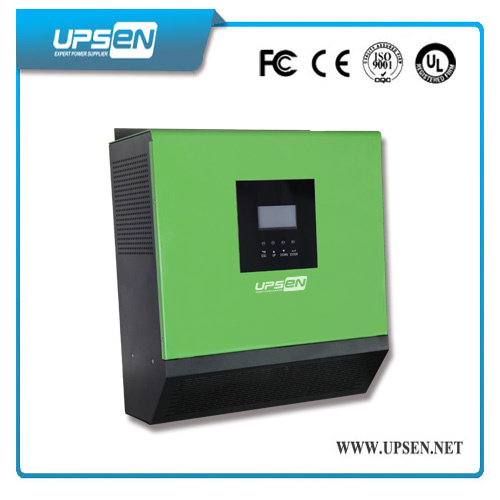

220V Power Inverter with Remote Control Function

220V Power Inverter with Remote Control Function
Price: US $ 1-200/Piece
Min Order: 5/Piece
Pay Type: L/C,T/T,Western Union,Money Gram
Prod Model: RS series
Color: Green
Input Voltage: 208/220/230/240 VAC
Frequency: 50Hz or 60Hz
Output Voltage: 120/220/230/240VAC
Power Factor: 0.9-1.0
Phase: Single
Power Source: Electric Power & Solar Power & Wind Power
OEM Service: Available
Warranty: 3 Years
Delivery Time: 15 Days

Product Description

220V Power Inverter with Remote Control Function 1000Va-5000Va   (1ph in/1ph out)
Key Features

High frequency full bridge and smart design
Built-in MPPT solar charge controller
Pure sine wave inverter
DC Voltage 12/24/48Vdc for option
Configurable AC/Solar input priority via LCD setting
Compatible to mains voltage or generator power
Selectable input voltage range for home appliances and personal computers
Selectable charging current based on applications
Overload and short circuit protection
Smart battery charger design for optimized battery performance
Parallel operation with up to 6 units only available for 4KVA/5KVA
Auto restart while AC is recovering
Cold start function
Optional Remote Control Panel available
Warranty: 2 Years


Applications
Supply the reliable long back up time power for the home appliances and Portable lights,Alarm systems,Power tools,Control Equipments,Security Systems,Medical Equipments etc


Technical Specification


Model
RS1000 RS2000 RS3000 RS4000 RS5000
RATED POWER1000VA/800W2000VA/1600W3000VA/2400W4000VA/3200W5000VA/4000W
INPUT
Voltage208/220/230/240 VAC
Selectable Voltage Range
170-280 VAC (For Personal Computers) ; 90-280 VAC
 (For Home Appliances)

Frequency Range
50 Hz/60 Hz (Auto sensing)
OUTPUT

AC Voltage Regulation
(Batt. Mode)

230 VAC ± 5%
Surge Power2000VA4000VA6000VA8000VA10000VA
Efficiency (Peak)90~93%93%
Transfer Time10 ms (For Personal Computers) ; 20 ms (For Home Appliances)
WaveformPure sine wave
BATTERY & AC Charger
Battery Voltage24VDC48 VDC
Floating Charge Voltage27VDC54 VDC
Overcharge Protection30VDC60 VDC
Maximum AC Charge Current20A25 A
SOLAR CHARGER

Maximum PV Array Open
Circuit Voltage

60VDC/150Vdc (Optional)
110VDC/150Vdc (Optional)

Mppt Range @
Operating Voltage

25-60Vdc/25-150Vdc (Optional)

60-110Vdc/60-150Vdc
(Optional)

Maximum Solae Charge Current
40/60A60A
Max Efficiency  >96%
Standby Power Consumption2W
PHYSICAL
Dimension, D x W x H (mm)350 x 130 x 340380 x 130 x 465
Net Weight (kgs)7.47.6812.513.5


UPSEN Competitive Advantages
1: Three Years' warranty for Online UPS, and 1% free UPS or 2% free PCB Boards
3: Good after-sales service, we will be full responsible for any faults caused by our side
4: Professional experience in power field more than 10 years
5: Professional technical support before and after sales
6: Timely response, fast delivery time and flexible operations to satisfy any customers' special requests.
7: Free OEM & ODM Service
 8: Competitive price, quality and mature products






Shenzhen UPSEN Electronic Co., Ltd. Which is located in south of China, Shenzhen City, close to Pearl of the Orient HK, with beautiful environment and convenient transport.

We are a private high-tech enterprise integrating researching & development, production & operation and technical services as a whole, which is specialized in Electric, Electronic and Energy fields for a long time. Our main products are UPS Power, Inverter Power, Battery Power, Solar&Wind Power. We are dedicated to offer quality power and power solution for Data-center, Telecom, Bank, Hospital, Transportation, Industry, Army, Security, and civil & office area etc. Moreover, we have mastered the core technology of power products through our independent research, we are one of few domestic enterprises which can meet the customers' customized requirements, and provide professional power solutions.

We already past ISO9001 international quality system certification, and established a complete quality system ranging from material source, process, assembling to testing. All our products are with CE Certificate, which exported to more than 30 countries and areas, like Australia, Europe, Africa, North America, South America, the Middle East, central Asia, southeast Asia etc.

We will always offer excellent quality and products to customers. Hope to make Integrity and Double-Win business with you, and to be your professional power supplier and solve your any power problems. We are sure UPSEN can achieve more successes with our efforts and your support.
