220V Semiconductor Dehumidifier
| Price: |
US $ 120.67-134.23/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
SDCS-E6R |
| Working Voltage: |
AC220V |
| Dehumidifying Efficiency: |
450ml/Day |
| Heating Power: |
50-500W |
| Power: |
60W |
| Working Temperature: |
-25-85 Degrees Celsius |
| Dehumidifying Temperature: |
5-45 Degrees Celsius |
| Working Humidity: |
10~95% Rh |
| Dimension: |
115*67*210mm |
| Weight: |
1.8kg |
| Shell Material: |
Aluminum Alloy |
Product Description

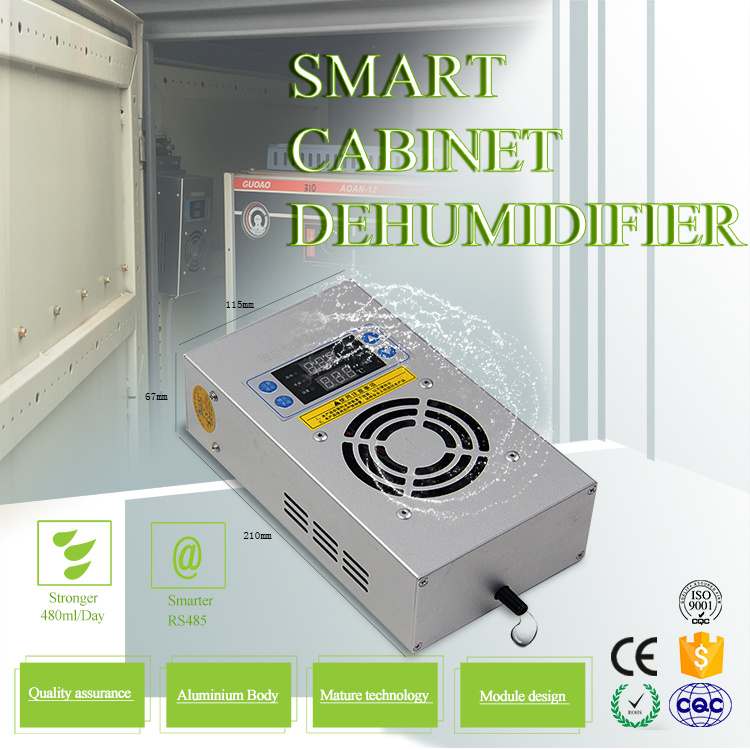

220v semiconductor dehumidifier
Dehumidifier Features:
- Dew-point dehumidification, direct capture of water and discharged outside of the cabinet
- Stronger dehumidifying capacity 450mL/Day
- Visual interface, real-time display of temperature and humidity
- Intelligent humidity control, adjustable humidity control range
- Heating function optional
- With RS485 conmmunication function
Technical data
| Model No: | SDCS-E6R | Name: | Dehumidifier |
| Dehumidifying effeciency: | 450ml/day (60W 35 degree RH=80% working condition | Heating Power: | 50~500W |
| (Optional) |
| Dehumidifying temperature: | 5 degree~45 degree | Power: | 30W, 40W, 50W, 60W |
| Working temperature: | -25°C~85°C | Humidity Measuring Range: | 20% RH~90% RH |
| Temperature measuring Range: | -25°C~125°C | Dehumidify start value: | 45% RH~98% RH |
| (Default 65% RH) |
| Temperature start value: | 1 °C~55 °C | Humidity Measuring accuracy: | ±3% RH |
| (Default 8°C) |
| Temperature Measuring accuracy: | ±3°C | Display Method: | Two lines Three digital display |
| Display Resolution: | 0.1 | Shell Material: | Aluminum Alloy |
| Size: | 115*67*210mm | Water hose: | Silicon tube: D10mm, L1.5m |
| Dehumidifying Range: | 1~2.5m³ | Working Power: | AC90~240V |

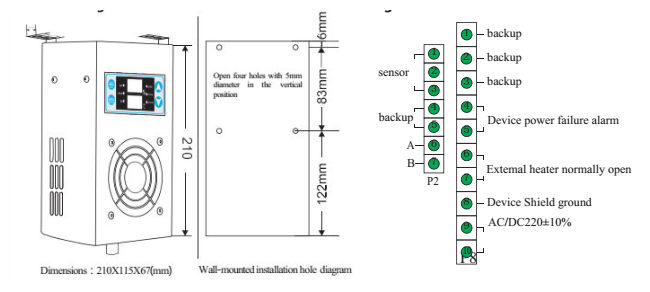

Wiring and installation
1. Using the M5 screws or 5mm rivets to fix. the dehumidifier device must be upright While installing, outlet facing down; 2. Ensure there is a over 5 cm space between the front of dehumidifier and other devices, to ensure the wind is out of the positive fan outlet.
3. Connect one end of the outlet pipe into the dehumidifier device's delivery port,with clamp fixing, keep the middle of the outlet pipe smooth, it can not be wrapped in order to facilitate drainage. The other end leads to the outside of the cabinet.
4. Connect the power supply terminals L / N to AC220V power supply (see wiring diagram).
5. Connect one of the heater's foot to the load L and connect the other foot to the power supply's N foot.
