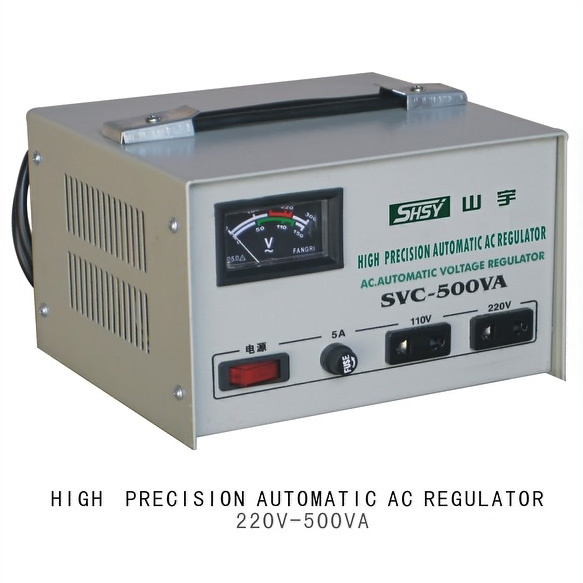

220V Single Phase Voltage regulator/ voltage stabilizer

Prod Model:	SVC- 500VA, 1000VA, 1500VA, 2000VA, 3000VA, 5000VA
Markets:	South America,Eastern Europe,Southeast Asia,Africa,Mid East
Color:	White
Current Type:	AC
Phase:	Single Phase
Usage:	SVC
Frequency:	Low Frequency
Brand:	S

Product Description

1. 220V voltage regulator / regulator voltage / voltage stabilizer ----
SVC- 500VA, 1000VA, 1500VA, 2000VA, 3000VA, 5000VA.

2. CE, ISO9002, SGS, CCC certificates, etc.


3. Features:

SVC fully automatic AC voltage stabilizer includes Contact voltage regulator, sampling control circuit and servo motor. When the input voltage and load change, sampling control circuit will do sampling and amplification, so that the servo motor rotates towards the needed direction and drives the voltage regulator arm, adjusts the voltage until the output voltage meets the rating and so to achieve the purpose of regulation..

This instrument applies to electrical equipments which require regulated power, and is an ideal power supplier in industrial production, scientific research and medical health fields. It has a small power consumption of its own and could be continuously used..

The instrument is small and light; has tiny distortion of output waveform; stable and reliable. To ensure product quality, we introduc foreign advanced technology and imported key parts from abroad.

Input voltage	160-250  Ultra-low voltage 130-250V
Output voltage	220±3%  with 110V output
Phase	Single-phase
Frequency	50-60Hz
Adjustment time	Less than 0.5s   Input voltage change 10%
Rated output current	0.5KVA	1KVA		2KVA	3KVA	5KVA	10KVA		15KVA	20KVA
	2A	4A		6A	8A	12A	20A		28A	40A
Ambient temperature	-5 degree   to   40 degree
Temperature rise	Less than 60 degree
Relative humidity	Less than 90%
Waveform distortion	No additional distortion
Efficiency	More than 90%
Pressure	Meet part standards
Model specifications			Machine size  mm					Weight  kg
SVC Single-phase 500VA			190×190×140					5
1000VA			225×225×160					8
1500VA			225×225×160					9
2000VA			245×260×205					12
3000VA			225×285×260					15
5000VA			245×460×200					25
7000VA			280×320×580					40
10000VA			280×320×580					40
15000VA			335×400×640					45
20000VA			435×400×880					45
30000VA			510×330×910					90
