Shanghai Feilong Meters & Electronics Co., Ltd. >> 220V Stc-1000 Digital Temperature Controller Thermostat Regulator+Sensor Probe Switch The Modes Between Cool and Heat

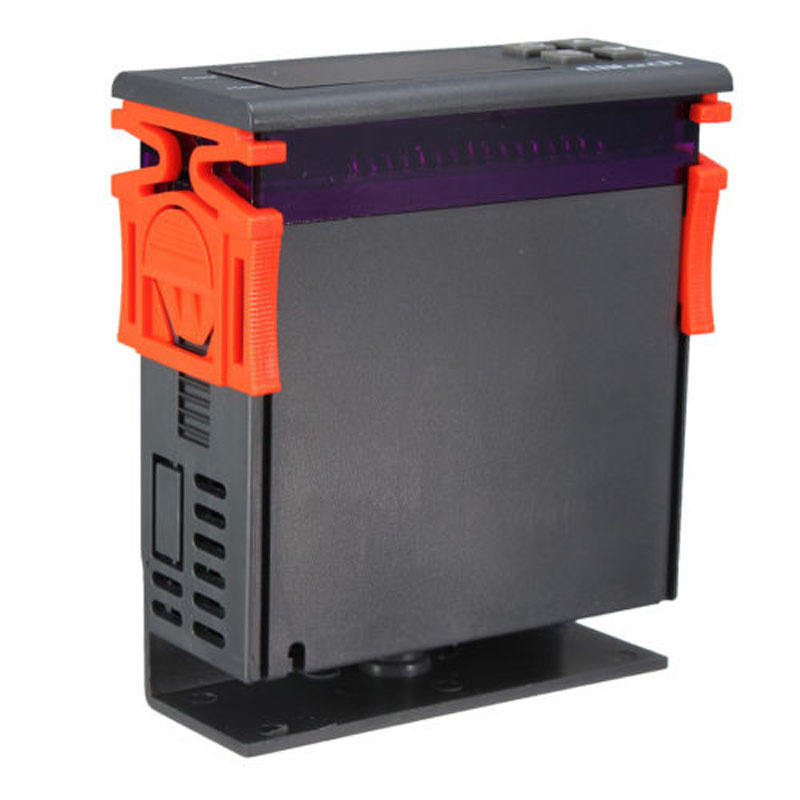

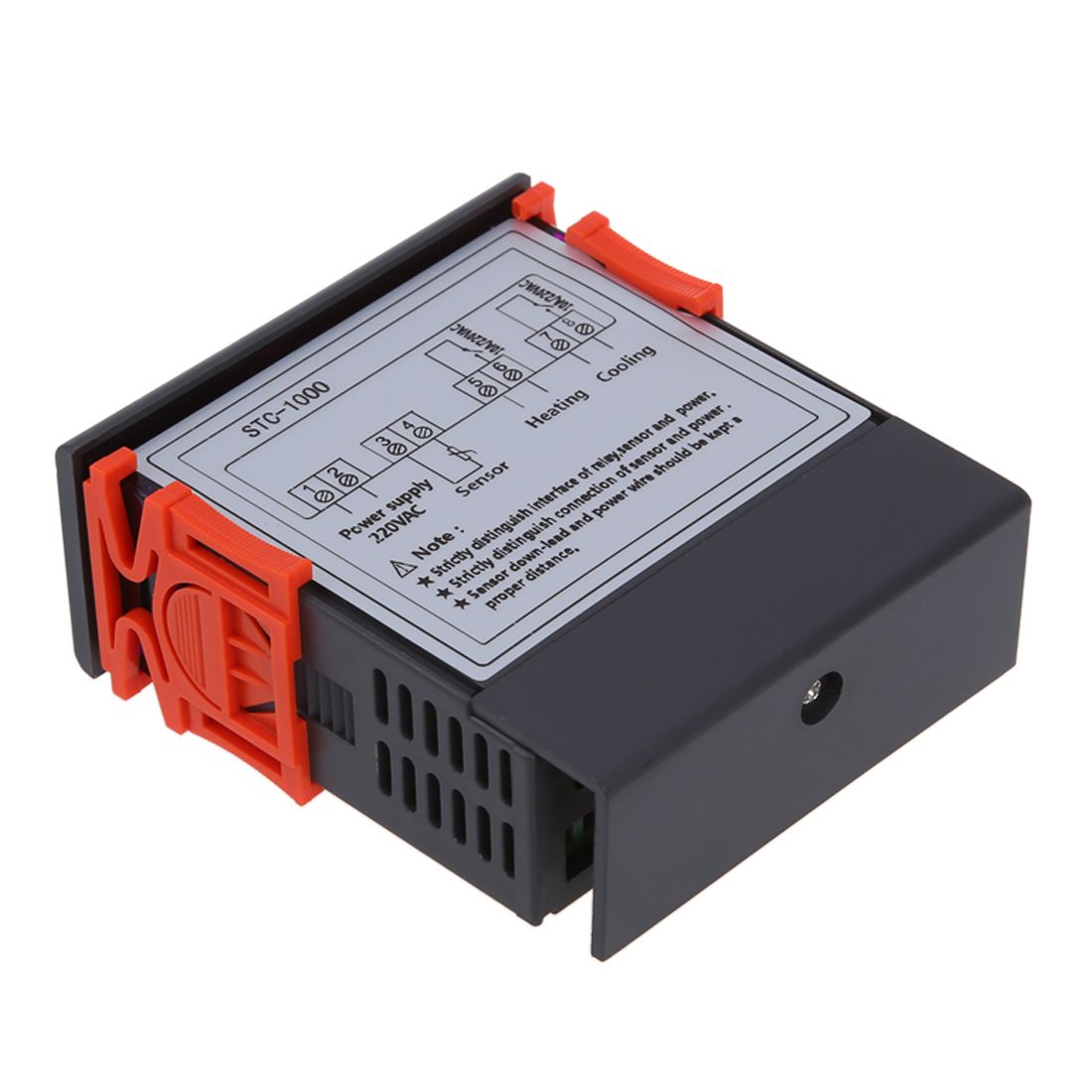

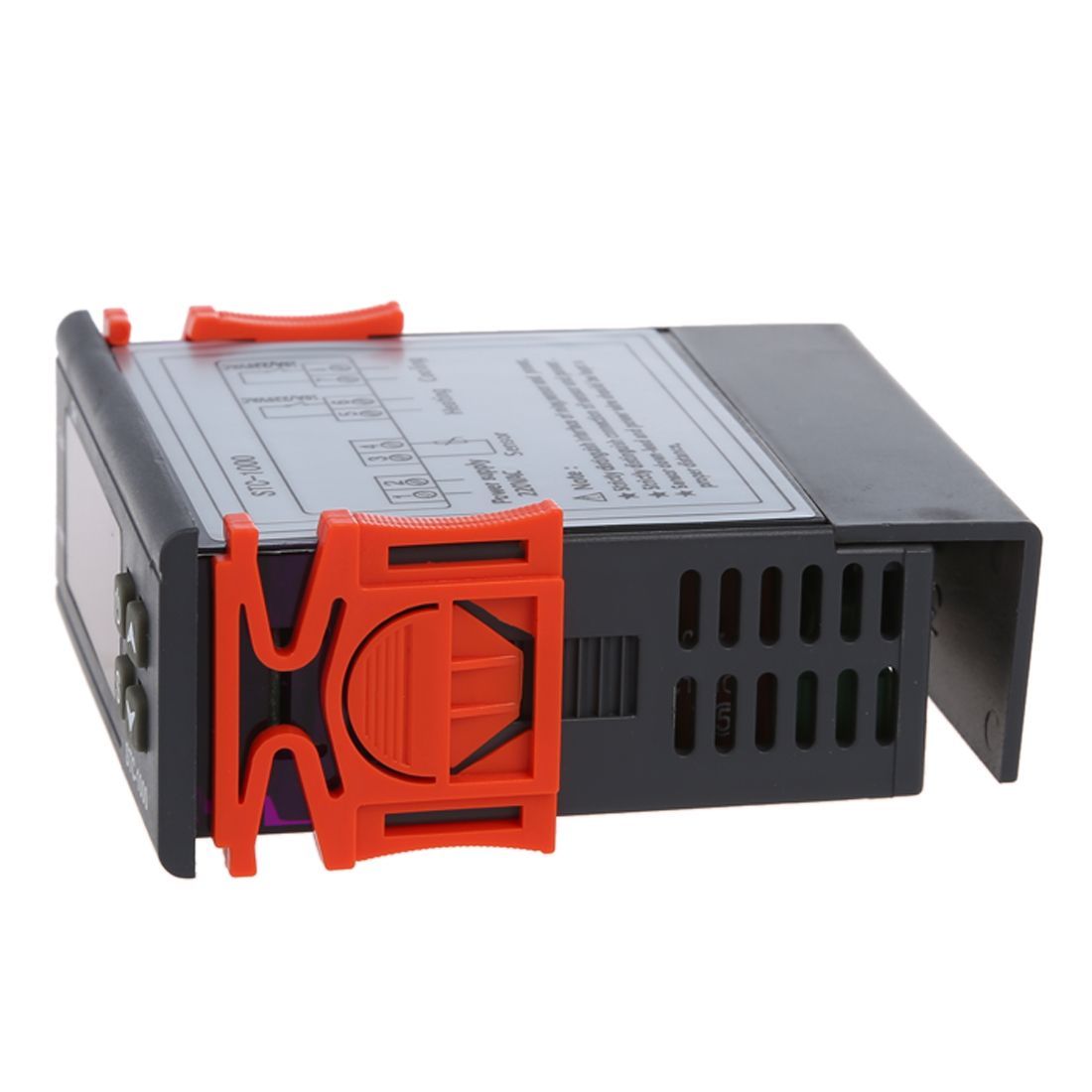

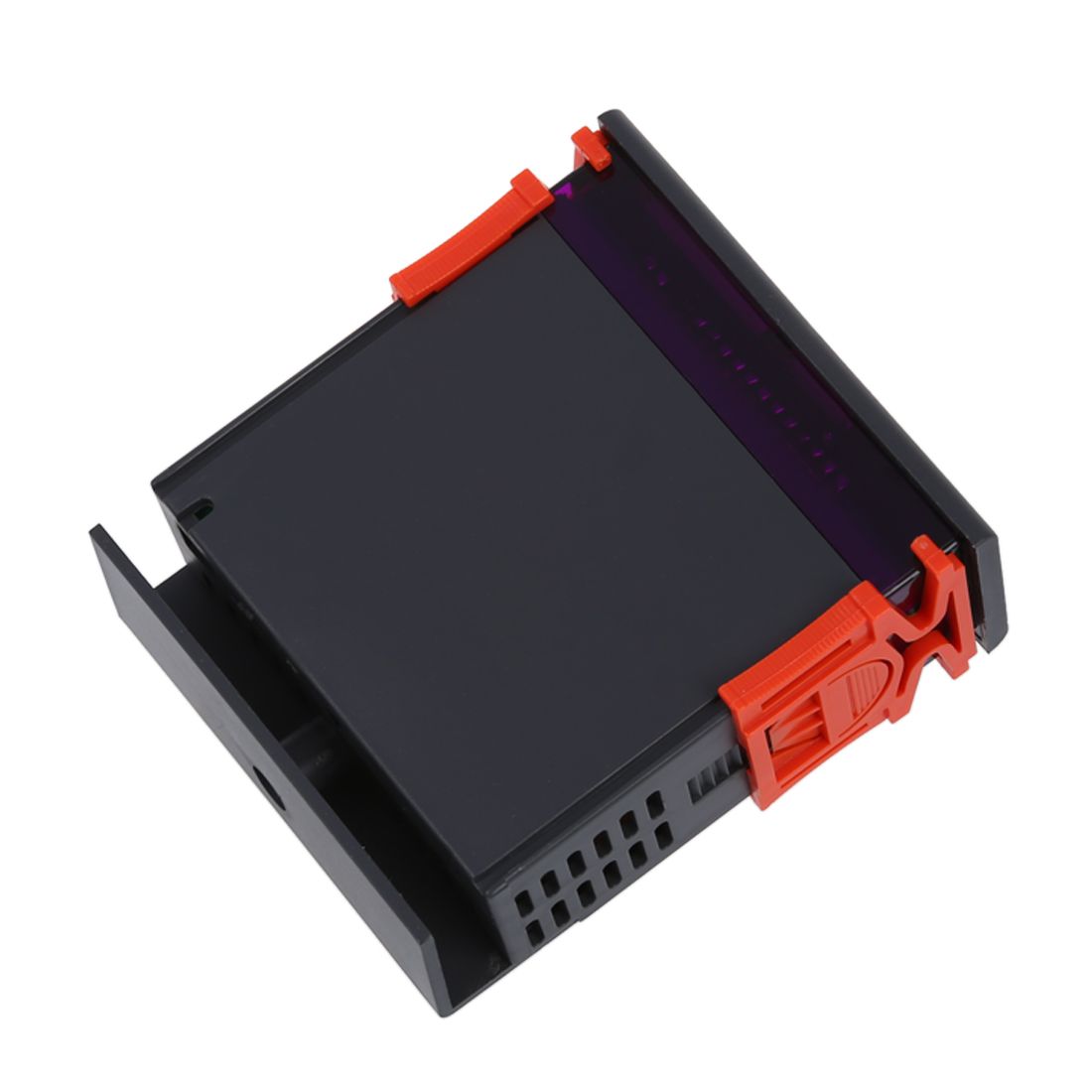

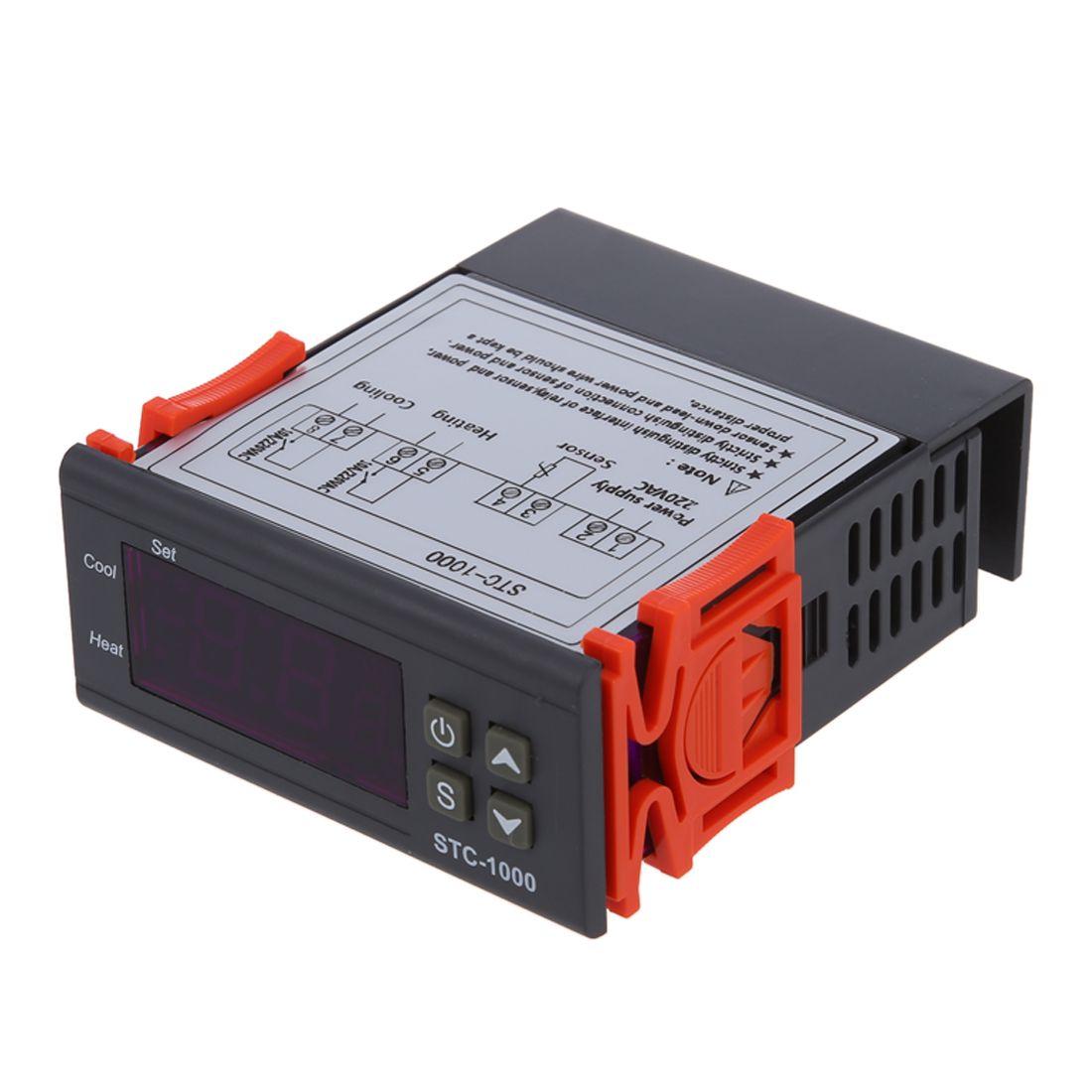

220V Stc-1000 Digital Temperature Controller Thermostat Regulator+Sensor Probe Switch The Modes Between Cool and Heat

220V Stc-1000 Digital Temperature Controller Thermostat Regulator+Sensor Probe Switch The Modes Between Cool and Heat
Price: US $ 9.55-14.3/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: STC-1000
Product Name: 220V Stc-1000 Temperature Controller Thermostat
Front Panel Size: 75(L)*34.5(W)(mm)
Mounting Size: 71(L)*29(W)mm
Sensor Length: 2m (Include The Probe)
Product Size: 75(L)*34.5(W)*85(D)mm
Range: -50~99°c
Resolution: 0.1°c
Sensor Error Delay: 1 Minute
Power Supply: 220VAC+/- 10%,50/60Hz
Power Consumption: Less Than Equal 3W

Product Description

220V STC-1000 Temperature Controller Thermostat Regulator+Sensor Probe Switch the modes between cool and heat
220V STC-1000 Temperature Controller Thermostat Regulator+Sensor Probe Switch the modes between cool and heat; Control temperature by setting the temperature setting value and the difference value; Temperature calibration; Refrigerating control output delay protection; Alarm when temperature exceeds temperature limit or when sensor error. Switch the modes between cool and heat; Control temperature by setting the temperature setting value and the difference value;
Temperature calibration; Refrigerating control output delay protection;
Alarm when temperature exceeds temperature limit or when sensor error.
Specification and size
Front panel size:75(L)*34.5(W)(mm)
Mounting size:71(L)×29(W)mm;
sensor length:2m (include the probe)
Product size75(L)×34.5(W)×85(D)mm;
Technical Parameters
Temperature measuring range:-50~99°C;
Resolution:0.1°C;
Accuracy:+/- 1°C (-50~70°C);
Sensor error delay:1 minute
Power supply:220VAC+/- 10%,50/60Hz;
Power consumption:less than equal 3W;
Sensor:NTC sensor (1PC);
Relay contact capacity:Cool 10A/250VAC;Heat 10A/250VAC;
mbient temperature:0~60°C;
Storage temperature:-30~75°C;
Relative humidity:20%~85% (No condensate).

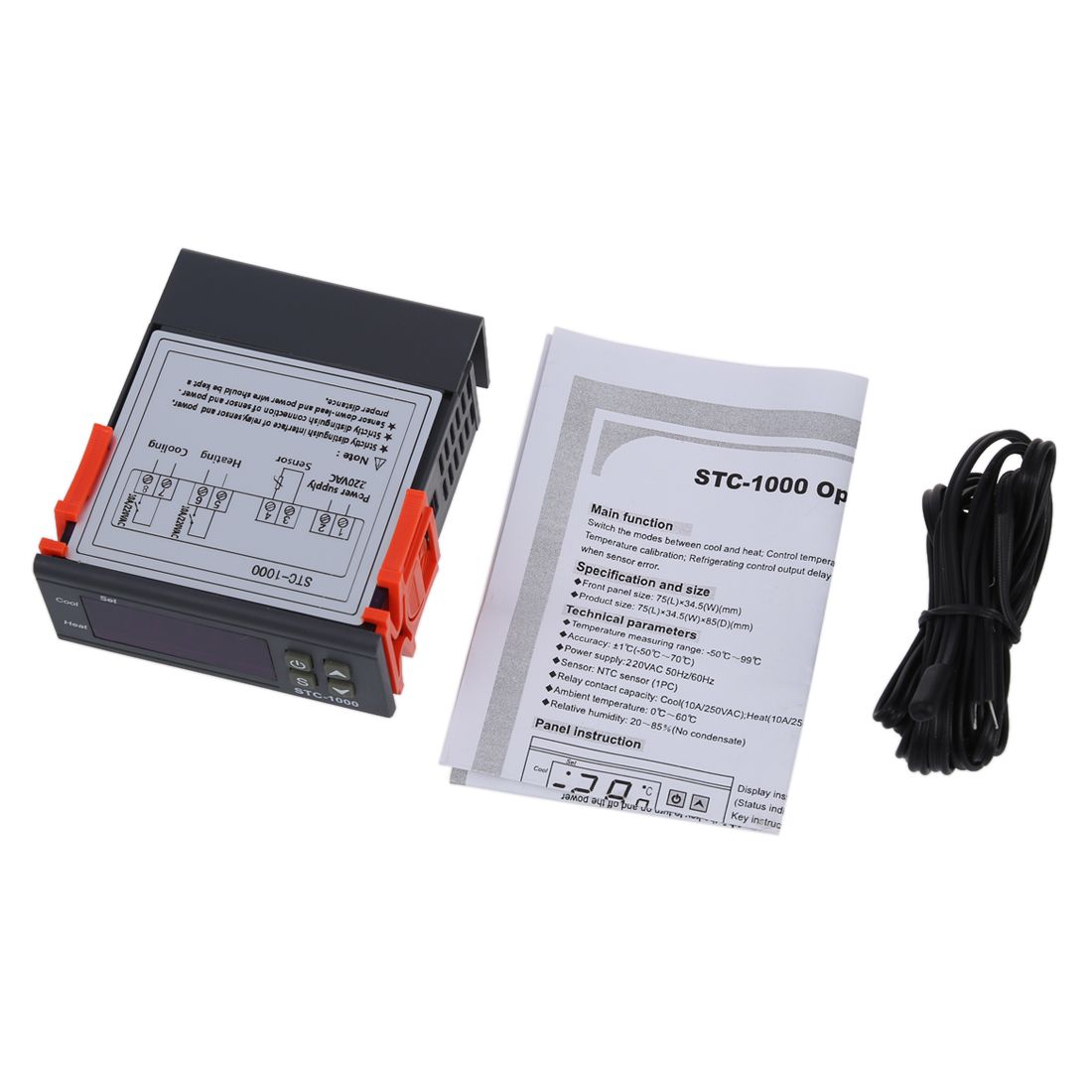

Package included:
1 x Mini Digital Temperature Controller Thermostat
1 x Temperature sensor probe with 2M cable
1 x Instruction Manual
