Henan Dirk Electronic Co., Ltd. >> 220V Wireless Remote Control for Crane F23-a++

220V Wireless Remote Control for Crane F23-a++

220V Wireless Remote Control for Crane F23-a++
Price: US $ 260/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Prod Model: F23-A++
Product Name: 220V Wireless Remote Control for Crane
Protection Level: IP65220V Wireless Remote Control for Crane
Application: Industrial Machinery
Signal Transmission: RF Remote Control
Type: Button
Certification: CE
Universal: Universal
Transmission Distance: 50-100m
Voltage: 3V
Battery Type: AA Battery
Material: Glass Fiber-Reinforced Nylon

Product Description

220V Wireless Remote Control for Crane F23-A++


8 single speed button,Emergency stop button  and Rotary switch.
Total control motions can reach9.
The max control distance can reach 100m.
Mainly used on overhead crane, bridge crane, tower crane etc.
 TransmitterReceiver
Dimension239*68*65mm331*160*140mm
Weight255g1200g
MaterialGlass-fiber
Protection levelIP65
Power supplyAC 3V (2 AA batteries)AC380V/36V/220V
/110V/48V/24V or
AC12V/DC12V

Product name220V wireless remote control for
crane F23-A++ with FCC ,CE ,ISO9001
Control distanceup to 100m
Control motions20
Frequency generationCrystal
StructureGlass-fiber
Operation Frequency310-330Mhz & 433Mhz
CertificatesCE, FCC, ISO9001:2008
Unique codeOver 4.3 billon unique ID codes
Working temperature-35°C___+80°C
Output capacityFull sealed relay output with 5 amperes

220V wireless remote control for crane F23-A++

1. The control distance can reach 100m.

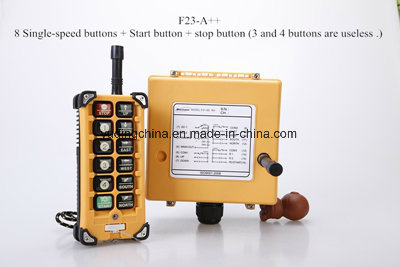

2. 10 push buttons, include ON/OFF, UP/DOWN, EAST/WEST, SOUNTH/NORTH, 1/2, 3/4(useless).
3.
Total control motions can reach 8.
4.
Earthquake-reduction design, to avoid damage from sudden shake and falling.
5.
For emergency circumstances, you can take out the magnet key to cut down the power on a moment.
6.
Water-proof, IP 65, can be used inner or outside.
7.
Free transmitter protecting cover available.


Standar Set:

1. One transmitter;
2. One receiver;
3. One 1m cable connect with receiver
4. One operation and maintain manual.

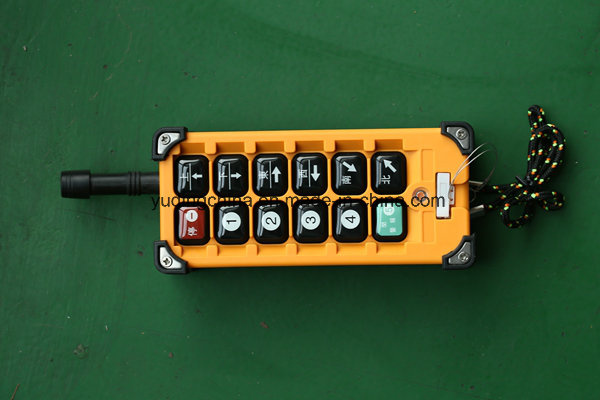

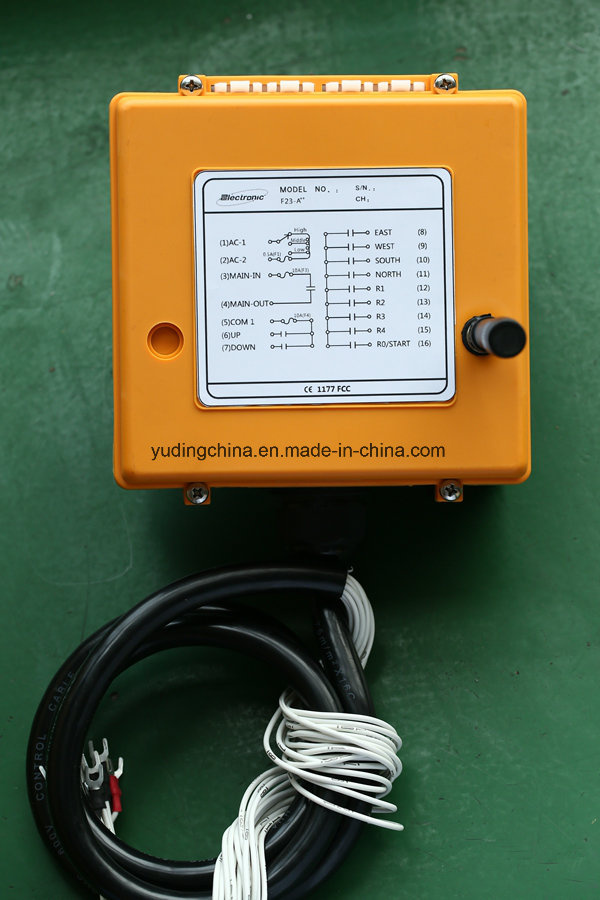

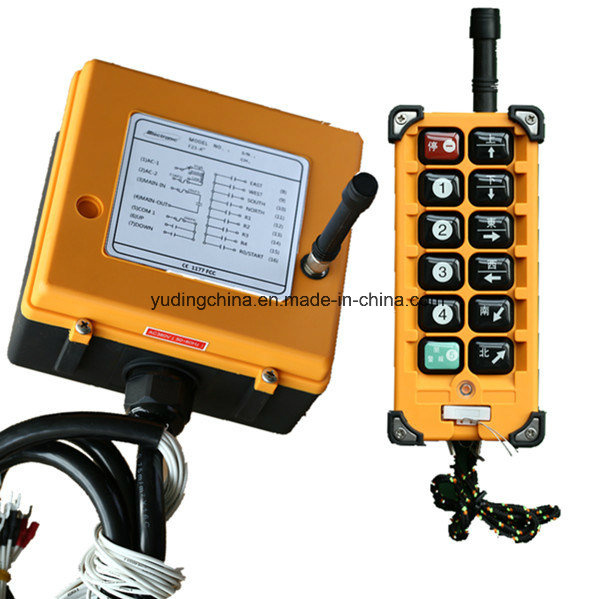

Product Picture:

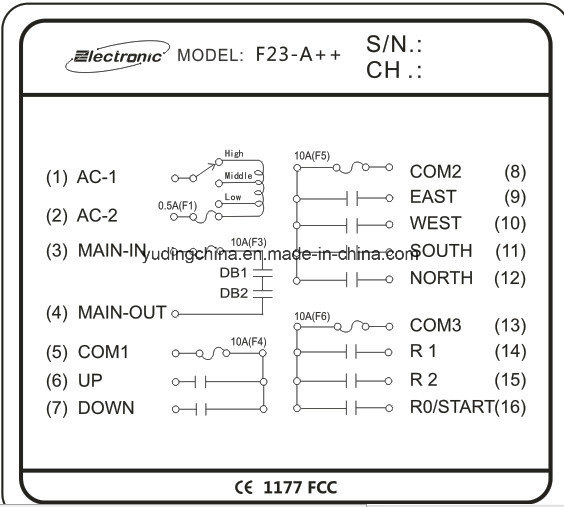

Connection Diagram:


More products for your reference


we have F21 series , F24 series , F21-E1B , E1Q , F23-A++,F24-60 joystick remote control , single speed and double speed industrial remote control

Application

Radio remote controls are becoming more common in many industrial applications. These applications include material handling, cranes and hoists, agriculture, grain elevators, aggregates, conveyors, automation, assembly lines, railroad, mining, ship loading, recycling, waste management, military, entertainment, and rides.


Certification:

We have obtained CE , FCC certificate for our industrial wireless radio remote control ,ISO-9001:2008

Information about our company

Henan Dirk electronic co.,ltd  was founded in 2010 years, mainly for industrial radio remote control system such as F21 serises , F24 serises ,C-E1Q, 60 etc ,production line is more than 5000sq.m ,more than 400 employee , we has build multiple internationally leading SMT production lines , BGA production lines and DIP production lines , we have obtainer ISO9001-2008 ,CE certificate and Anti-explosion certification in 2011 , on the other side ,our company accept OEM,ODM for different mainboard ,LED ,EPC,FPC etc .



More information about 220V wireless remote control for crane F23-A++ pls contact us directly



Henan Dirk Electronic Co. Ltd (former Henan Yuding Electronics Crop., Ltd) is an industrial radio remote controls manufacturer in China. Established in August, 2010, With more than 10 years experience on this industrial remote control system business area. Headquartered in Zhengzhou, Henan province. Dirk has so many experts in the industrial radio remote controller area to assure quality and productivity, Dirk are becoming one of the leading companies in this industry in China.

Our main products is: F21 Series radio remote controls, F23 series radio remote controls, F24-60 Dual Joystick radio remote control and explosion-proof remote controls. All these remote controls are easy to operate to keep workers safety and Efficient. All our products are CE & FCC & ISO Certificate.

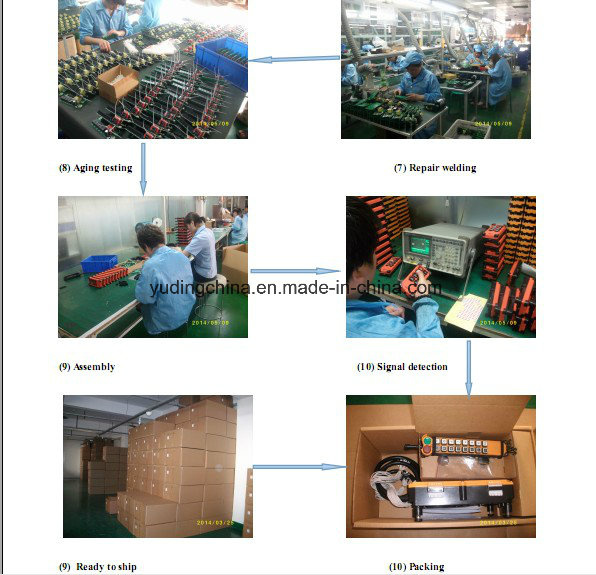

Quality is company's life. From the raw material testing, manufacturing, aging test and assembly, Each process are operate according to ISO9001: 2008 & international quality control system to guarantee the products quality. Competitive price with excellent quality and good after-sales service make our Internal customers are covered Over 400 cities of 33 countries. We also have built long-term business relationship with the foreign customers.

We here sincerely hope to establish partnership with you and your esteem company.
