220VAC 10A DC to AC Solid State Relay

Name: 220VAC 10A DC to AC Solid State Relay
Brand: all-electronics-online.com
SKU: 729274162
Availability: InStock
Rating: 4.6 (29 reviews)

Price:	Negotiable/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SSR-V220A10

Product Description

1. Single phase
2. Removable protection cover available
3. AC Control voltage
4. Full range load current from 10A to 100A
5. High reliability
Relay widely used in the fast switching of small AC areas, with a high dielectric strength of 2500V.

Technical Specification:
1. VR: 470Kohm/2W, output 380VAC 60A
2. Size: 58mm*45mm*28mm
3. High reliability

Product Description
LSSR Series is one phase industrial solid state relay widely used in many industrial areas, the input control voltage is 4-32VDC or 90VAC-280VAC, with full range rated load current from 10A to 100A and multiple load voltage 240VDC, 380VDC, 480VDC or 600VDC.
Model Ordering Information
Load Current	10A	15A	20A	25A	40A
DC:4-32V	LSSR-D380A10Z	LSSR-D380A15Z	LSSR-D380A20Z	LSSR-D380A25Z	LSSR-D380A40Z
AC:90-280V	LSSR-A380A10Z	LSSR-A380A15Z	LSSR-A380A20Z	LSSR-A380A25Z	LSSR-A380A40Z
Load Current	50A	60A	70A	80A	100A
DC:4-32V	LSSR-D380A50Z	LSSR-D380A60Z	LSSR-D380A70Z	LSSR-D380A80Z	LSSR-D380A100Z
AC:90-280V	LSSR-A380A50Z	LSSR-A380A60Z	LSSR-A380A70Z	LSSR-A380A80Z	LSSR-A380A100Z
Technical Specification
Input Data
Input Voltage Type		DC Input		AC Input
Control Voltage Range		4-32VDC		90-280VAC
Minimum Turn-On Voltage		4VDC		90VAC
Minimum Turn-Off Voltage		1VDC		10VAC
Maximum Control Current		25mA		10mA
Control Method			Zero cross trigger
Output Data
Input Voltage Type		DC Input		AC Input
Load Voltage Range			48-440VAC
Frequency Range			47Hz to 63Hz
Maximum Turn-On Time		1/2AC Cycle + 1mS		20mS

FAQ

: Are you manufacturer?
A: Yes, we are manufacturer and produce diode, thyristor, power modules, bridge rectifier and heatsink with best quality and competitive price.

Q: Can I customize products as our requirement from your company?
A: Certainly, we have our own design team, they are willing to do it for you

Q: Could I put my own logo on it?
A: Sure, as long as you are willing to offer it.

Q: Could I buy 1 pc or small quantities order?
A: Of course. We support 1 pc or small quantities order, especially for new customers.

Q: How much for the sample?
A: Some samples can be for free, but shipping cost should discuss with each other.

Q: What's the payment terms?
A: We can accept T/T, Western Union and Paypal.

Q: How long is your delivery time?
A: In general, about 6-8 working days after received your payment.

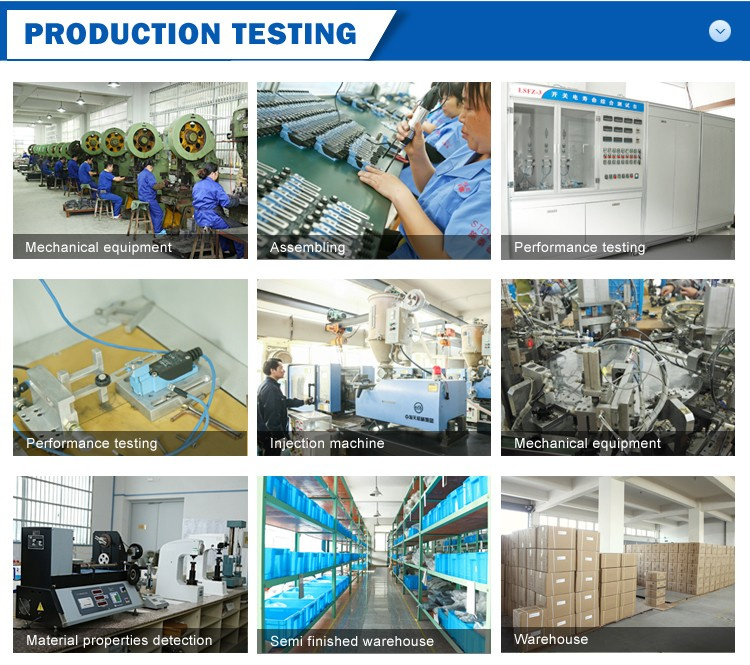

Yueqing Nanma Electrical Co., Ltd.and Jiangxi Nanma Electrical Co, Ltd Which a professional R&D and manufacture Micro switch, limit switch, travel swith, sealed switch, waterproof switch, toggle switches and so on Our company was established in 2004. Our ISO 9001-certified factory occupy a total land area of 1000 square meters and house more than 200 employees and two production lines outfitted with advanced production equipment. We have a monthly outup of 10 thousand sets of switch, which are exported to the Southeast Asia, Middle East, European. The market feedback shows that the products may completely substitude for the similar, work force: Our 2 QC auditors ensure all our products passed CE and CCC certifications. Implementing strict quality control in the whole production process, We have 2 R&D personnel with more than five years of experience who can design as customer offered sample to open model. We have 4 trade representatives with more than three years of experoence who are proficient in English. We are sincerely invite you to witness our development and resplendence together! Contact us today.
