Honle Electric Co., Ltd. >> 22kv Dry Type Power Transformer (SCB)

22kv Dry Type Power Transformer (SCB)

22kv Dry Type Power Transformer (SCB)
Price: US $ 1000/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: SCB
Application: Electronic
Phase: Three
Coil: Core-type Transformer
Cooling Method: Dry-type Transformer
Winding Type: Multi-winding Transformer
Certification: Ce
Brand: Honle

Product Description

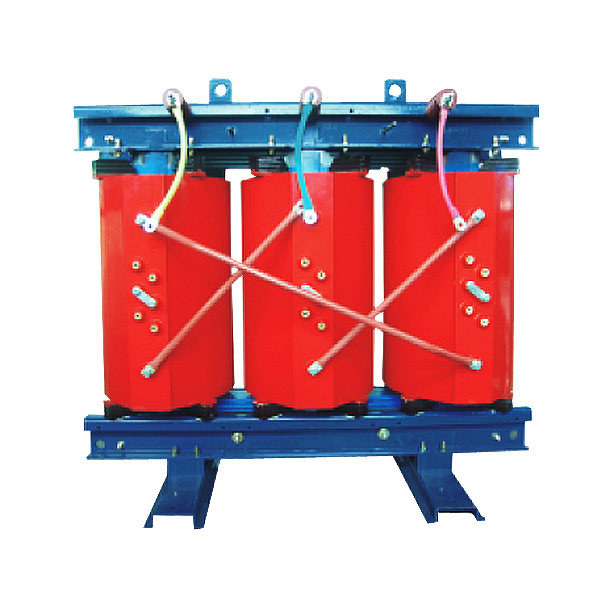

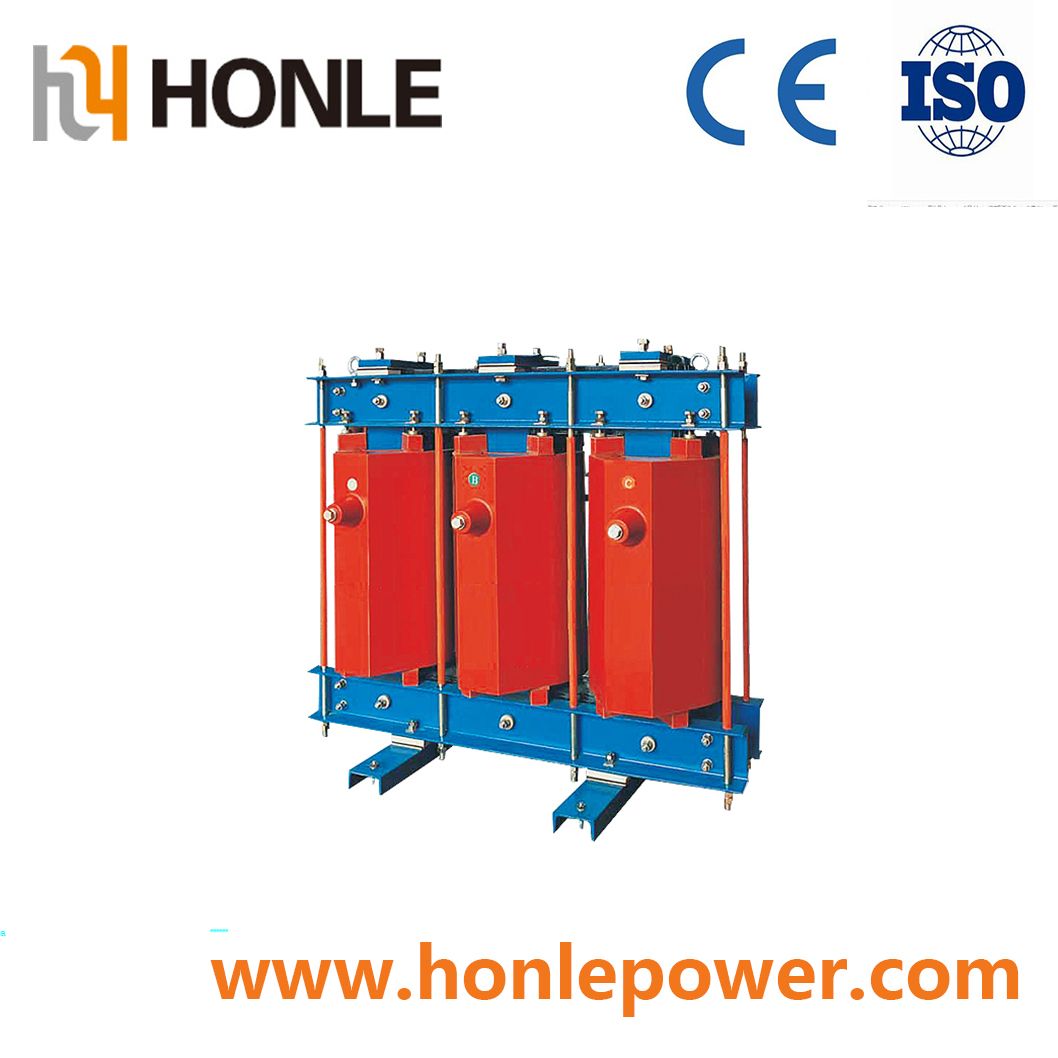

22kv Dry Type Power Transformer (SCB)


Power-Cast transformers are available with specification as follows :

Rated Voltage HV coil : Up to 24kV  LVcoil : 0.48-4.16 KV
*Power-Cast transformers with multiple high voltage connections can also be supplied.
Tap RangeStandard : ±2.5%, ±5%  Other ratings are available by arrangement.
Power Capacity Single phase : 20 - 2,000 KVA  Three phase : 50 - 10,000 KVA
Frequency : 50Hz, 60Hz   Typical % impedance voltage : 4-8%.
Connections HV coil : Delta  LVcoil : Wye with neutral point
* Other connections are available to meet requirements.
Temperature Ratings HV coil : Class F LVcoil : Class F
Max. ambient temperature : 450 C   Temperature rise limitation : 1800 C





Honle Electric Co., Ltd is the manufacturer specialized in producing industrial electrical products. It has three factories, the first one produces power supply, the second one produce power transformer, the third one produces complete plants and equipment. As a member of China Power Supply Society, since its foundation, the company has been insisting on the theoretic guideline of "science &technology is the first productive force" and holding up brand strategy as the guide, relying on forward understanding about power supply technology, perfect craft and unwearied pursuing to quality, we can show top quality power supply products, and set up fine image in Chinese market and overseas market.

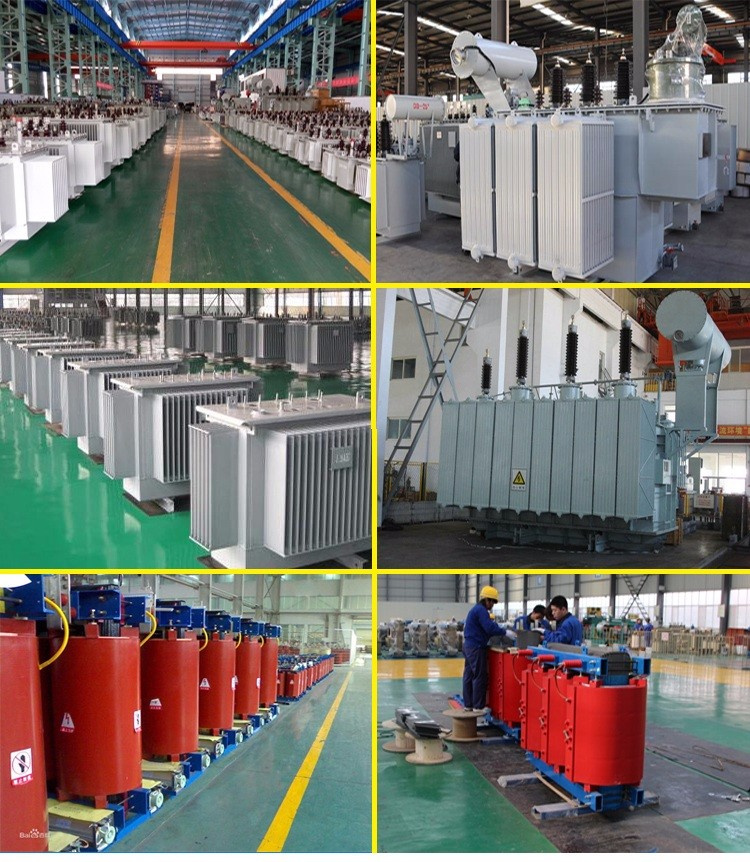

Up to now, Honle has the modern workshops and advanced production devices. Besides, the company always introduces technology positively, reforms craft continuously, devotes to researching and developing the voltage stabilizer, regulator and power supply, precise pureness power supply, providing, marketing for products. The company always do researching and developing the stabilized voltage power supply, precise pureness power supply, providing marketing for products. In addition, the company tries to find excellent administrators and technical talents. After just a few years of continuous efforts, Honle has been improved on the aspect of varieties, production scale, management mode. So products manufactured by Honle have reached advanced technical level, they are not only popular with a great many customers in China, but also in foreign countries.

The products of our company have been approved by Shanghai Quality Supervision & Inspection Institute, and insured by PICC company. Honle insists on the quality of survival, innovation and development all the time, and it has passed ISO9001 quality management system certification. Relying on rich economic strength, fine production engineering, innovating management mode, we can dare to meet kinds of challenges from China entering WTO. That is helpful for establishing reinforced foundation of international business.
