| Prod Model: |
ZWMD022022-23 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Voltage: |
24V DC |
| Diamater: |
22mm |
| Rated Speed: |
291 Rpm |
| Rated Current: |
295 Ma |
| No Load Speed: |
328 Rpm |
| No Load Current: |
110 Ma |
| Tated Torque: |
736 GF.Cm |
| Transmission Reduction Ratio: |
23:1 |
| Speed Stage: |
2 |
| Keywords: |
Electric Curtain Gear Motor |
| Application: |
Automatic Curtain |
| Operating Speed: |
Low Speed |
| Excitation Mode: |
Permanent Magnet |
| Casing Protection: |
Drip-Proof |
| Structure And Working Principle: |
Customize |
| Type: |
Gear Motor |
| Certification: |
RoHS |
| Brand: |
Zhaowei |

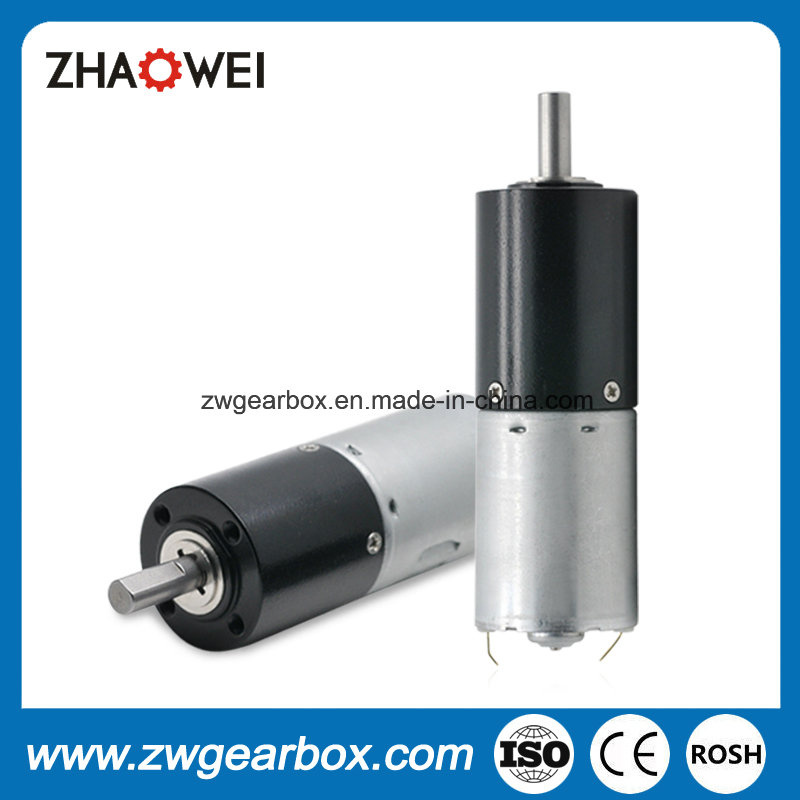

Product Description
22mm 24V Low Noise Automatic Curtain Gear MotorSpecifications:Rated voltage: 24.0V DC
Rotation direction: CW/CCW
Reduction ratio: 23/1
Operating temperature range: -10-50°C
Storage temperature range: -20-60°C
Overall length: 61.5mm
Gearbox length: 23.2mm
Max rated torque of gearbox: 2000gf.cm
Max instant torque of gearbox: 6000gf.cm
Output power: 0.5-6W
Output shaft: Metal
No load:
Speed: 328rpm
Current: 110mA max
On load:
Rated speed: 291rpm
Rated current: 295mA max
Rated torque: 736 gf.cm
Model | Typical Application Parameters | Max Rated Torque of Gear Box | Max Instant Torque of Gear Box | Gear Ratio | Gear Box Length
L1 |
| Rated | At No Load | At Rated Load | Overall Length
L |
| Voltage | Speed | Current | Speed | Current | Torque |
| VDC | rpm | mA(MAX) | rpm | mA(MAX) | gf.cm | mN.m | mm | gf.cm | gf.cm | mm |
| ZWMD022022-4 | 24.0 | 1886 | 100 | 1675 | 295 | 160 | 15.7 | 56.4 | 800 | 2400 | 4 | 18.1 |
| ZWMD022022-5 | 24.0 | 1509 | 100 | 1340 | 295 | 200 | 19.6 | 800 | 2400 | 5 |
| ZWMD022022-16 | 24.0 | 472 | 110 | 419 | 295 | 512 | 50.2 | 61.5 | 2000 | 6000 | 16 | 23.2 |
| ZWMD022022-19 | 24.0 | 397 | 110 | 353 | 295 | 608 | 59.6 | 2000 | 6000 | 19 |
| ZWMD022022-23 | 24.0 | 328 | 110 | 291 | 295 | 736 | 72.2 | 2000 | 6000 | 23 |
| ZWMD022022-64 | 24.0 | 118 | 120 | 105 | 295 | 1350 | 132.4 | 66.6 | 3500 | 10000 | 64 | 28.3 |
| ZWMD022022-76 | 24.0 | 99 | 120 | 88 | 295 | 1603 | 157.2 | 3500 | 10000 | 76 |
| ZWMD022022-90 | 24.0 | 84 | 120 | 74 | 295 | 1898 | 186.2 | 3500 | 10000 | 90 |
| ZWMD022022-107 | 24.0 | 71 | 120 | 63 | 295 | 2257 | 221.3 | 3500 | 10000 | 107 |
above specifications just for reference and customizable according to requirements.

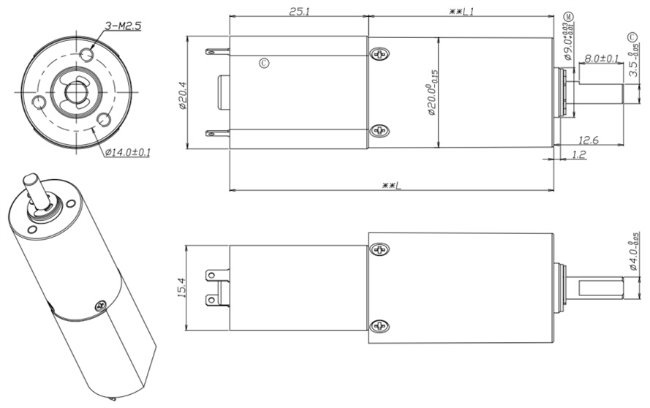

2D Drawing:

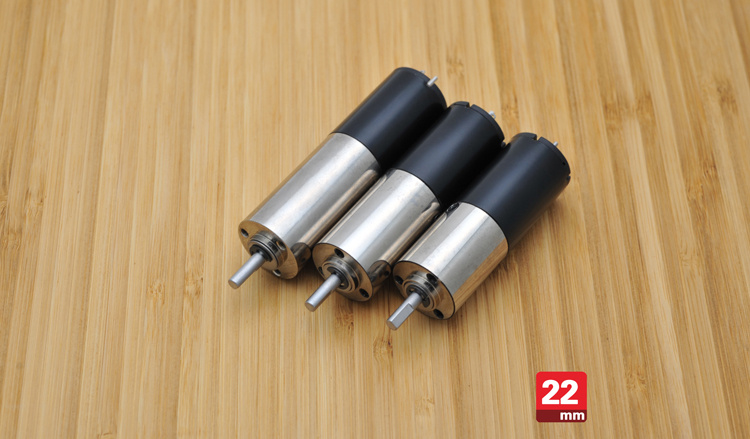

Product details show:
Application
Audio and visual equipments | notebook PC, camcorder, car DVD, kinescope DVD, car CD player, camera, digital camera, headphone stereo, cassette tape recorder |
| Household application | electric shaver, tooth brush, kitchen appliances, hair clipper, sewing machines, massager, vibrator, hair dryer, rubdown machine, corn popper, scissor hair machine, vacuum cleaner, garden tool, sanitary ware, window curtain, coffee machine, whisk, intelligent closestool, Sweeping robot |
| Office automation equipments | OA equipments, scanners, printers, multifunction machines copy machines, fax, FAX paper cutter, computer peripheral, bank machine, Video conference |
| Automotive products | conditioning damper actuator, door lock actuator, retractable rearview mirror, meters, optic axis control device, head light beam level adjuster, car water pump, car antenna, lumbar support, EPB,Car tail gate electric putter |
| Toys and models | radio control model, automatic cruise control, ride-on toy |
| Medical equipments | blood pressure meter, breath machine, Medical cleaning pump, Medical bed |
| Industrials | display, flow control valves |
| Electric power tools | electric drill, screwdriver |
| Precision instruments | monitor, optics instruments,automatic vending machine |
| cosmetic tool | eyebrow pencil, Electric threading knife,POWER PERFECT PORE, Puff machine,eyebrow tweezers |
