22mm 4p Illuminated in Stainless Steel LED Push Button Switch with IP65 Waterproof
| Price: |
US $ 1.2-1.85/Piece |
| Min Order: |
500/Piece |
| Pay Type: |
L/C,T/T,Paypal |
| Prod Model: |
HY-12AGT |
| Type: |
Normal Open |
| Usage: |
Control Button |
| Kind: |
Single-pole on-off Switch |
| Brand: |
HOY |
| Certification: |
RoHS |
Product Description
Illuminated in Stainless Steel LED Push Button Switch with IP65 waterproof -----High quality IP65 waterproof , IK08 explosion-proof , LED Illuminated switchSpecification: Customized LED and switch colors: red, green, blue, yellow, white, orange, purple| Rated Voltage | AC250V/2A |
| LED Rated Load | DC5V,6V,12V,24V,36V,48V.AC110V,AC220V |
| Working Environment Temperature | -20ºC~+55ºC |
| Action Form | self-resettable |
| Action Travel | 1.8mm |
| Action Force | 2N |
| Connection Form | Inserting matching connector; Welding wire and pay attention to welding temperature and time |
| Tightening Torque | 5-14N.m |
| Switch Combination | 1NO |
| LED lamp life | 40000h |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥1000mΩ |
| Operating Life | Electrical part: 50,000cycles
Mechanical part: 500,000cycles |
Material:1, Button: PC/Stainless Steel
2, Shell: 304/Brass with Nickel-plating/Aluminum Alloy Oxidation
3, Base: PC
4, Contact: Silver Alloy

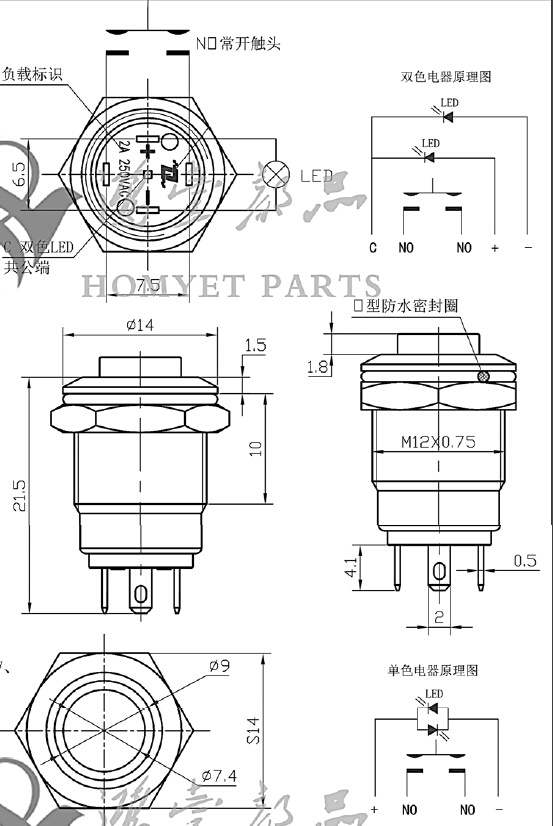

5, Pin: H62 Silver-platingProduct Drawing&Datasheet:
Packaging & Shipping1) Packaging: Carton
2) Shipping:
Fedex, DHL, UPS, TNT for samples, 3-7 days.
By Air or by Sea for batch goods, 10-30 days.
3) Payment Terms: T/T, L/C, PayPal; 20% deposits; 80% balance before delivery
Why Choose Us?1) We can provide you with different types of micro switches for your selection.
2) MOQ: 1000pcs,mixed order acceptable, welcome trial order.
3) We can provide free samples for your test.
4) Various operating force, height and colour for one item for your choice.
5) Safety, on-time delivery, excellent quality with competitive price.
6) OEM and ODM professional design. Company Profile:Shenzhen Homyet Parts Electronics Co., Ltd is committed to electronic components parts & Cables development, which we do design & production and sales by ourselves . Our company keep with " Faithfulness & Mutual Benefit " as our Philosophy, and "Quality Is The Life, And Integrity Is The Development" as our Mission Statement! Our target is "Create A Word-Class Brand " ,so we stick to innovation and strict quality control. In order to adaptation the requirements of market, we develop a series of new product successful and push in market.
Our main products include all type of switch/Phone jack/power jack/Cable & connector etc. Our products are widely used in Computer products, Consumer products, Communication equipments, Instrumentation and other related fields. The rapid development of the company, our term be coming bigger with professional manager and technical personnel. All of our products are compliance with RoHS, and our company got the certification of RoHS and CE! We are looking forwarder all of respective customer visit our company and welcome your trial order to start our cooperation in any time. Homyet Parts will act locally, think globally, and create a brilliant tomorrow for Global electronic consumer industry, return better products and services to faithful users with more perfect high-tech products.
You are always welcome to visit us, and we will do our best to work with you.
Don't be hesitate, send inquiry in below now. We'll reply you within 24Hours in working time !
