22mm Long Lever Knob Type Push Button Switch (LAN38-22D-11CX; LAN38-22D-20CXS)

Name: 22mm Long Lever Knob Type Push Button Switch (LAN38-22D-11CX; LAN38-22D-20CXS)
Brand: all-electronics-online.com
SKU: 695581205
Availability: InStock
Rating: 4.7 (117 reviews)

Price:	US $ 0.92-1.83/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LAN38-22D-11CX; LAN38-22D-20CXS
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Capacity:	AC-15 220V/4.5A 380V/2.5A 660V/1A; DC13 24V/6A
Contact Material:	Silver Alloy
Max. Isolation Voltage:	AC2500V 50Hz 1min
Mechanical Life:	3*105
Electrical Life:	60*104
Conventional Thermal Current:	Lth 10A
Rated Isolation Voltage:	Ui AC660V
Protection Degree:	IP65
Ambient Temperature:	-25~+55centigrades
Type:	Composite
Usage:	Control Button

Product Description

LAN38 Series Pushbutton Switch

LAN38 Series Pushbutton Switches are used as the circuit switching and pushbuttons of the mechanical equipments in the control circuit with AC50 or 60Hz, voltage up to 660V and DC voltage up to 440V. They are widely used in the fields such as machinery, textile, light industry, electricity and so on.
Xinling Electrical Co., Ltd. China is a professional manufacture in producing pushbutton switches. We have won good reputation by good quality and service.

Features:
1. Superior performance, high reliability and long service life
2. Exquisite and elegant appearance
3. Wide ranges of pushbuttons: Flush buttons, mushroom head buttons, rotary buttons etc.
4. Multiple color choice: Red, green, yellow, blue, white, black
5. Ambient temperature: Minus 25 centigrade to 55 centigrade
6. Protection grade: IP65
7. Meet International IEC60947-5-1 standard

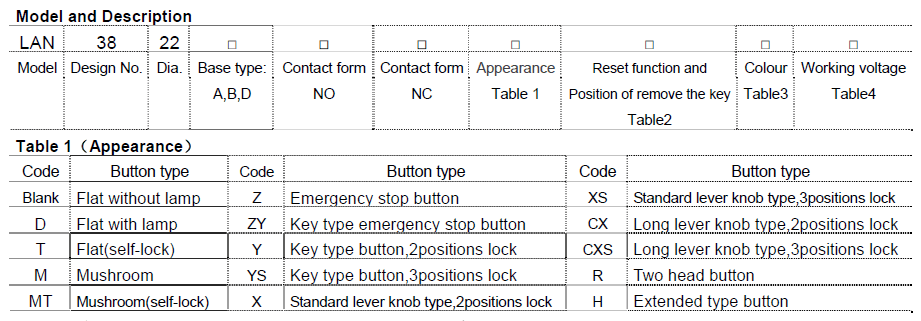

Specification

Model	LAN38-22D-11CX; LAN38-22D-20CXS
Description	LAN38-22D-11CX: Long handle 2 positions rotary pushbutton switch
Description	LAN38-22D-20CXS: Long handle 3 positions rotary pushbutton switch
Power frequency withstand voltage	2.5kV 1min
Mechanical life	equal to or greater than 3*104
Electrical life	equal to or greater than 60*104
Rated thermal current	lth 10A
Rated insulation voltage	Ui AC660V
Contact capacity	AC-15 220V/6A 380V/4A 660V/2A
Contact capacity	DC-13 24V/6A 48V/3A 110V/1A 220V/0.5A 440V/0.25A
Mounting dimension	22.3mm(diameter)
Ambient temperature	minus 25 centigrade to 55 centigrade
Protection grade	IP65
Contact resistance	Silver alloy contact: less than or equal to 50mΩ

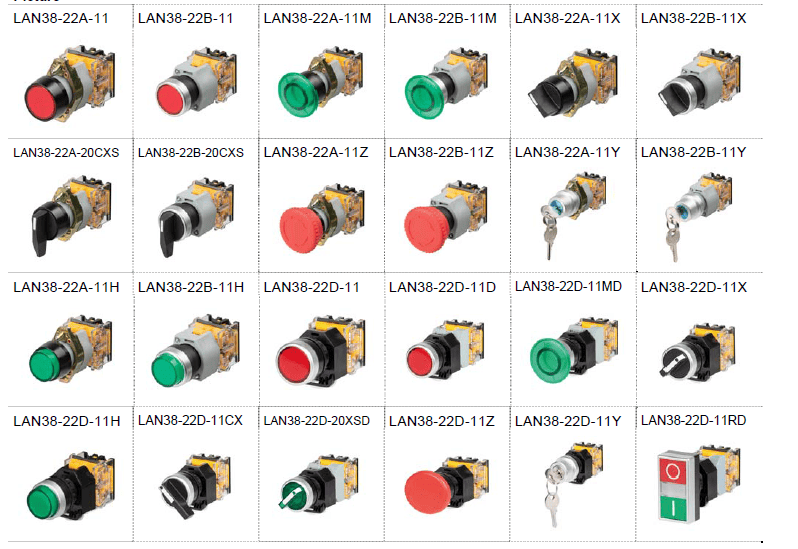

LAN38 Series Models

Xinling Electrical Co., Ltd. China was established in 1990. Now we have 10 sub-branch companies, each company is responsible for manufacturing different kinds of electrical products, We have more than 100 cooperation units, and 100 direct distributors, 1000, 000 square meter factory area and 1600 stuffs.

Our company mainly produces mini relay, time relay, solid state relay, electric power relay, temperature controller, kilowatt-hour meter, circuit breaker, AC contactor and some other electrical component which are the first choice of electric net reconstruction. With perfect management system and technical advancement, it strengthens the management of enterprise and promotes product quality. Our company takes prospering national industry as its own responsibilities, works hard developing economy of China to promote enterprise level.

The enterprise has gained ISO9001 and RVA Quality System Attestation(Netherlands), and its products have gained CE attestation (European Community), and UL Attestation and CCC Safety Attestation in China successively, and have been insured by PICC, besides, their quality has been ensured by quality "three guarantee". As a result, its products are sold well in more than 30 provinces and cities of China and are exported to Europe, America, Middle East, South-Eastern Asia, Africa and so on 20 countries and districts. Successively, the enterprise has been given the titles of Star Enterprise of China, Financial AAA Grade Enterprise, Gold Client of Agriculture Bank of China, and Credit Enterprise of Product Quality.

Xinling is ready for creating a magnificent tomorrow together with you!
