22mm Mini Brushless DC Motor

22mm Mini Brushless DC Motor
Price: US $ 5-30/Piece
Trade Terms: FOB,EXW
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Contact Supplier
Showroom Product Company Profile
Prod Model: JK22RBL45/JK22RBL68
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Body Color: Black & Silver
Rated Voltage: 24V
Rated Power: 3.8/8W
Rated Speed: 3500/4600rpm
Resistance: 11.8/23ohm
Inductance: 4.2/6.2mh
Body Length: 45/68mm
Stepper Motor Weight: 0.07/0.12kg
Application: Engraving Machine
Operating Speed: Constant Speed
Excitation Mode: Shunt
Structure And Working Principle: Brushless
Certification: CE and RoHS
Brand: Jk

Product Description

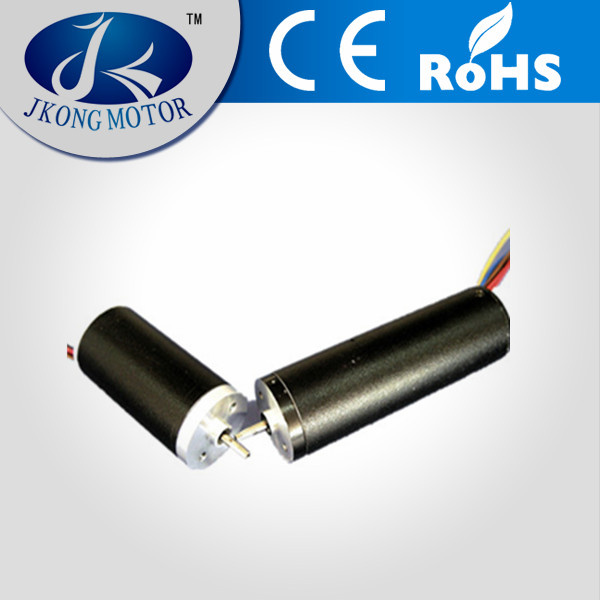

22mm Mini brushless Dc Motor

Description:

22mm brushless dc motor, BLDC MOTOR
24v dc brushless motor, 22mm dc brushless motor,

GENERAL  SPECIFICATIONS ELECTRIC CONNECTION
Winding typeStar
Hall effect angle120 degree electrical angle
Shaft run out0.025mm
Radial play0.02mm@450g
End play0.08mm@450g
Max. radial force10N @ 10mm from the flange
Max. axial force2N
Insulation classClass B
Dielectric strength500VDC for one minute
Insulation resistance100MΩMin., 500VDC


Electric Specifications:


Model                     JK22RBL45JK22RBL68
Number of poles8              8
Number of phase33
Rated voltage          VDC2424
Rated speed            RPM46003500
Continuous stall torque  mN.m9.626.4
Rated torque           mN.m822
Rated power            W3.88
Peak torque            mN.m2150
Peak current           A1.11.5
Line to line resistance    ohms2311.8
Line to line inductance   mH6.24.2
Torque constant         mNm/A30.235.5
Rotor inertia            g.cm20.661.32
Body length             mm4568
Mass                   Kg0.070.12


Applications:

Used for robots stepper motor,

Electronic automatic equipment stepping motor,

Medical instrument stepping motor,

Advertising instrument stepper motor,

Lighting& audio equipment stepper motor,

Printer stepper motor, textile machinery stepper motor.

Cnc router stepper motor.
