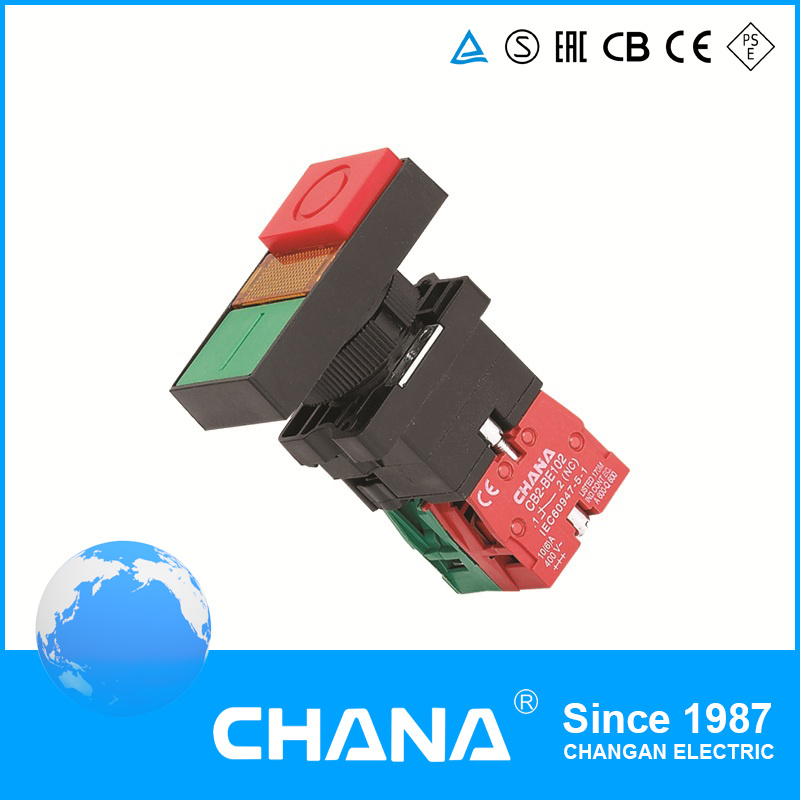

22mm Push Button Switch (CB2-EL11) for Electrical Controls CB2-EL11

Name: 22mm Push Button Switch (CB2-EL11) for Electrical Controls CB2-EL11
Brand: all-electronics-online.com
SKU: 743365415
Availability: InStock
Rating: 4.7 (61 reviews)

Price:	US $ 0.5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	CB2-EL11
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Black
Material:	Plastic
Style:	Flash
Function:	N.O
Protection Degree:	IP65
Type:	Normal Open
Usage:	Control Button
Structure:	N.O+N.C
Kind:	Push Button Switch
Detection Method:	Manual
Brand:	Chana

Product Description

Push Button Switch
1 Obtained CE, ROHS,
2 High qaulity
3 Extensive use
4 Timely delivery
This series of pushbutton switches are used for automation and signals in control
Circuits below AC 660V, DC 440V with frequencies of 50Hz or 60Hz
Features and specifications:
1) Basic spec code: 22mm
2) Protection grade: IP55, IP66
3) Meets international IEC947standards
4) The front color: Red (R), green (G), yellow (Y), white(W), Blue(BL)
5) It is the pushbutton switch with lamp
6) Package details:
200Pcs/Carton (Carton size: 59x38.5x20.5cm)

Control Signalling units 22mm
Description	Contact type	Scheme	Supply voltage	Colour	Reference
Flush	N/O			Black	CB2-EL21

				Green	CB2-EL31
				Yellow	CB2-EL51
				Blue	CB2-EL61
	N/C			Red	CB2-EL42
Direct	≤ 380V 50Hz			Black	CB2-EV63
Bulb
supplied*
				Green	CB2-EV64
				Yellow	CB2-EV65
				Blue	CB2-EV66
				Green	CB2-EV73
Direct thrigth resistor			220V-240V	Red	CB2-EV74
BA9S, CV Bulb supplied			50Hz
				Yellow	CB2-EV75
				Blue	CB2-EV76
Direct Direct BA			≤ 250V 50Hz	Green	CB2-EV163
Connection not9s(1)
supplited supplied				Red	CB2-EV164
				Blue	CB2-EV165
				Yellow	CB2-EV166
Direct Direct BA 9S(1)			130V 50Hz	Green	CB2-EV133
Connection supplited				Red	CB2-EV134
> 1000 hours				Blue	CB2-EV1135
supplied				Yellow	CB2-EV136
	N/C			Black	CB2-EA121
				Green	CB2-EA131
	N/C			Red	CB2-EA142
				Black	CB2-EA125
	NO/NC			Green	CB2-EA135
				Red	CB2-EA145
				Black	CB2-EH121
Pusshbutton spring return	N/C			Green	CB2-EH131
				Black
					CB2-EH125
	NO/NC			Green	CB2-EH135
				Green	CB2-EW3361
Direct supplied(1)	N/C N/C N/C		≤ 400V	Red	CB2-EW3461
				Yellow	CB2-EW3561
				Green	CB2-EW3371
With resistor 130V 2.6W with supplied	N/C N/C N/C		≤ 230V	Red	CB2-EW3471
				Yellow	CB2-EW3571
				Green	CB2-EW3341
Viaintegal transformer bulb supplied	N/C N/C N/C		230V 50Hz	Red	CB2-EW3441
				Yellow	CB2-EW3541

Established in 1987, CHANGAN GROUP Co., Ltd. Has been acknowledged as one of the most respected nation-wide manufacturers and exporters of low-voltage electrical apparatus in P. R. China.

Comprising more than 62 factories with over 2500 employees and the whole corporation occupies 82000m2 ground during past 27 years.

We manufacture and export varieties of low voltage electrical appliance including all kinds of CIRCUIT BREAKER, CONTACTOR, RELAY, SWITCH, SOLAR INVERTER etc.

All of our production procedures strictly follow ISO9001, ISO14001 and OHSAS18001, most of our products are certified such as SEMKO, TUV, CB and CE which can prove our guarantee quality and our products also have been chosen as "Chinese FAMOUS BRAND PRODUCT".

We not only make efforts in developing our own products with "CHANA"brand but also provide OEM services. Hope to establish good business relationships with your esteemed company in near future.
