| Prod Model: |
HBGQ22F-10/L/S |
| Mounting Hole Size: |
19mm |
| Switch Rating: |
2A/36VDC |
| Contact Configuration: |
1no |
| Operation Type: |
Momentary |
| Terminal Type: |
Pin Terminal |
| The Front Shape: |
Flat Round Dome Round and High Round |
| Crust Material: |
Nickel-Plated Brass and Stainless Steel |
| Protection Degree: |
IP65 Ik09 |
| Mechanical Life: |
1000000 |
| Electrical Life: |
200000 |
| Type: |
Normal Open |
| Usage: |
Start Button |
| Kind: |
Double Throw Switch |
| Contact Type: |
Type X Contact |
| Brand: |
Hban |
| Certification: |
RoHS |
Product Description

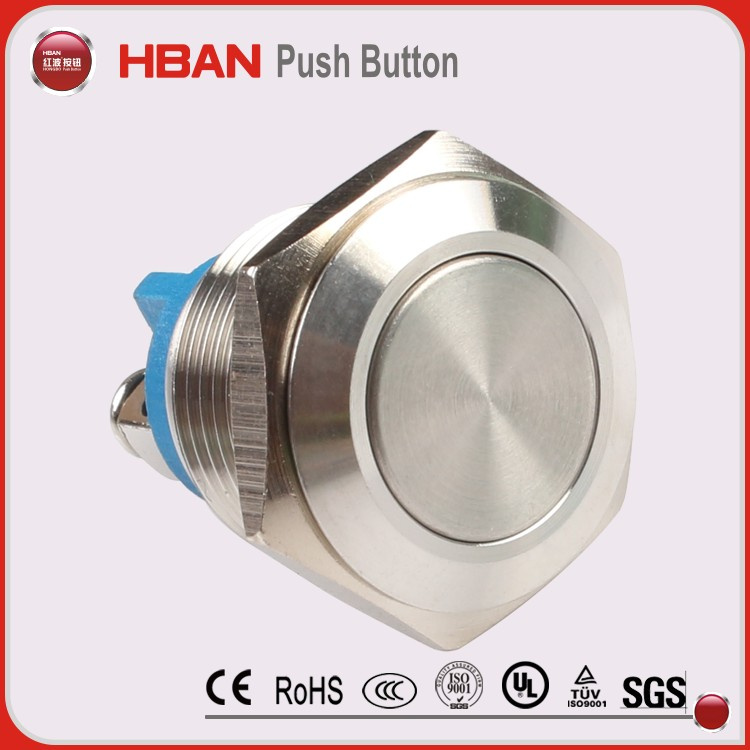

CE ISO9001 22mm ant vandal stainless steel screw terminal normal openmomentary push button switch
1.Specification
Mounting hole size:19mm
Switch Rating:2A/36VDC
Contact confirguration:1NO
Operation Type:Momentary
The front shape: Flat Round
The crust material:Stainless steel/Nickel-plated Brass
| Specification | HBGQ22H-10/J |
| The Front Shape | HIGH Round HEAD |
| Terminal Type | screw Terminal(2x0.5mm) |
| Switch Type | Two terminal breakpoints slow moving contact |
| Switch Specification | 2A/36VDC |
| Contact Resistance | <50mΩ |
| Insulation resistance | >1000mΩ |
| Dielectric Strength | 2000VAC |
| Operation Temperature | -20ºC~ 55ºC |
| Mechanical Life | >1,000,1000 times |
| Elecrical Life | >200,000 times |
| Panel Thickness | 1~6mm |
| Torque | 5-14Nm |
| Operation Pressure | <6N |
| Operation Stroke | about 1.5mm |
| Protection Degree | IP65 IK08 |
| Material |
| Contact | Silver Alloy |
| Button | Stainless steel Mirror Surfact CD Pattern |
| Case | Stainless steel or Nickel-plated Brass |
| Base | PBT |
2.Package:
| ITEM | PC/BOX | BOX/CTN | PCS/CTN | CBM |
| HBGQ19F-11 | 40 | 25 | 1000 | 435X380X335 |
