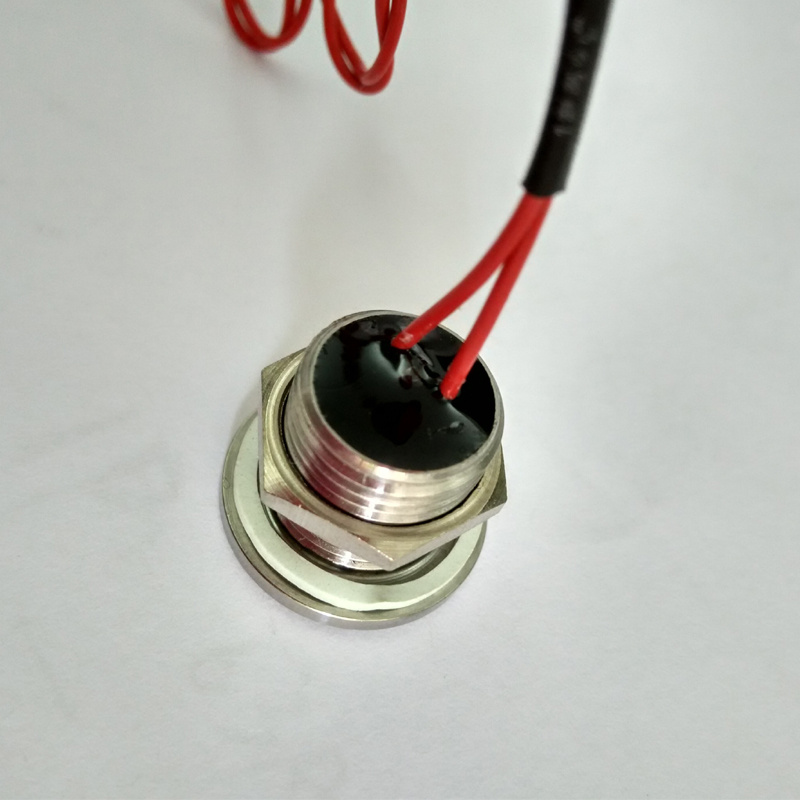

22mm Stainless Steel Mounting Dia. Piezo Switch (PZ-S22)
| Price: |
US $ 7.5/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
PZ-S22 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Is Customized: |
Yes |
| Max. Voltage: |
24VAC/DC |
| Max. Current: |
200mA |
| Protection Level: |
IP68 |
| Approval: |
Ce,RoHS |
| Material: |
Aluminium, Anodized |
| Shape: |
Concave Head |
| Life Expectancy: |
50 Million Cycles |
| Operation Temperature: |
-40 to +75 Degree |
| Usage: |
Start Button |
| Certification: |
RoHS |
Product Description
-Sealed to IP 68 and IP69K (switches mounted on panel)
-Easy to clean metal surface
-Very long life expectancy
-Ring or dot illumination| ENVIRONMENTAL SPECIFICATIONS |
-Sealing : IP68 per IEC 529, IP69K per DIN 40050-9 (switches mounted on panel or not) -Vibration resistance : 10-500 Hz / 10 g per IEC 60068-2-6 -Operating temperature : -40°C to +75°C -EMC compatibility according to EN 61058-1 for the whole range -EMC compatibility according to EN 61000-4 & EN61000-6-2 for model 1A (code 002) |
| MATERIALS |
-Case : aluminium, anodized or stainless steel 316L or brass, chrome plated -Multi-wire leads section AWG24 length 300 mm, twisted by pair -Cable, length 300 mm, section depending on switch model -PC terminals : Gold or Tin plated |
| ELECTRICALANDGENERALSPECIFICATIONS |
-Max. current/voltage rating : 200mA 5~24VAC/DC -Switch resistance ON : 10Ωmax. -Switch resistance OFF : 5MΩ min. -Operating force : 6 to 15N -Life expectancy : 50 million cycles -LED consumption : Illuminated dot : 10mA - Illuminated ring : 20mA |



Technical Data: Electrical Data |
| | |
| Contact Arrangement | SPST N.O. / N.C. |
| Pulse Duration | 125 - 300mS Momentary only |
| Prolonged | up to 6 sec |
| Voltage | 1 - 24V AC/DC |
| Switching Current | 0.2A /1A |
| Rated Breaking Capacity | 1W |
| Operating Cycles | >50,000,000 |
| Switch Resistance OFF | > 5 MΩ |
| Switch Resistance ON | < 20 Ω |
| Capacity | 30pF |
| Contact Configuration | Free polarity |
| Mechanical Data |
| Material | Aluminium 6061 T651/ Stainless Steel 316L |
| Actuating Force | 3 - 5N |
| Connection | Wires, Pins, Cables |
| Actuating Travel | 0.002mm |
| Shock Protection | IK 06 |
| Fastening Torque | 2.5Nm |
| Anodize Colors | Gold / Red / Blue / Black / Green / Natural |
| Environmental Data |
| Operating Temperature | -40°C to 75°C std. |
| IP Protection | IP69K (front and back) |
Profile
LANGIR A professional design, manufacture of Anti Vandal Switches, Piezo switches, Capacitive switches, Piezo Keypads and DC circuits - Miniature circuit-breakers for DC and solar generation; The switches offer attractive, robust and durable switches, available with different bushing diameters, actuator shapes, bushing and actuator materials.
Established in 2009, Langir Company has developed very quickly in this field. With the powerful technology support and advanced production and inspection devices, Langir products have exported to many regions and many countries.
We accept OEM and small trial orders, contact us now for more information. All inquiries will be replied within 24 hours. We also cordially welcome all clients to visit us and discuss business and place orders with us by any means of communication.
Assets
Technical and industrial excellence:
1. Strong technical expertise: R&D departments, large number of design tools, technological
Monitoring…
2. In-house design and fabrication of tooling
3. Control of numerous technologies and all the production processes
4. Large production capacity: Automated processes
Quality of products and services:
1. The widest product offering on the switch market
2. Numerous approvals and certifications (RoHS, REACH, CE, CCC, CB and TUV … )
3. Continuity in the supply of all product ranges
4. Industrial autonomy
Engineering & Production
LANGIR vertical integration for customer service from raw material transformation - plastic powders, metal bands - to finished products, through the design and production of tooling, LANGIR controls all the production stages. LANGIR has a strong reputation for quality, confirmed by the ISO9001: 2008 certification. Our products are designed and produced in accordance with quality standards and environmental requirements.
