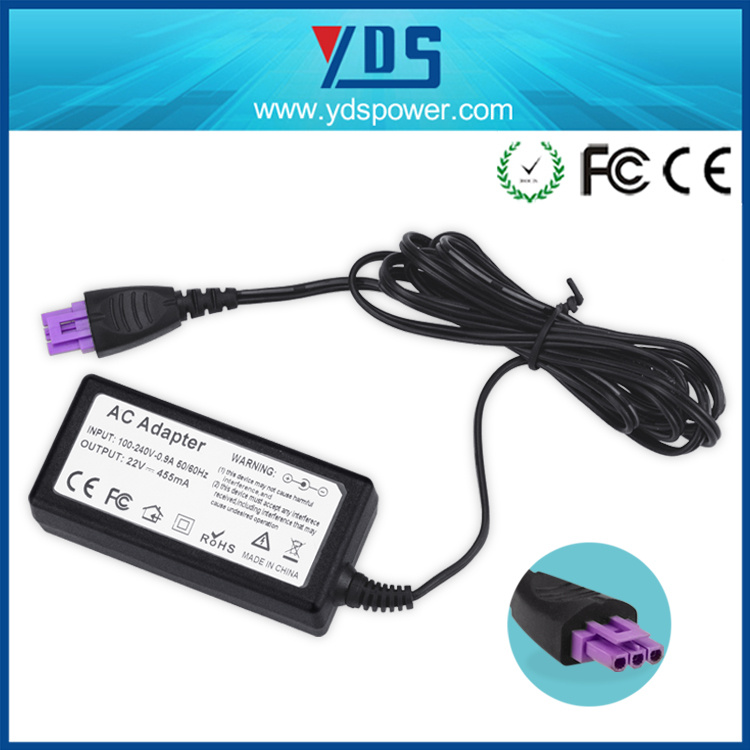

22V 455mA 3 Pin (Flat) Printer Scanner Adapter

Prod Model:	YPA-H03
Input:	AC 110-240V
Output Voltage:	22V 455mA
DC Size:	3 Pin(Flat)
Export Markets:	All Over The World
Usage:	Laptop
Output Type:	DC
Connection:	Plug In
Certification:	Ce,FCC
Brand:	OEM

Product Description

22V 455MA 3 pin(Flat) Printer Scanner Adapter


Description

22V 455MA  3pin PC prong printer adapter
DC Connector Size: 3pin flat pin
Condition: Brand New
Outlet :3 prong
Statues: In Stock


Feture

1.Brand new components
2.Housing is made by special fireproofing ABS+ PC plastic
3.Sufficient output power
4.Small output voltage ripple
5.High accuracy of output voltage
6.Smart device surge protection ,OVP ,OCP ,SCP
7.Strong built for heavy duty and long usage performance
8.Triple tests before packing ensure the reliable quality
9.More than 10 years experienced factory
10.100% full load burning test
11.Quality:High Efficiency.High Reliability.Low Ripple & Noise
12.Condition:100% Brand New (2 Years Warranty)
13.Pass CE ,FCC ,ROHS, ERP Certificates.ISO9001:2000 International Quality Management Systems.Reliable quality, Defect rate can be controlled within 0.3%.
14.Production ability :More than 300,000 pcs batteries one month

Data sheet


Specifications
Model No.	YPA-H03
AC Input
Nominal Input Voltage	AC 100V~240V~1A
Input Frequency	50/60Hz
DC Output
Output	22V
Output	455MA
DC Connector Size	3 pin(Flat)
Line Regulation	2%
Load Regulation	5%
Ripple Noise	180 Mvp-p
Efficiency	>85%
Output Cable Standard	0.3mm2 Pure Copper
Output Cable Length	1.8m normally or customized requirement
Environment
Operating Temperature	0°C ~40°C
Operating Humidity	5%~95%RH
Storage Temperature	-20°C ~85°C
Storage Humidity	5%~95%RH
Protection
Over Load Protection	Short Circuit Protection
Over Current Protection	Over Temperature Protection
Certificates
CE, ROHS, REACH, FCC, ERP, CB, GS, TUV, UL, CUL, CCC,PSE
Dimensions
Adapter Size	8.5*4.0*2.7CM
Adapter Weight	119G
Inner Box Size	19*13*4.7 CM
Inner Box Weight	40G
PCS/CTN	50PCS
Outer Carton Size	48.5*32*40 CM
Outer Carton Weight	860G
GW/CTN	8810G
Package
Inner Box	Normally neutral brown box or customized requirement
Outer Carton	Normally neutral standard carton or customized requirement
Warranty
Guarantee	30 days
Warranty	2 years
Terms and Conditions
MOQ	100PCS for mixed order
Payment Terms	T/T, L/C, PayPal, western union
Delivery Time	3-5 days
Manufacturing Process
1. Set-Up→2. Hand Insertion→3. Wave Soldering→4. Touch-Up→5. V/I→6. ICT→7. INT→8. Apply Glue→9. Q/A→10. Entering Stock→11. Assembly→12. Power On Test→13. Hi-Pot Test→14. Burn-In→15. Hi-Pot Test→16. All Fun Test→17. Packing→18. OQC→19. Shipping
Test Procedures
1.No-load output voltage test→2.input power load test→3.No-load output ripple test→4.Full load open test→5.Full load output voltage test→6.Full load output ripple test→7.Full load input power test→8.Half load output voltage test→9.Half load output ripple test→10.Over load test→11.Over current protection test →12.Short circuit protection test (above test is under both 110V and 230V.)→13.High voltage test→14. burn-in test→15.Turn on delay time test→16.Rise time test→17.Hold time test→18.Overshoot test




Packing:


Each laptop adapter put in a bubble bag ,then packed in the Brown Box,
and then 50pcs packed in one carton or customized according to customers' requirment.


shipping

1. By express ,FedEx/DHL/UPS/TNT for samples, Door-to-Door;
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods;
4. Delivery Time: 3-5 days for samples; 5-20 days for batch goods.

Our Service
Sample Service :
1.We can offer sample for testing before placing order
2.Sample fee can be Free ,but the freight should be paid by buyer
3.We can offer Free samples + free shipping fee for old key customers
4.Sample preparing time :1-5 days

OEM/ODM Service
1.Professional design team for your OEM /ODM service requirements
2.We can always design the products according to your requirements
3.We always send mails to our customer with the latest products introduction

After sales Service
1.All products and accessories will be tested more than 3 times before sending out.
2.All products have at least 1 year warranty.We will repair or replace for you freely if there is not made-made problem.
3.We have a thorough after-sale service team for answer your question
4.We can help to deal with the products problem beyond the warranty time

Why Choose Yidashun
1.Over 10 years of professional experience in designing and producing
2.High quality,defective rate can be within 0.3-0.8%
3.100% raw material testing  PCBA testing  Aging testing
4  Strong R&D capability, all kinds of latest products available
5.Broad product varieties and different models for customers' selection
6.Abundant inventory for fast delivery
7.Passed ISO9001-2008 certification;Reliable quality
8.Low MOQ, sample orders and small orders are welcome
