23 AWG FTP Cat. 6 Solid LAN Cable
| Price: |
Negotiable/Meter |
| Min Order: |
3000/Meter |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
SLF6CB231 |
| Copper Diameter: |
23AWG |
| Outer Diameter: |
6.8mm |
| Weight: |
13.9 Kg/Kft |
| Shielding Material: |
Al Foil |
| Minimum Bend Radius: |
60mm |
| Jacket Material: |
PVC/LSZH |
| Packing: |
Axles |
| Maximum Pulling Tension: |
10kg |
| Application: |
LAN Cable |
| Conductor Material: |
Copper |
| Cover Material: |
PVC |
| Type: |
Cat 6 |
| Certification: |
ETL,Fluke |
| Model: |
LAN Cable |
| Brand: |
Sur-Link |
Product Description
Product model:SLF6CB231

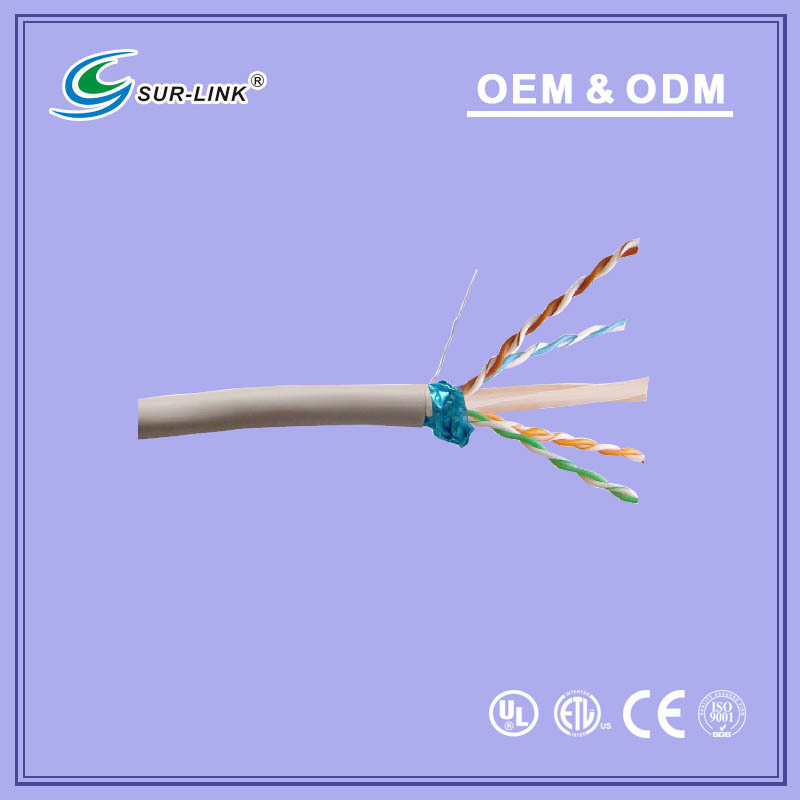

Description:LAN Cable FTP Cat.6 Solid Grey Color ,23 AWG
PRODUCT DESCRIPTION

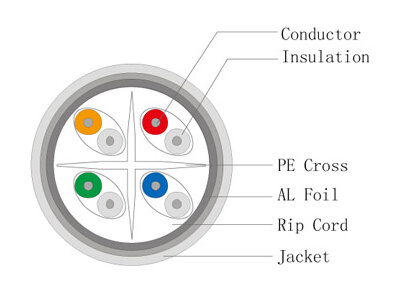

1. The center conduction of the 4 pairs FTP Cat.6 cable is made of 23AWG bare
copper. This kind of cable also adopts PE material to be the dielectric, AL foil
to be the shield and fireproof material to be the jacket. Besides , the "+"
typer inner frame setted in the center is good for keeping the balance and
quality, which are so important for the cat.6 communication.
2. This Cat.6 FTP cable is conform to the related standards like ISO/IEC, TIA/EIA
and EN.
3. All the electrical characteristics are exceed the lastest Cat.6 standards
of ISO/IEC.
4. LSZH: means "Low smoke zero halogen", which is the symbol of environmental
protection.
ELECTRICAL CHARACTERISTICS
1. Return resisitance: 14.9/100m
2. Impedance: 100±5
3. Static electric capacity: 46pF/m 1KHz
4. Unbalance capacity: 100pF/100m
5. Roted communicate rate: 65%
PHYSICAL CHARACTERISTICS
1. Copper diameter: 23AWG
2. Outer diameter: 6.8mm
3. Shielding material: AL foil
4. Weight: 13.9 kg/kft
5. Minimum bend radius: 60mm
6. Maximum pulling tension: 10kg
7. Jacket material: PVC/LSZH
8. Roted temperature: -20~60ºC
9. Packing: Axles
APPLICATION
1. 10/100/1000Mbps Ethernet;
2. 100VG-AnyLAN;
3. Token ring; ATM155/ATM622, etc.
STANDARD
1. ISO/IEC-11801 (2nd edition)
2. EN (2nd edition)
3. TIA/EIA-568B.2-1
ORDERING INFORMATION:
Product Code | Description | Packaging | Carton Size | GW |
SLF6CB231 | LAN Cable FTP Cat.6 Solid Grey Color ,23 AWG | 305 m/box | 40*40*22 cm | 16 kg |
