230V Joystick-Control for Crane/Industrial Electronic Joystick Control for Hydraulic Terrain Crane
| Price: |
US $ 500-1200/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
F24-60 |
| Application: |
Industrial Machinery |
| Signal Transmission: |
Radio Waves |
| Type: |
Joystick |
| Certification: |
CE |
| Universal: |
Universal |
| Transmission Distance: |
50-100m |
| Material: |
Plastic |
| Battery Type: |
AA Battery |
| Voltage: |
DC/AC12V,AC380V,AC110V,AC220V,DC/AC36V |
Product Description

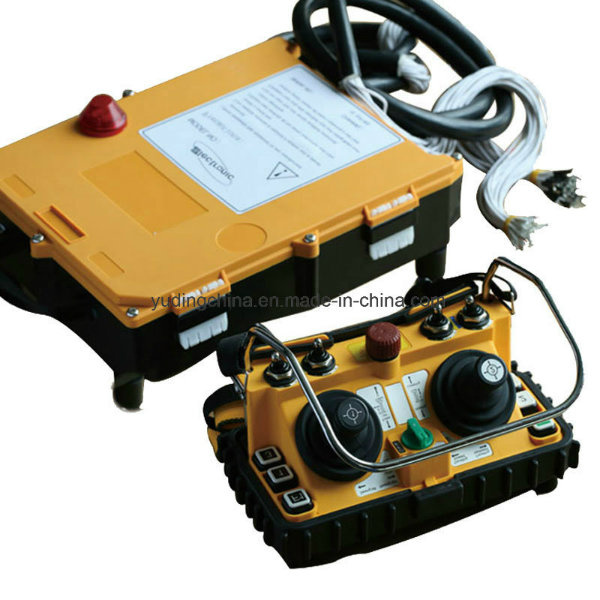

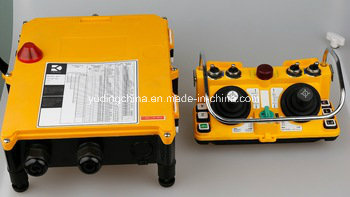

230V Joystick-Control for Crane/Industrial Electronic Joystick Control for Hydraulic Terrain Crane
FEATURES
1. With ratio module,analog signals can be output (additional costs). Ratio output:standard 0-10V
2. 2 five steps of 10 million times mechanical life Pure proportion joystick without fault of poor contact
3. 6 function keys
4. three positions/two positions rotating switches
5. Light weight and neck hanging design for Asian ergonomics
6. With 3 steps battery voltage alarm device, the power is cut off during low power
7. Safety key switch
8. Enhanced watch-dog circuit with automatically stop device
9. Signal search and frequency automatic tracking circuit
10. Prevent power from sudden breaking
11. Programmable relays outputs
12. LED and indicator outputs
13. Variety functions and parameters can be set by computer interface
14. Setting free up to users requirements
Specification:| Model | F24-60-TX-V-(E) |
| TX Size | about 21.5x10.7x9.6cm |
| TX Weight | about 1137g |
| Housing Materail | glass fiber-reinforced nylon-6 |
| Protection Degree | IP65 |
| Temperature Rating | -35°C ~ +85°C |
| TX power Supply | Four 1.5 volts Batteries(AA Size) |
| Number of buttons | 5 single speed buttons,1 START button |
| Button Marking | english + number |
| Joystick | Two 5-steps Joysticks |
| switch | 4 selector switch |
| I.D.Code | 4.3 billion |
| Voltage Warning | TX Red LED will flash slowly when the volts under 4.8V |
| Operating Frequency | 310.0325-331.165MHz |
| Channel Spacing | 0.2675MHz |
| Channel | 80CH |
| RF Power | <=12DBm |
| Fault Detection | TX Red LED is flashing quickly:
1.Not in the correct way to start;
2.One of the pushbutton is jammed.
TX LED will flash slowly:
1.Please change two new batteries |
| RX Model | F24-60-RX-V-(E) |
| RX Size | 36x24x7.7cm |
| RX Weight | about2478g |
| Protection Degree | IP65 |
| Housing Material | glass fiber-reinforced nylon-6 |
| connection diagram | English |
| Temperature Rating | -35°C ~ +85°ºC |
| Power Supply | AC380V,AC36V,AC220V,AC110V,AC48V,AC24V,
AC12V/DC12V,AC380V/AC220V(50-60Hz) |
| Relays | Max 40 Relays control functions(setted by programming tool),
1 relay control EMS |
| Output Relays | 5Amp Omniseal Relays(AC250V/10A Relays ,10Amp fuse) |
| I.D.Code | 4.3 billion |
| Operating Frequency | 310.0325-331.165MHz |
| Channel Spacing | 0.2675MHz |
| Channel | 80CH |
| Sensitivity | >=-110DBm |
| Interface | Cable output |

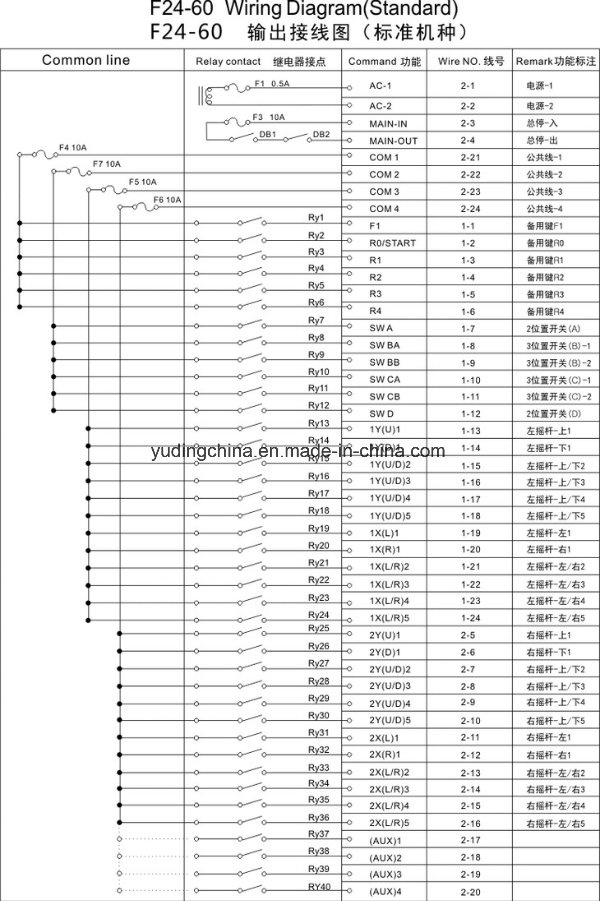

Connection Diagram:
Package
1 set per box, box size: 55x29x25cm

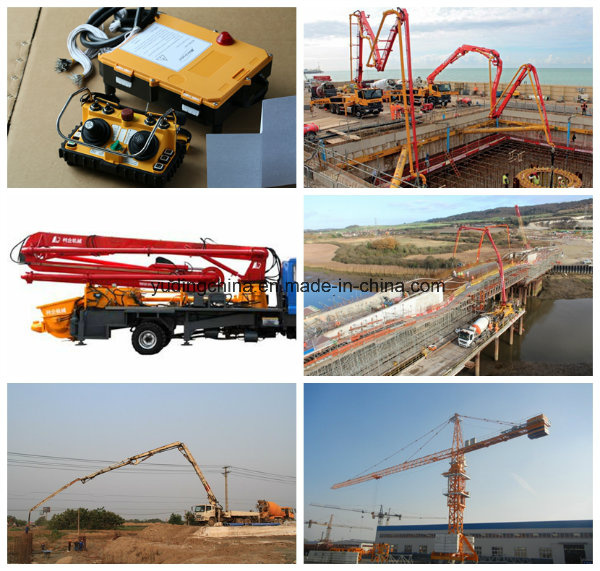

Application:
Lifting equipment,construction machinery,cargo loading/unloading machines.
Water supply system, data transmission, the iron-smelting and steel making.
Bridge equipment, railroad equipment and other equipment and sites which can be worked by radio controls.
Tower crane, concrete pump, hydraulic pump, hydraulic crane, etc
Henan Dirk Electronic Co. Ltd (former Henan Yuding Electronics Crop., Ltd) is an industrial radio remote controls manufacturer in China. Established in August, 2010, With more than 10 years experience on this industrial remote control system business area. Headquartered in Zhengzhou, Henan province. Dirk has so many experts in the industrial radio remote controller area to assure quality and productivity, Dirk are becoming one of the leading companies in this industry in China.
Our main products is: F21 Series radio remote controls, F23 series radio remote controls, F24-60 Dual Joystick radio remote control and explosion-proof remote controls. All these remote controls are easy to operate to keep workers safety and Efficient. All our products are CE & FCC & ISO Certificate.
Quality is company's life. From the raw material testing, manufacturing, aging test and assembly, Each process are operate according to ISO9001: 2008 & international quality control system to guarantee the products quality. Competitive price with excellent quality and good after-sales service make our Internal customers are covered Over 400 cities of 33 countries. We also have built long-term business relationship with the foreign customers.
We here sincerely hope to establish partnership with you and your esteem company.
