| Prod Model: |
EKBT |
| Rated Frequency: |
50/60Hz |
| Packing Type: |
Box |
| Rated Input Volta: |
230V AC |
| Rated Output Voltage: |
12, 16, 24V |
| Rated Power Output: |
8va |
| Consumption: |
0.9W |
| Pollution Class: |
2 |
| Connection Terminals: |
Pillar Terminal with Clamp |
| Service Period: |
Continuous Ope Rating |
| Export Market: |
Global |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Manual Type |
| Speed: |
Normal Type Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Installation: |
Fixed |
| Structure: |
MCB |
| Poles Number: |
1 |
| Certification: |
TUV RoHS |

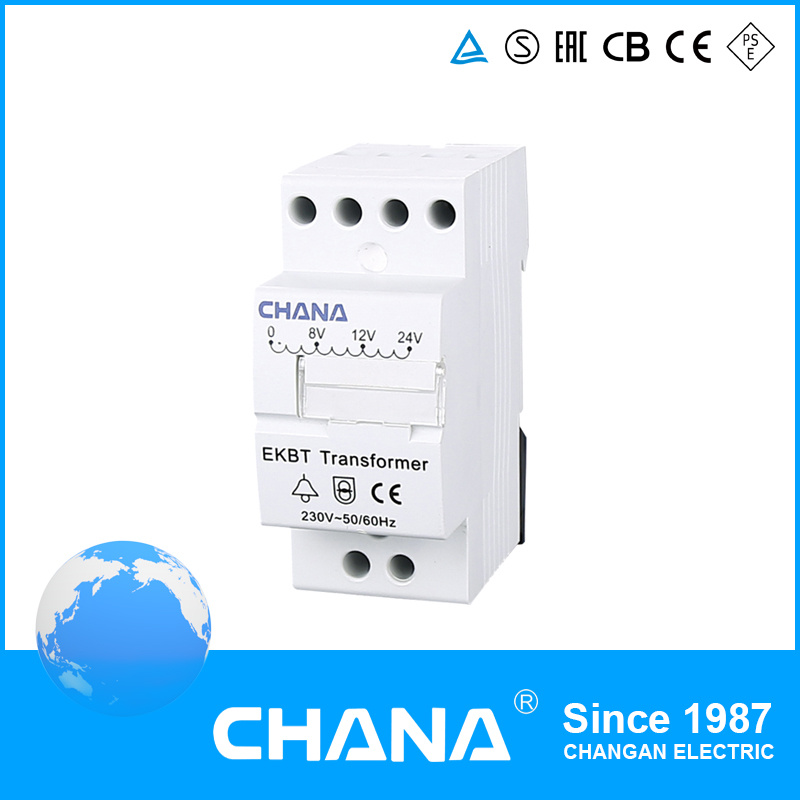

Product Description
1.Application
Applicable to circuit with rated voltage 230V~and rated frequency 50/60Hz,used to power electric bell of extra low voltage.
2.Construction and Feature
Safe electrical separation between primary and secondary circuit
Provides extra low voltage up to 24V
Low temperature rising
High output accuracy
Extra overload capacity up to 25%within 24 hours
3.Technical Data
| Code | EKBT |
| Standard | IEC61095,CE,ROHS |
| Technical Data | Rated input voltage | 230VAC |
| rated output voltage | 8,12,16,24V |
| Rated frequency | 50/60Hz |
| Rated power output | 8VA |
| Consumption | 0.9W |
| Service period | Continuous operating |
| Pollution class | 2 |
| Connection terminals | pillar terminal with clamp |
| Connection capacity | rigid conductor 10mm² |
| Installation | Terminal Connection Height | H=15.5mm |
| On symmetrical DIN rail |
| Panel mounting |
