| Prod Model: |
FP14000 |
| Power: |
2350W*2/8 Ohm |
| Output Power: |
20-20kHz, 1W with 1 kHz |
| Frequency Response: |
20 Hz - 34 kHz |
| Signal-to-Noise Ratio: |
>112 Dba |
| Input Connectors (Per Channel): |
3-Pin XLR, Electronically Balanced |
| Output Connectors (Per Channel): |
Binding Posts 2-Pole |
| Operating Voltage, 230 V / 115 V Nominal: |
130-265 V / 65-135 V |
| Input Impedance: |
20 Kohm |
| Level Adjustment (Per CH.): |
Front-Panel Potentiometer, 31 Position Detented Fr |
| Dimensions (W×h×d): |
483mm*88mm*396mm |
| Type: |
Professional Amplifier |
| Usage: |
Stage, Outside, Shool,Club |
| Used For: |
Professional |
| Tube Type: |
Transistor Amplifier |
| Function: |
Pre-amplifier |
| Element Number: |
Push-Pull Amplifier |
| Sound Channel: |
2.0 |
| Output Number: |
2 |
| Voltage: |
110V-240V |
| Conductive Mode: |
Td |
Product Description
2350W 2 channel linear switching power amplifier (FP14000)Parameters:
Channel number: 2CH
Rated Power 8Ohm stereo: 2350W×2
Rated Power 4Ohm stereo, 4400W×2
Bridge Power 8Ohm: 8800W
Bridge Power 4Ohm: 14000W
THD: <0.1%
S/N ratio: >112dB
Crossover: >70dB
Frequency Response: 20Hz-34KHz
Input impedance: 20Kohm
Gain selecrable: 23, 26, 29, 32, 35, 38, 41, 44dB
Input connector: XLR
Output connector: Binding Posts 2-pole
Output bridge modeL A+B-CH: A is input source, A+B, C+D -CH: A, C is input source
Level adjustment: Front panel potentiometer, from minus infinity to 0db
Amplifier protection: ACL,IGM, AutoRamp, short circuit, DC voltage, turn-on/off transient, current inrush,
sub/ultrasonic inputspecifications:Ac 220v (± 10%) 50-60hz
Net Weight: 12KGS
Product Size (W * H * D): 483×88×396mm
Packing Size (W * H * D):1 560×180×500mm
The transisitors are onsemi transistors.
The resistors are 1% metal film
P+ series switching power amplifier specification | | | | | |
| Item | Fp7000 | Fp9000 | Fp14000 | Fp8000q | Fp10000q |
| Output power | 20-20khz, 1w with 1 khz |
| 8ωstereo power(rms) | 1500wx2 | 1800wx2 | 2350wx2 | 800wx4 | 1350wx4 |
| 4ωstereo power(rms) | 2800wx2 | 3000wx2 | 4400wx2 | 1400wx4 | 2100wx4 |
| 2ωstereo power(rms) | 3500wx2 | 4500wx2 | 7000wx2 | 1600wx4 | 2500wx4 |
| 8ωbridged power(rms) | 5600w | 6000w | 8800w | 2800wx2 | 4200wx2 |
| 4ωbridged power(rms) | 7000w | 9000w | 14000w | 3200wx2 | 5000wx2 |
| Frequency response(+o/-0.3db,1w/8ω) | 20 hz - 34 khz |
| Thd 20 hz - 20 khz for 1 w | <0.1% |
| Signal-to-noise ratio | >112 dba |
| Channel separation (crosstalk) at 1 khz | >70 db |
| Input connectors (per channel) | 3-pin xlr, electronically balanced |
| Output connectors (per channel) | Binding posts 2-pole |
| Class | Td |
| Tourclass protection | Acl,igm, autoramp, short circuit, dc voltage, turn-on/off transient, current inrush, sub/ultrasonic input |
| Operating voltage, 230 v / 115 v nominal | 130-265 v / 65-135 v |
| Voltage gain(db) | 23, 26, 29, 32, 35, 38, 41, 44 db selectable |
| Input impedance | 20 kohm |
| Level adjustment (per ch.) | Front-panel potentiometer, 31 position detented from -inf to 0 db |
| Dimensions (w×h×d) | 483×88×396mm |
| Packing dimension | 560×180×500mm |
| Net weight(kg) | 12 |
| Gross weight(kg) | 15 |
Guangzhou YunQiang Electronics Co., Ltd. is a professional audio manufacturer which has R& D, Production department, Marketing Dept., and Technical and service Dept.,
The main products include: Power Amplifier, Karaoke amplifier, Professional Speaker, Karaoke speaker, Sound Mixer, Audio processor and Conferencing systems.
Nowadays, in professional sound industry, more and more people are seeking for amplifiers with light weight, high power output, high sound quality and high stability.

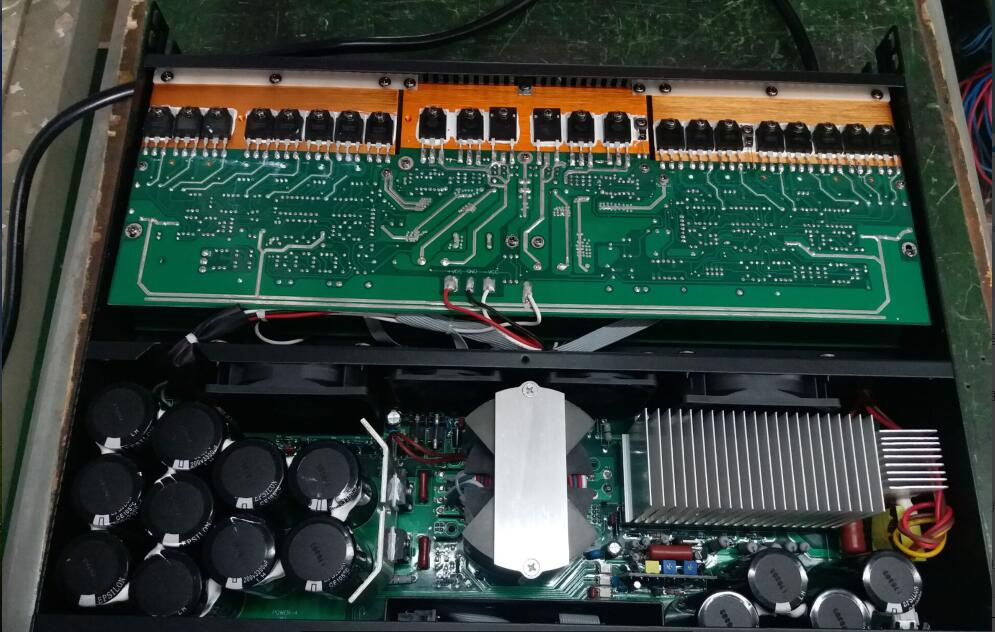

To get good sound quality, we should have high quality components. And to ensure the stability, we must solve the problem of heat dissipation. Now, we have this amplifier FP14000, FP10000Q, FP-8000Q. Our FP14000, FP10000Q, FP-8000Q is Class TD switching amplifier fixed with NOVER (from UK) power capacitors, ON-Semi power transistors other high quality electronic spare parts. Professional circuit design and actual copper heat sink with better structure make fast heat dissipation possible. And fast heat dissipation contributes to high stability of the amplifier. Once you have our amplifiers at your hands, open the chassis, you will find artwork and detail difference. The swich power amplifier can be used to drive line array loudspeaker systems in touring, living show and other applications with high requirement on sound quality and stability.
Since the foundation of our enterprises, we have been concentrating on designing new products, doing research on new sound technology, training our staff, as well as improving our quality to products and management system. And now we have had a unique management experience, advanced production equipment, abundant design capability, and the large marketing network and after-sales service system.
Now we have passed newest CE, FCC, RoHS, SGS, CCC, ISO9001 on March, 2015.
