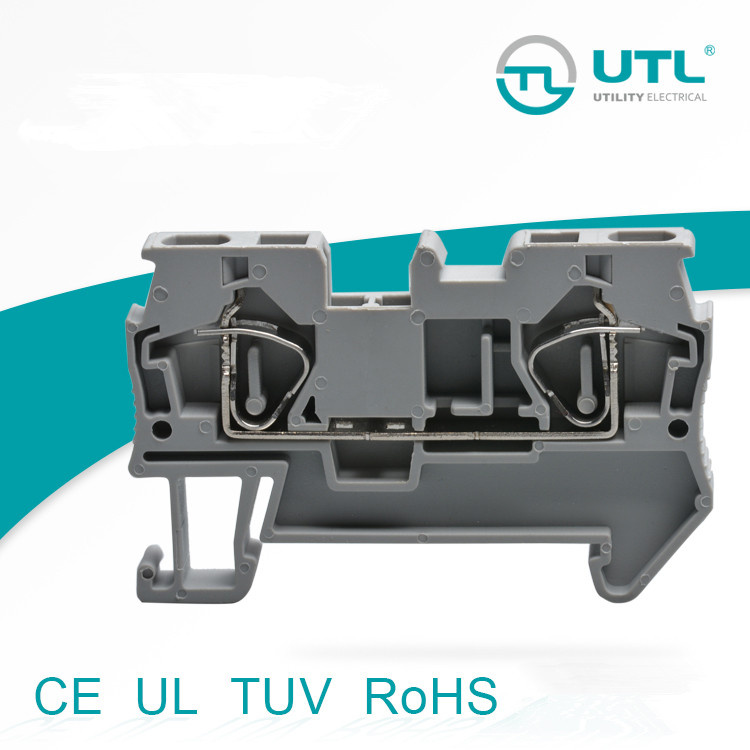

24-10AWG Spring Type High Current Euro Terminal Block

Name: 24-10AWG Spring Type High Current Euro Terminal Block
Brand: all-electronics-online.com
SKU: 720703012
Availability: InStock
Rating: 4.9 (70 reviews)

Price:	US $ 0.01-1/Piece
Min Order:	100/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	JUT3-4
IEC:	60947-7-1
Body Material:	PA66
Body Color:	Grey
AWG:	24-10
Application:	Transmission of Electrical Signals
Type:	DIN Rail Spring Terminal Blocks
Material:	Red Copper
Certification:	Ce ; cUL
Brand:	Utl

Product Description

UTL Hot Products 24-10AWG 2016 Spring Type High Current Euro Terminal Block

Features:
Return-puling type spring termial,which enable quick on U shaped track NS 35-U
Return-pulling spring terminal owns following characteristics:clear mark system,maximum wiring capacity and flexible in sert-pull type bridging component system
Return-pulling type spring terminal connectors wire from upside,and the wire-in mouth of lead is set at the top of terminal,whose advantage is as follow:wire-crossing groove is installed adjacently to terminal row,which can make full use of space of electric cupboard,heighten wiring density,provide good angel for watching wiring position and simplify wiring operation.

Model No.	JUT3-4
Item name	JUT3 Spring Type Terminal Series
Color	Grey as photo,or OEM Color
Size	TH:6.2 W:56.5 H:36.5
Terminal	Return-puling type spring termial,installed on tracks NS35-U type
Rigid/soft Cable	0.5-6.0mm2/0.5-4.05mm2
Conductor Size	24-10AWG
Central adaptor	Used at the center of terminal for transverse bridge connection,and screw head with insulation ring,which is divied into:2-digit,3-digit,5-digit and 10-digit
Voltage rating/Current rating	800V/41A
Payment term	A.Below US$300,western,paypal accepted B.Above US$300,bank account
Certificate	TUV/CE/UL/VDE/RoHS/SGS/CCC/CQC approved standard
Logo	Customized logo are available as request
Design ability	We can supply sample,OEM&ODM is welcome
