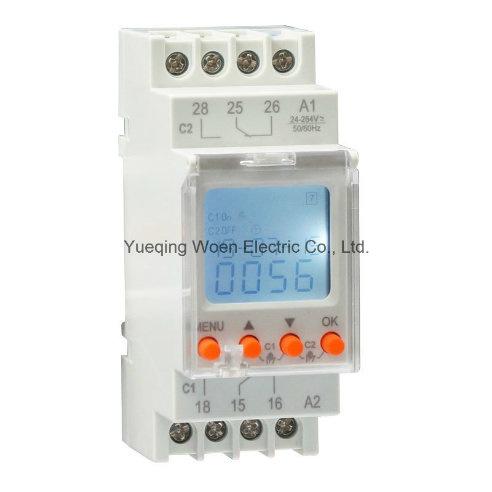

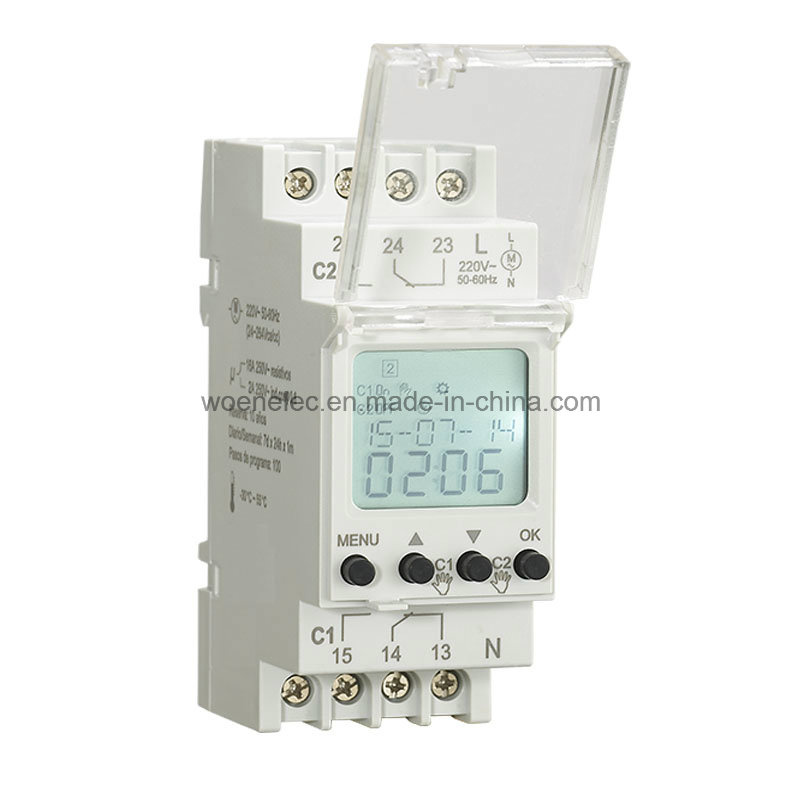

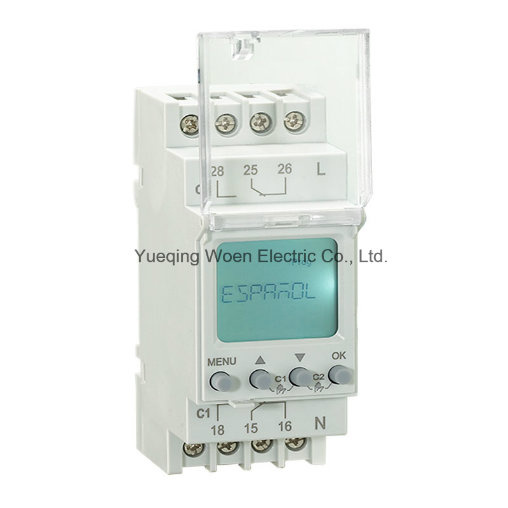

24-264VAC/DC Double Channel Yearly Time Switch

Name: 24-264VAC/DC Double Channel Yearly Time Switch
Brand: all-electronics-online.com
SKU: 714333562
Availability: InStock
Rating: 4.3 (42 reviews)

Price:	US $ 4/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	DTS-1006

Product Description

General
Digital astronomical time switches are intended for realization of time functions in the systems of automatics and steering. Switching on/ off the appliance is connected with sunrise and sunset (dawn an dusk). The information about geographic coordinates, the place of the clocks installation, current date and a shift in relation to the universal time - all these factors are used in order to calculate the time of sunrise and sunset. The system calculates the end of civil dusk. The construction of a casing makes it possible to install the system on a rail TH 35 and possible sealing the appliance with lead. The construction of the system guarantees supporting of all the settings with battery energy when the electric power supply is off.
The device is ideally suited to controlling lighting, heating and other applications where an exact date, hour and minute of switching on is essential.

Features
1.Digital time switch with astronomical and yearly program
2.10years power reserve(lithium battery)
3.80 programs
4.sealable cover of the front panel, easy setting by 4 keys
5.Automatic summer/winter time switchover
6.Backlighted LCD display
7.Holiday mode
8. Random mode
9.Manual control by keys combination
10.Automatic transfer of weekdays
11.2 modules DIN-Rail mounting

Technical data

Model	DTS-1006
Supply terminals	A1-A2
Rated voltage	AC/DC 24-264V ±10%
Rated frequency	50/60Hz
Power consumption	2W
Number of programs	80
Program	Weekly program, yearly, astronomical
Mode of work	Manual,automatic, holiday, random
Summer/winter time	Off, automatic transfer
Time tolerance	≤1s/day at 25ºC
Power reserve	10 year
Data readout	Backlighted LCD display
Number of contacts	2 C/O
Current of contacts	16A/250V AC1
Switching capacity	4000VA/AC1,384W/DC
Mechanical life	10000000
Electrical life	1000000
Protection degree	IP20
Pollution degree	3
Altitude	≤2000m
Mounting	TH-35 Rail
Standard	EN60730-1/EN60730-2-7
