| Prod Model: |
PLD024/032/040/050-1SCF55A(S) |
| Output Power: |
24~50W |
| Dimming: |
0-10V Dimming |
| Usage: |
Construction |
| Output Type: |
Single |
| Driving Method: |
LED Constant Current |
| Circuit Structure: |
PWM Controlled |
| Power Supply Voltage: |
108~305VAC |
| Pack Sealing Size: |
95X70X32 mm |
| Brand: |
Fsp-Powerland |
Product Description

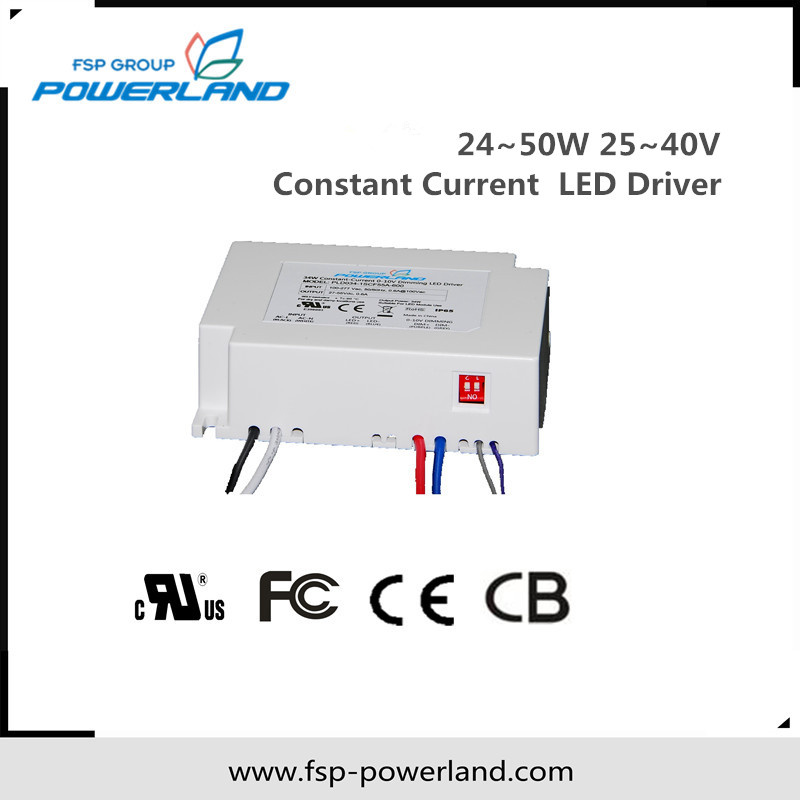

24~50W 25~40V Constant Current LED Driver
Powerland's PLD024/032/040/050-1SCF55A(S) series offers constant current drivers with wide-range dimmable output current and 108~305Vac universal input.
The output current of this series is up to 0.6/0.8/ 1.0/1.2A with DIP switch current setting (AS version), and designed for 0-10V dimming applications
Applications
Indoor LED lights
LED lights with flexible current settings
Downlights, spotlights, LED panels
Features
100,000 hours lifetime at 65oC Tcase
5 years warranty at 50oC Tcase
Constant current output
Output current settable with DIP switches (AS version)
Universal input voltage: 108~305Vac
Safety according to UL8750 &EN61347-2-13
EMC according to FCC Part 15 Class B
Lightning, OVP, SCP, & Open Circuit ProtectionSpecificationsInput
Voltage | Output
Power | Output
Voltage | Output
Current | Efficiency | Max. Case
Temperature | Max. Input
Current | Max. Input
Power | THD | Power
Factor |
| 108~305Vac | 24~50W | 25V
…
40V | 0.6A
…
1.2A | 88% | 90oC | 0.55A | 59W | <20% | >0.95 |
* Based on 25oC ambient temperature, rated input voltage, and full load.
** Refer to Page 2 for detailed specifications for this series of LED drivers.
Electrical Specifications| Model | PLD024-1SCF55-600 | PLD032-1SCF55-800 | PLD040-1SCF55-1000 | PLD050-1SCF55-1200 | PLD050-1SCF55AS-1200 |
Output Voltage | 25~40V | 25~40V | 16~28V | 25~40V | 25~40V |
Output Current | 600mA | 800mA | 1000mA | 1200mA | 600/800/
1000/1200mA |
Current Setting DIP Switches
| NO | NO | NO | NO | Yes
|
Output Power | 24W | 32W | 40W | 50W | 50W |
Max. Current Ripple | ±30% | ±30% | ±30% | ±30% | ±30% |
Voltage Range | 108~305Vac | 108~305Vac | 108~305Vac | 108~305Vac | 108~305Vac |
Frequency Range | 47~63Hz | 47~63Hz | 47~63Hz | 47~63Hz | 47~63Hz |
Max. Input Current @ 230Vac | 0.32A | 0.40A | 0.48A | 0.55A | 0.55A |
Max. Input Power | 32W | 42W | 53W | 59W | 59W |
Power Factor | >0.95 @ 115Vac & 80~100% load, >0.90 @ 277Vac & 80~100% load |
Efficiency | 87% | 87% | 88% | 88% | 88% |
Max. Open Circuit Voltage | 70V | 70V | 70V | 70V | 70V |
THD | <20% @ 120Vac & 80~100% load |
Protections | OVP, OTP, OCP, SCP |
Environmental Protection | UL Dry & Damp |
Working Temperature | -20~+60oC |
Max. Case Temperature | 90oC |
Surge Protection | 1kV |
Agency Approbations | UL8750 |
Electromagnetic Compliance | Per Title 47 CFR Part 15 Class B |
Ansi Surge Type | 1.2/50μs Combination Wave (w/t 2Ω) |
Isolation | Primary to Secondary: 3750Vac / 10mAMax / 60seconds |
Dimension | 95x70x32 mm (3.74x2.76x1.26 inch) |
Mounting Length | 85 mm (3.35 inch) |
Overall Length | 95 mm (3.74 inch) |
Weight | 0.34 kg (0.75 lb) |
Life Time | 100,000 hours @ full load, 65oC Tcase |
* Unless otherwise noted, the data are based on 25oC ambient temperature, 230Vac input voltage, and full load.
Performance Characteristics
Life Time vs. Case Temperature
